Digital Industrial Inkjet Label Printer For Paper, PVC, PET



UV Ink Digital Industrial Inkjet Label Printer For Paper, PVC, PET







---



- ∨ - - ∨ - - ∨ - - ∨ - ★ ☆  Introduction  ☆ ★  - ∨ - - ∨ - - ∨ - - ∨ -



UV Ink Digital Industrial Inkjet Label Printer For Paper, PVC, PET uses top existing high-speed and high-precision industrial on-demand piezoelectric printing head with the accuracy of 600×600 dpi is adopted to achieve high-quality images. The printing speed comes up to 50m/min and the printing head has durable service life.









---



- ∨ - - ∨ - - ∨ - - ∨ - ★ ☆  Printing Area  ☆ ★  - ∨ - - ∨ - - ∨ - - ∨ -



The computer to label digital procedures make it easy to print variable data involving one-dimensional code, QR code, serial number, and dot matrix code, and achieves one standard and one label corresponding to appropriate code, meeting the requirements of anti-counterfeiting traceability orders.









---



- ∨ - - ∨ - - ∨ - - ∨ - ★ ☆  Specification  ☆ ★  - ∨ - - ∨ - - ∨ - - ∨ -

ECOO Label Smart Series
Model	Ecoo Label Smart 108S	Ecoo Label Smart 216S	Ecoo Label Smart 330S
Printing Technology Piezoelectric Inkjet Print Method Roll to Roll, One -Side Color Configuration CMYK, CMYK+W, CMYK+W+W Number Of Channels 6 Maximum Speed 50m/min(600dpix600dpi);25 m/min(600dpix1200dpi) Resolution 600x600 dpi/600 x1200 dpi Ink Type UV Ink Curing Method UV LED Media Width 80-330mm 80-330mm 110-330mm Maximum Print Width 108mm 216mm 324mm Media Thickness 50-400um Media Type PET, BOPP, PE, BOPA PP, Coated paper, Synthetic paper, Art paper, etc Maximum Media Roll Diameter 600 mm Power supply 380V Power 15 kW 15 kW 30kw Compressed air >6.5MPa Air consumption >10L/min Operating environment Temperature: 20℃-27℃, Humidity: 40%-70% relative humidity Skew Adjustment System yes Electrostatic Dust Removal yes Water Cooling System yes















---



- ∨ - - ∨ - - ∨ - - ∨ - ★ ☆  Applications  ☆ ★ - ∨ - - ∨ - - ∨ - - ∨ -



Applicable for label orders with limited quantities, multiple varieties and tight requirement on timeliness.	Applicable for the printing of serial number, one dimensional code, QR code, and others coming with variable information and anti-counterfeiting traceable label.	Applicable for types of personalized qualitative and new products market services developed and invested.

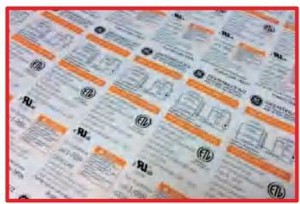

General Labels: beverages, food and medicine, chemical solvent, electronic appliance, transport tickets

Packaging: daily supplies, monofilms (PE/PP/PET/PVC), wrap around labels

Others: jewelry tag, garment tag, variable anti-counterfeiting, folding carton









---



- ∨ - - ∨ - - ∨ - - ∨ - ★ ☆  Other Related  ☆ ★ - ∨ - - ∨ - - ∨ - - ∨ -



The applied ink, printing head and other spare parts are all at very affordable price, to keep the printing cost competitive and rewarding. The patented automatic printing head cleaning and maintenance system(e-clean) technology secures the machine cleaning with low machine damage and ink waste and water treatment and prolonged the life span of the printing head.

Imported UV ink is emitted environmentally friendly without toxicity or voc. The ink is certified by the printing head manufacturer without blocking printing head and with powerful color reproductivity.









---



- ∨ - - ∨ - - ∨ - - ∨ - ★ ☆  Certificates  ☆ ★ - ∨ - - ∨ - - ∨ - - ∨ -













---



- ∨ - - ∨ - - ∨ - - ∨ - ★ ☆  FAQ  ☆ ★ - ∨ - - ∨ - - ∨ - - ∨ -



Q1: What are your main products ?   A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on. You can get the equipment and consumables all in one and no worry about the after-sales service from our company.

Q2: How long is the lead time ?   A: The lead time is normally 30 days. We can accelerate for emergency cases.

Q3: Is there any certification for your machine ?   A: Yes, all our machines have been certified by SGS and CE.

Q4: How long is the warranty period ?   A: Ecoographix guarantees 1 year of warranty for spare parts( except laser heads ).

Q5: What is your normal payment term ?   A: Normally, 30% TT deposit, 70% before shipping, or LC at sight.











ECOO HTC 330 Digital Label Printer Machine
Model	Ecoo HTC 330
Highest Resolution 600*1200dpi / 600*1200dpi Max. print width 324mm Printing speed 50m/min Ink type UV ink Color CMYK+White Substrate type PET/ PVC/ PP/ PE/ BOPP and other mono film materials, synthetic paper, coated paper, aluminum foil and other special materials. Substrate width Max. 350mm Substrate thickness 0.01-0.8mm Feeding Roll to roll Roll diameter Max. 650mm UV curing Composed of 5 sets of LED and a set of 5kw UV lamps and equipped with water-cooled roller to ensure that the material does not deform during final curing and may dry heat-deformable materials including PVC. PET aluminum foil. Input format PDF, JPEG, BMP and other common file formats Dimension 4510mm × 2410mm × 2680mm Weight 3200kg Power Three-phase, 380VAC50/60HZ10KW Air requirements Industrial air source 0.6-0.8Mba, compressed Operating environment Temperature: 16ºC-32ºC, Humidity: 40%-60% relative humidity
