Color Printer Roll To Roll Digital Label Printing Machine
With society's development and the rising demand for product diversification, there is an increasing need for customized labeling. Label printing companies and enterprises are adopting digital label printers to cut printing and time costs. As the labor force for traditional printing machines diminishes, the advantages of digital products, like easy operation and maintenance, are gradually entering the label printing market. This shift is anticipated to gradually replace traditional printing presses. Ecoo Digital Label Printers cater to diverse customer needs with cost-effective printing solutions and competitive pricing.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product Description

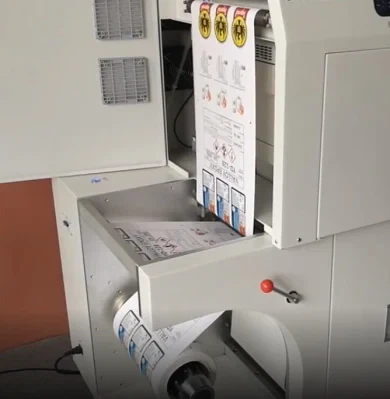

Ecoo Color DLP VP320C DIGITAL LABEL PRINTING
With society's development and the rising demand for product diversification, there is an increasing need for customized labeling. Label printing companies and enterprises are adopting digital label printers to cut printing and time costs. As the labor force for traditional printing machines diminishes, the advantages of digital products, like easy operation and maintenance, are gradually entering the label printing market. This shift is anticipated to gradually replace traditional printing presses. Ecoo Digital Label Printers cater to diverse customer needs with cost-effective printing solutions and competitive pricing.
Software Features:
To guarantee top-notch printing quality, Ecoo has created intuitive and user-friendly printer software tailored for the VP320C. This software boasts a user-friendly interface that is easy to navigate. It supports automatic job editing and integrates smoothly with programmatic printing. Furthermore, the PhaserMatch 5 color management system is integrated into the printing software, enabling users to achieve optimal image quality for labels and complete tasks with ease.
Auto web guide tension system:
1. Precise Tension Adjustment for All Media:
Ensure accurate tension adjustment for all types of media.
2. Automatic Calculation of Feeding Length:
Automatically calculate the length of media feeding.
3. Ultrasonic Media Edge Detection:
Utilize ultrasonic technology to detect media edges and prevent loading twists.
4. Prevent Stretched and Twisted Printing Images:
Ensure printing images are not stretched or twisted.
5. Extend Engine Lifespan:
Increase the engine lifespan for prolonged use.
Specification
| Model | Ecoo-VP320 |
| Print speed | Up to 7.26 meters/min (30ft/min) |
| Print technology | 4 Color (CMYK) LED technology |
| Preparing time | 533MHz |
| Printer processor | less than 28s |
| Data port | (Standard)10BASE-T/100BASE-TX, USB2.0;(Options) internet 1000BASE-T, IEEE1284-B |
| Media width | 304mm |
| Print width | Min 210mm Max 308mm |
| Print length | Max 1200mm Min 98mm |
| Substrate types | Paper: Paper, High glossy paper, Matt paper; Film: PET, PP, PE, GHS.. |
| All of the media was tested in a special environment, not tested media possibly can't be used | |
| Print Quality | 1200x2400dpi |
| Toner supplies | CMY-18500sheets (A4, 5% coverage rate) K-26000 sheets (A4, 5% coverage rate);( Rated according to ISO/IEC 19798 guidelines) |
| Drum supplies | CMYK-100000 (print runs according to the operating cycle, Medium size and the direction to change) |
| Size | 1400*810*1600mm |
| Weight | Print engine:423KGS |
| Operating environment | Temperature:20ºC-23ºC,Humidity: 45-55% RH |
| Power supply | 110-127 VAC,50-60Hz@2800W,220-240 VAC ,50-60Hz@2800W |
| Power consumption | (AC220-240V) sleep 75W;waiting 100W;running 1100W |
| Monthly running job | Max.20000sqm (advice) |
| Warranty | 1 year (excluding high consumable parts) |
Consumables:
Toner K: print 26 sheets A4 with 5% coverage
Toner CMY: print 18.5K sheets A4 with 5% coverage
Drum: 100K sheets A4
Waste box: 300k sheets A4
Transfer cleaner: 200k sheets A4
Transfer roller: 200k sheets A4
Developer CMYK: 480k sheets A4
Developer house: 480k sheets A4
Fuser: 480k sheets A4
Transfer belt Assy: 480k sheets A4
More Details
FAQ
1. What are your main products?
EcooGraphix specializes in providing printing machines and consumables, serving both the digital and offset printing sectors. Our product range includes prepress, pressroom, and post-press solutions, emphasizing packaging and book printing. With a global reach, we support hundreds of users worldwide by delivering high-quality Chinese printing products that meet a wide range of printing needs.
2. Where is your factory?
Our sales office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou, and Nanyang.
3. What is your warranty?
Normally 1 year.
4. Can you also supply the software?
Yes
5. What about the Installation and after-sales technician support?
Our engineers can assist with installation and provide the necessary training. The buyer is responsible for round-trip airfare, service charges, and local accommodation costs. We are available 24/7 to address any problems or questions.
