B1 Offset Press Machine With Spot UV
Multi Color Offset Printing Press is equipped with inline UV spot coating
Plate Size 675x675mm;
Print Colors:1 to 5 ;
Machine Speed:12000s/h
UV spot coating:optional
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

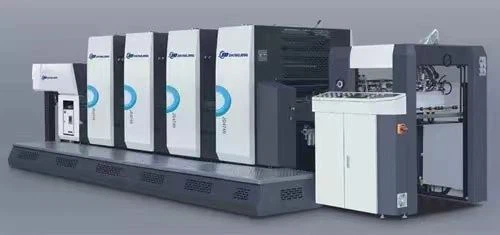

5 Color B1 Offset Sheetfed Printing Press with UV Coating
Instructions:
JD41050 is the B1 size multi-color Sheetfed offset press. It adopts pneumatic automatic plate clamping system, three-axis automatic plate adjusting system controlled by DC permanent magnet, accurate automatic pressure regulating system and bus electric control system of Mitsubishi CC-LINK communication mode.
Perfectly showing the characteristics of dexterity, intelligence and high efficiency of 8up printing press. Stainless steel spraying embossing and printing plate cylinders greatly prolong the service life of the whole machine.
CIP4 can easily form a digital workflow with pre-press CTP and post-press and preset ink quantity and color, thus greatly reducing the dependence of printing enterprises on the experience of printing technicians.
Under certain conditions, through INTERNET monitoring and control of the printing press operating conditions and various parameter changes, the popular UV printing, spot coating and other printing processes, as well as the automatic washing of the blanket cylinder, ink roller, etc. can be easily installed, greatly improving The scalability of product functions.
Model: JD 41050
* The paper delivery mechanism composed of a bottom-swing front guide, a bottom-swing paper hand and a front paper roller ensures sufficient positioning time for the paper and the stability of high-speed paper feeding.
* The printing system composed of a double-diameter impression roller and a double-diameter paper transfer roller is conducive to the printing of thick paper and cardboard; at the same time, it reduces the number of paper handovers and is conducive to accurate overprinting.
* The centrally controlled DC electric plate-drawing plate controls the plate mounting errors in three directions (circumferential, axial, and oblique), which can easily and quickly calibrate the four-color printing plate and reduce printing auxiliary time.
* Pneumatically controlled single clutch pressure system, the clutch pressure is reliable, the distance between the rollers is small, the pressure is stable, and the pressure is easy to adjust.
* The five-roller structure and the alcohol moistening system composed of the moving middle roller can effectively reduce the generation of ghosts, quickly balance ink and water, and reduce the amount of printing paper.
Quick positioning and clamping plate clamp structure, reliable positioning of four-color plate mounting, and short plate mounting and proofreading time.
* The remote-controlled ink fountain composed of 23 partitions can be adjusted through the touch screen of the main console. It has ink volume preset and job storage functions. It can easily retrieve relevant printing information and quickly enter the printing state.
* The transmission side adopts a rain-type lubrication system, which not only lubricates the high-speed rotating gears but also takes away the heat during gear meshing, effectively extending the service life of the machine. And it can automatically alarm when the oil pump is out of oil or the oil pressure is insufficient.

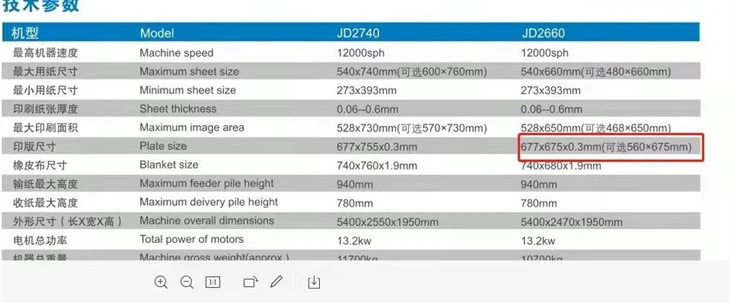

Specifications
B1 Offset Printing Machine
Max. Sheet size(mm) 660X480mm; 740X540mm
Min. Sheet size(mm) 273X393mm; 273X393mm
Paper thickness 0.06-0.6mm; 0.06-0.6mm
Max. Image area 650x468mm; 730X528mm
Plate size 675x675mm; 755x677mm
Blanket size 740x680x1.9mm; 740x760x1.9mm
Max. Feeder pile height 940mm; 940mm
Max. Delivery pile height 780mm; 780mm
Motor power 23kw; 23kw
Machine size 7380×2470×1950mm; 7380×2550×1950mm
Weight 18700kg; 19700kg
Configurations
Double diameter impression and paper transfer cylinder
Semi-automatic plate loading (unloading and loading of four plates for 2 minutes and 40 seconds)
Computer automatic pressure regulation (paper pressure preset)
Computer ink control
CIP3 interface
Radial axial oblique electric plate drawing
Parallel double cylinder pneumatic clutch pressure
Vacuum suction paper conveyor ultrasonic double sheet detection
Ink outlet roller motor direct drive
Electronic powder spraying
Industrial bus (CC-Link) electrical system
High-precision photoelectric punching machine
Stainless steel thermal spraying treatment on the surface of impression and plate cylinder
English version of operation procedure and interface
Export-oriented packaging
Details
|
Feeder: - Conjugated cam. Forwarding mechanism controlled by linear guide rail makes machine speed faster and more stable. - Rotary valve with patent can clean paper dust automatically and reduce the fault.
|
Printing Units: - Both of frame and base are integral casting. -High frequency quenching of gears guarantee transmission accuracy. - Helical gears, high overlap coefficient and low noise.
|
|
Cylinders: - The surface on the impression cylinders and plate cylinders are sprayed stainless steel so as to prolong press life better. - Dynamic balance design can reduce vibration during printing. |
Console: - The press memory or job memory card (disk) can save the current job. Changes and settings made to the current job are transferred to the press. While in printing mode, you can enter the presetting values for next job into the press memory or stored to a disk. - CIP3/CIP4 |
|
Pneumatic Clamp Bar, Change Plate Without Tools: - Tension of clamp bar is controlled by imported hoses and disc springs, so that it is more flexible for operation. - Corners of cylinders are controlled by high precision encoder. Plates will be installed and dismounted by program automatically. Thus it can meet the long version and short version edition of the printing business needs. - The tail of clamp bar is separated, so that it can help paper more smooth. |
Ink Amount Control Console: - Every ink key in every unit can be set by console. - Ink amount can be displayed in digital and can be saved. |
|
Accurate Grippers: - After checkered high strength steel pads had been quenched, their life will be longer and replacement will be more conveniently. - Wear-resistant soft pads ensure stability of paper handover and precision of paper transmission. - High precision needle roller bearings and opening bearings improve stability of gripper system. |
Automatic Device For Adjusting Paper Thickness: - It is equipped with gear driven. Distance between cylinders can be given some feedback to screen by potentiometer automatically. - Permanent magnetic generator driven can ensure stability of printing pressure, because of large torsion and strong self-lock. - It is easier and more convenient to input paper thickness on the screen directly. |
Vacuum Suction Feeder Table: - Imported air pump with large volume. - It is suitable for all paper in any types or size automatically, so as to change paper format more quickly and more easily. - Ultrasonic double-sheet detector can protect cylinders better |

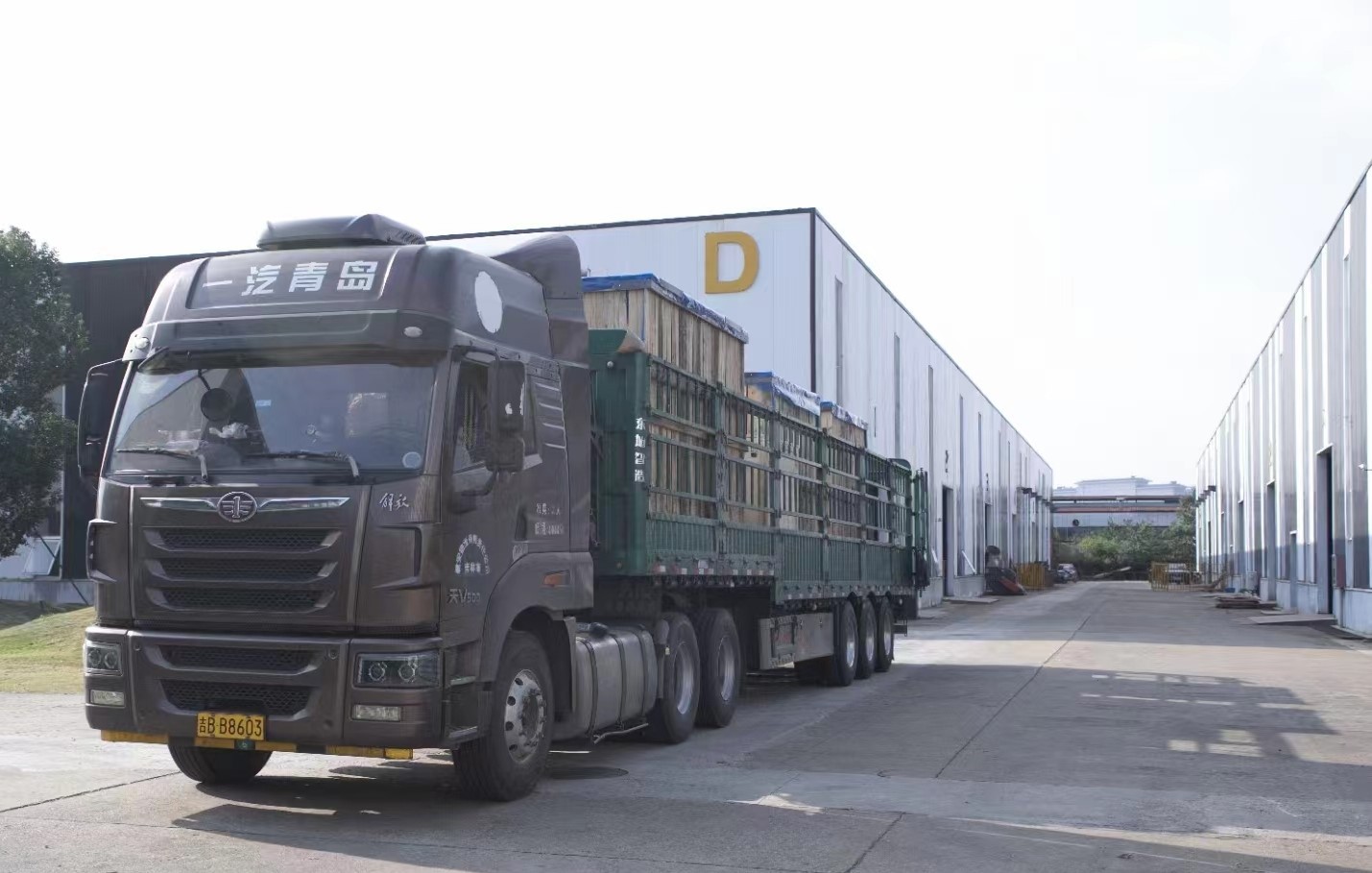

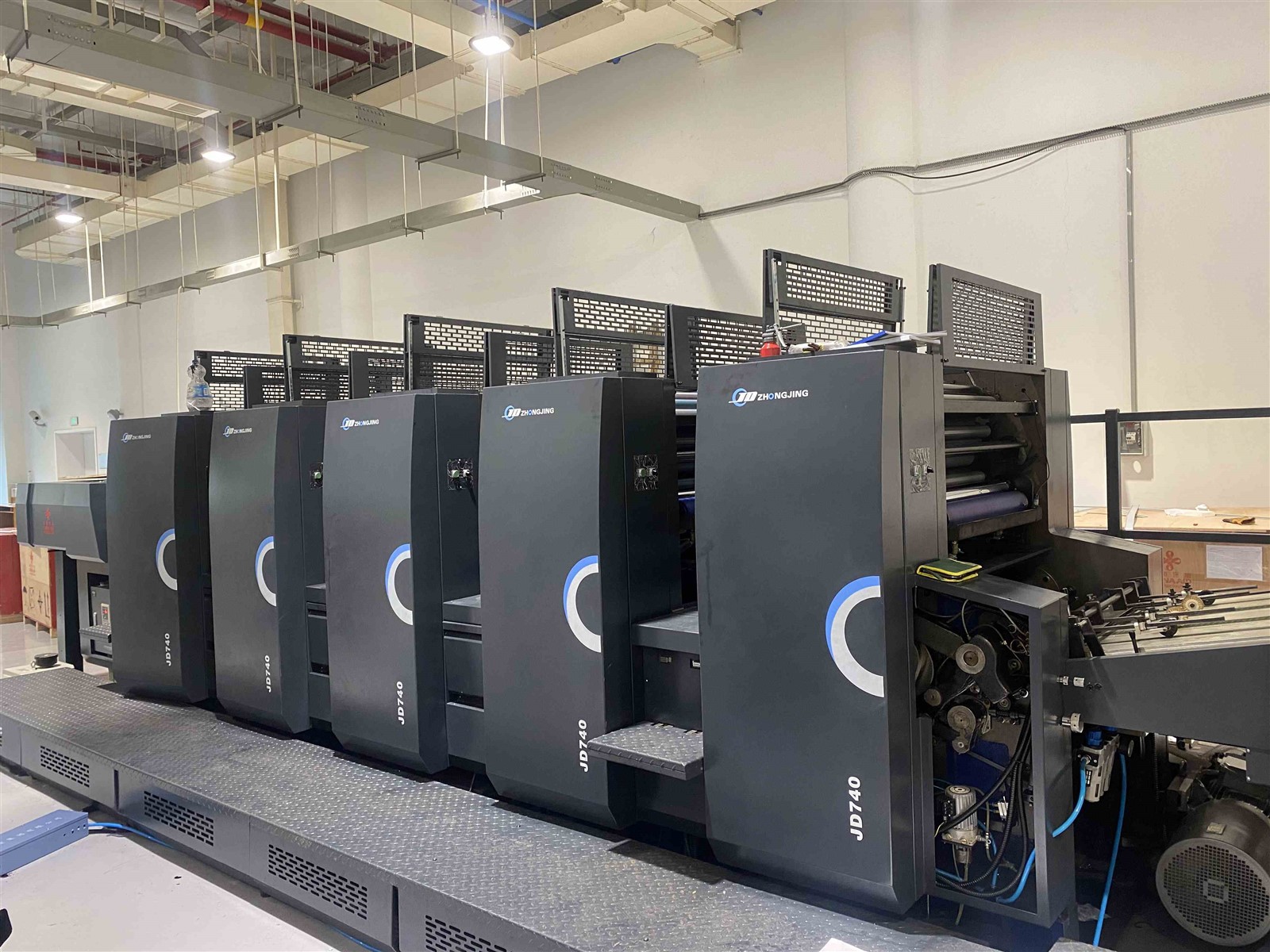

Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
FAQ
Q1: What are your main products ?
A: Our main products are the Prepress CTP, Offset Printing Equipment, Postpress Packing Equipment and Consumables so on.
You can get the equipment and consumables all in one and no worry about the after-sales service from our company.
Q2: Where is your factory ?
A: Our CTP machine factory is in Hangzhou city, you are warmly welcome to visit our factory!
Q3: What is your warranty for the CTPs ?
A: Three years' Laser Head and main spare parts for the CTPs, one year for the Processor.
If the customer uses Ecoographix CTP plate with the CTP machine, we will provide the Lifetime Warranty.
Q4: What about the installation and after-sales technician support ?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
