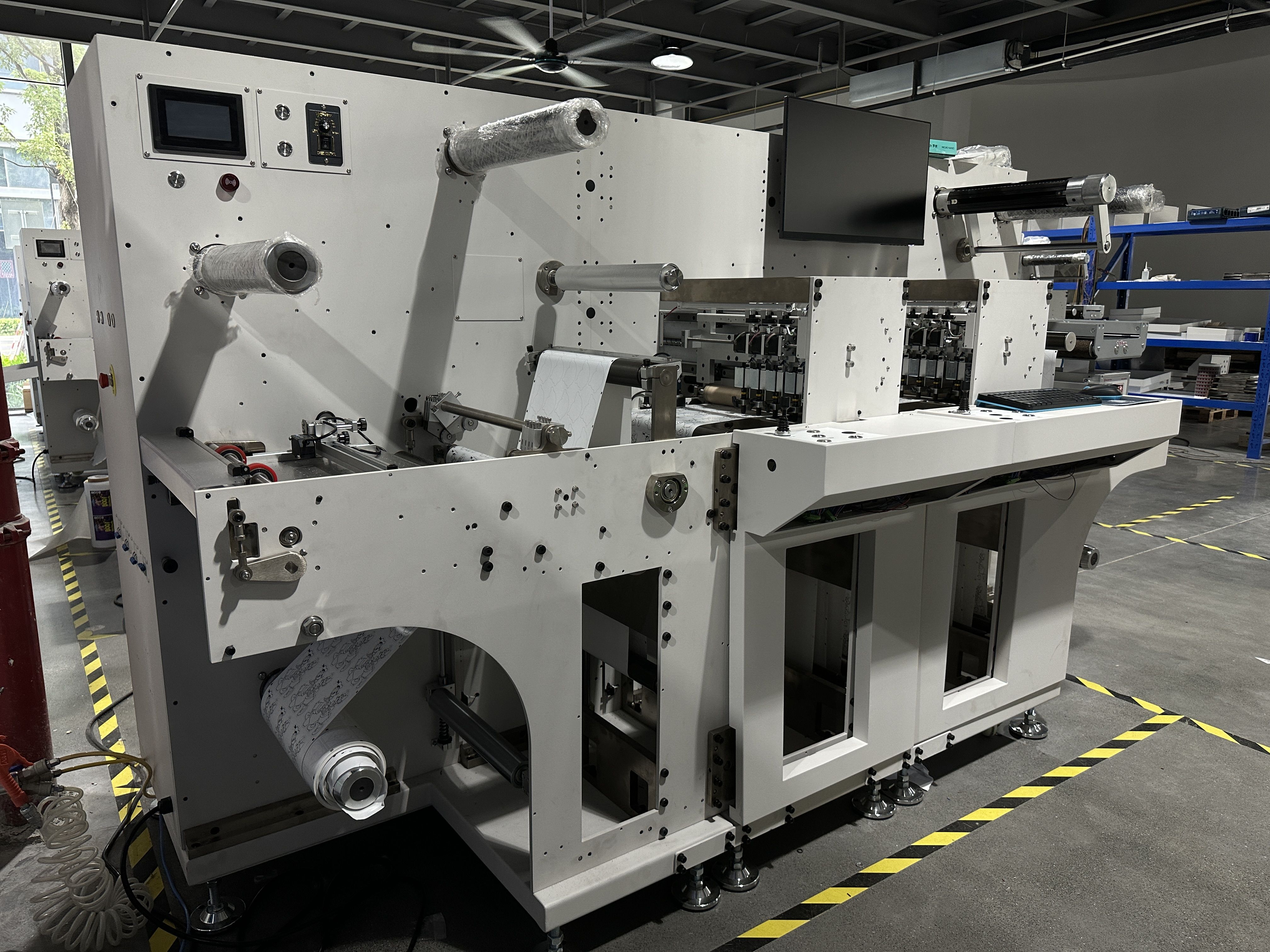

Intelligent Digital Label Cutting Slitting And Rewinding Machine
VD3350 is designed to work with digital inkjet label printing machine. It is an intelligent label slitting and rewinding machine. It can cut label in roll and in sheet. Being all digital and computerized, the machine does not need die or cutting molds. Its highest speed could be 30 m/min and can handle most printing substrates.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Brief introduction and application
VD3350 is designed to work with digital label printing machines. It is fully computer-controlled and can cut any sizes or curves. It does not require cutting die or mould. It can deal with variable data and can do tailer made or complicated designs.
Technical data
| Model | Ecoo-VD3350 |
| Max. media roller | diameter 450mm |
| Cutting media width | 40-350mm |
| Max.label width | 330mm |
| Min.label length | 10mm |
| Max.label length | 600mm |
| Cutting speed | max.9m per minute (depend on label shape and size) |
| Cutting blades | (standard) 4 pcs |
| Slitting blades | (standard 4 pcs ) max.15pcs |
| Cutting tracking | CCD camera |
| Die-cutting technology | with tungsten steel rotary blades |
| Cutting precision | 0.1mm (duplicate) |
| Slitting speed | Max. 100m per minute |
| Slitting width | 10-330mm |
| Slitting precision | 0.1mm |
| Machine size (W*D*H) | 2100*1195*1575CM |
| Machine weight | 1200kg |
| Power | 110-127VAC 50-60HZ, 1000WATTS/220-240VAC 50-60HZ, 1000WATTS |
| Warranty | 1year (besides high consumable parts) |
| Options | Cutting head/Slitting unit/Film back liner removal/Sheet paper cutter |
RFQ
1. what is the lead time?
The production time for this model is around days.
2. How about the consumables for this cutting machine?
The main consumables are the blades, which should be replaced each week.
3. how many blades does this model have?
It depends on the customer's inquiry for speed. The standard configuration is one group of 4 pcs of blades. The max speed 30 m/min will require 3 groups of blades.
4. is it flatbed or roll cutting?
Actually, it is not flatbed cutting nor roll cutting. It is digital cutting. The blades look like needles and cut in any curves. It is totally computerized.
