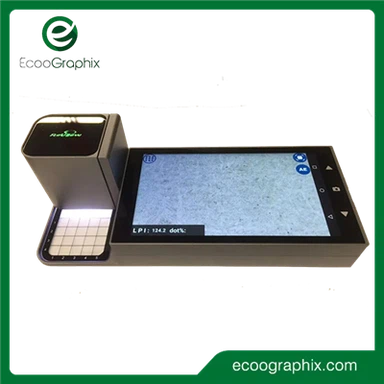

EcooGraphix Dot Densitometer For CTP Plate Offset Printing
The RePlate is specifically designed for detecting dots on offset printing aluminum plates, similar to ICplate2. These dots are fundamental to reproducing the colors and details of printed products. As the smallest units that absorb ink in offset printing, dots reflect the hue, gradation, and tone of the original source. The RePlate employs advanced technology to accurately detect and analyze these dots, ensuring precise replication of images during the printing process.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Offset Printing Plate Dot Densitometer
Brief Introduction
Dots are pivotal in the printing sector, forming the bedrock of color reproduction and image fidelity. As the smallest units absorbing ink in offset printing, they mirror the original source's hue, gradation, and tone.
Alterations in dot characteristics can give rise to a multitude of issues in printed materials, including sharpness, gradation, hue, contrast, ink density, and black overprint. To combat these challenges, cutting-edge dot measurement technology is employed to monitor and regulate plate quality and dot performance.
This technology accommodates various screening methods, such as amplitude screening, frequency modulation screening, specialized screening, and hybrid screening, ensuring precise and consistent printing outcomes across diverse printing processes.
Specification
Model
ECOO Densitometer
Magnification
5-200
Screen
720P HD LCD touchable screen
Operation system
Android 5.0
Digital zoom
2
Image format
BMP
Net weight
300g
Set weight
500g
Image size
1280*720
Lighting White light
LTD*8pcs
Measuring time
1 s
Repeatability
±0.02 D(density), ±1%(dot area)
Interface Micro
USB 2.0, HDMI
Storage
16GB
ROM
2GB
Battery capability
3200mAh
Battery type
Rechargeable lithium battery
Network
WIFI
Dimension
185*70*55 mm
Sensor
CMSO 1.3 megapixel
Features
1. Incorporating an Android system, facilitates functions like photo capturing, data measurement, saving, and Wi-Fi connectivity.
2. Showcases a 720P high-resolution touch-screen, ensuring precise visualization of print image dots.
3. Features an auto-focusing camera enabling a seamless transition between two distinct magnification levels for accurate representation.
4. Harnesses advanced image processing technology, guaranteeing precision in data measurement.
5. Provides eight integrated measurement tools, catering not only to dot percentage and image screening measurement but also capable of assessing length, angle, area, and beyond.
Main Functions:
- Dot Percentage Measurement
- Screening Measurement
- Screening Angle Measurement
- Dot Size Measurement
- Line Distance Measurement
- Angle Measurement
Additional Functions:
- View Pressed Dot
- Save Pictures to SD Card
- USB 2.0 Connectivity to PC
Production and Packaging
From production to delivery, we meticulously attend to every detail to ensure exceptional product quality and service for our customers.
\
FAQ
1. Do you offer additional products to complement your offerings for certain end-users?
Yes, we offer a comprehensive range of prepress and post-press solutions for offset printing, including CTP/CTCP plates at highly competitive prices. Additionally, our product line includes blankets, ink, developers, processors, cutting machines, and binding machines.
2. What are your standard payment terms?
Our standard payment terms require 100% advance payment via bank transfer (TT).
3. What is your typical lead time?
Our typical lead time ranges from 7 to 10 days, and we strive to accommodate your specific requirements to the best of our ability.
