Label Printing Flexo CTP Machine
EcooGraphix Flexo CTP machine is used for Label, Trade Mark or Package Printing. It can expose the Heat corrosive film, Digital relief printing plate (water-wash), Digital flexo plate (water-wash), Digital flexo plate (solvent based), or Thermal PS plate and so on.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

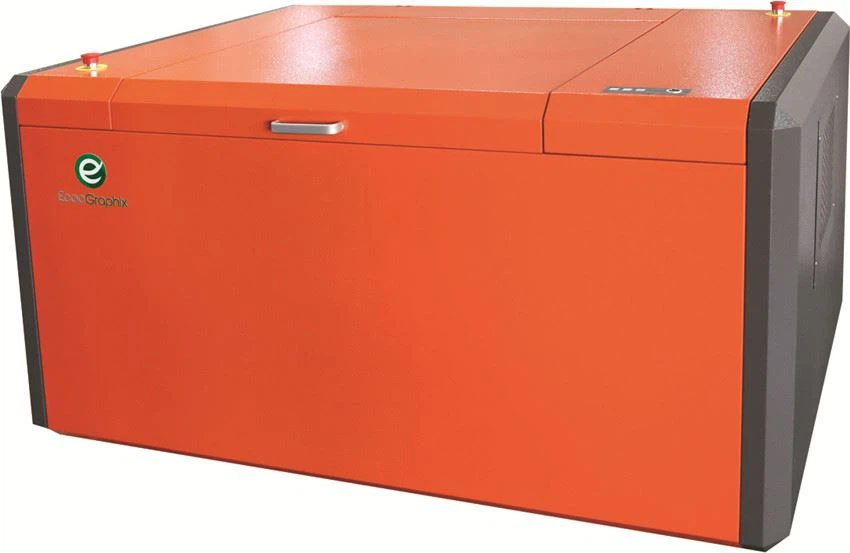

EcooGraphix Prepress Flexographics CTP Plate Machine
1.Application
EcooGraphix Flexo CTP machine is used for Label, Trade Mark or Package Printing. It can expose the Heat corrosive film, Digital relief printing plate (water-wash), Digital flexo plate (water-wash), Digital flexo plate (solvent based), or Thermal PS plate and so on.
2.Characteristic
1)Easy to use :
After placing plate, the only step you need to do is to press a button to finish the plate loading within seconds.
2)Automatic Focusing :The machine can be used for different thickness plate from 0.15mm to 1.7mm. Dynamic autofocus system keeps accurate focus constantly to ensure sharp dot.
3)Auto balance system of drum takes no more than 5 seconds to adjust drum balance block to a position, make the drum stable in high speed rotation.
4)Auto switch of laser channel: When any laser channels breaks down, laser channel auto switch system can continue output through the longest consecutive channel that remains working to ensure non-stop production.
5)Linear motor : More accurate, more simple and more reliable.
6)Long lifetime and warranty of spare parts: Laser Lifetime:>10000h
3.Specification
Model | FL400 | FL600E(EM) | FL600S(SM) |
Laser Channel 16-channel 16-channel 32-channel | |||
Output Speed 1.25m2/h 1.25m2/h 2.5m2/h | |||
Max. Breadth 430mm x 330mm 680mm x 430mm 800mm x 660mm | |||
Plate Thickness 0.14mm – 1.14mm 0.15mm – 1.7mm 0.15mm – 1.7mm | |||
Laser Power High power semiconductor laser diode | |||
Plate Type Digital relief flexo plate(water-wash), Digital flexo plate (water-wash), Digital flexo plate (solvent-wash) Steel based digital plates (Water/alcohol washable) are applied for EM/SM series | |||
Application Label and trademark | |||
Resolutions 4000dpi | |||
Plate Loading Manual load and unload | |||
Interface USB2.0 | |||
Focus adjustment Dynamic auto-focus | |||
Device Size mm(WxDxH) | 830x630x1030 1087x770x1000 1087x770x1000 | ||
Net Weight | 280KGS 400KGS 400KGS | ||
Power | 220V/50Hz, 60Hz, mainframe 0.6KW+Vacuum 1.5KW | ||
Environment | Recommended temperature: 18-30℃ Humidity: 10%-80% | ||
Model | FL800E FL800S | FL1500 |
Laser Channel | 16-channel 32-channel | 32-channel |
Output Speed | 1.25m2/h 2.5m2/h | 1.8-2.0m2/h |
Max. Breadth | 800mm x 660mm 800mm x 660mm | 1524mm x 1067mm |
Plate Thickness | 0.15mm – 1.7mm 0.15mm – 1.7mm | 0.95mm – 3.84mm |
Laser Power | High power semiconductor laser diode | Light Valve laser |
Plate Type | Digital relief flexo plate(water-wash), Digital flexo plate (water-wash), Digital flexo plate (solvent-wash) Steel based digital plates (Water/alcohol washable) | Digital flexo plate(water-wash and solvent-wash) |
Application | Label and trademark | trademark |
Resolutions | 4000dpi | 2540 or5080 dpi |
Plate Loading | Manual load and unload | Manual load and unload |
Interface | USB2.0 | USB2.0 |
Focus adjust | Dynamic auto-focus | Dynamic auto-focus |
Device Size mm(WxDxH) | 1630x1170x965 1630x1170x965 | 2410x1240x1120 |
Net Weight | 800KGS 800KGS | 1300KGS |
Power | 220V/50Hz, 60Hz, mainframe 0.6KW+Vacuum 1.1KW | |
Environment | Recommended temperature: 18-30℃ Humidity: 10%-80% | |
