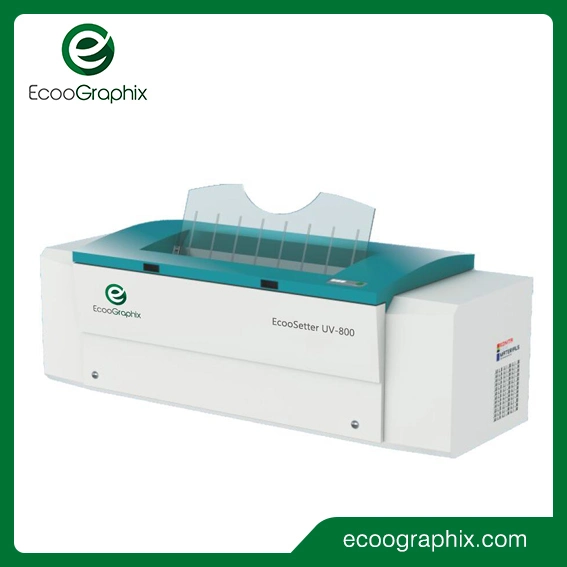

High Speed UV Platesetter CTP Machine



The characteristics listed represent advanced technological features designed to enhance the precision, efficiency, and reliability of a laser-based system, likely used in applications such as laser engraving, cutting, or marking. Here's an elaboration on each feature:



Dynamic Autofocus:

---

This feature ensures that the laser beam maintains optimal focus on the material surface, even if the material is uneven or varies in thickness. By dynamically adjusting the focal point in real-time, the system guarantees consistent precision and high-quality results across different materials and surfaces. This is particularly useful for applications requiring fine details or working with irregularly shaped objects.





Fast Balance Auto Switch of Laser Beam:

---

This capability allows the system to automatically and swiftly switch the laser beam between different power levels or focal points, depending on the task at hand. For example, it can alternate between high-power cutting and low-power engraving without manual intervention. This ensures seamless transitions, reduces processing time, and improves overall efficiency.





Auto Constant Thermostatic of Laser Chassis:

---

The laser chassis is equipped with an automatic temperature control system that maintains a constant temperature during operation. This prevents overheating, which can affect the laser's performance and lifespan. By ensuring thermal stability, the system delivers consistent results and minimizes downtime caused by thermal fluctuations.





Technology of DDS Frequency Multiplication and Drum Auto Balance:

---

DDS (Direct Digital Synthesis) frequency multiplication technology enhances the precision and stability of the laser's frequency control, resulting in smoother and more accurate laser operations. Combined with drum auto balance, this feature ensures that the rotating components of the system (such as the laser drum) remain perfectly balanced during high-speed operations. This reduces vibrations, minimizes wear and tear, and improves the overall quality of the output.





Accurate Graphic Size Calibration:

---

This feature ensures that the dimensions of the graphics or designs being processed by the laser are precisely calibrated to match the intended specifications. It eliminates errors caused by scaling issues or misalignment, ensuring that the final product meets exact size requirements. This is particularly important for applications requiring high precision, such as industrial manufacturing or intricate artistic designs.

Together, these characteristics make the system highly advanced, user-friendly, and capable of delivering exceptional performance across a wide range of applications. They highlight the integration of automation, precision engineering, and thermal management to achieve superior results.

Specifications:

---



Plate Sizes	Max.1130mm x 920mm Min.260mm x 300mm
Exposing Size	Max.1130mm x 884mm Min.260mm x 284mm
Media Type	positive UV-CTP/CTCP plate or high sensitive PS plate
Plate Thickness	0.14mm to 0.30mm
Resolution	2400dpi
Repeatability	±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23℃ and humidity of 60%)
Interface	USB 2.0
Plate Loading	semi automatic
Net Weight	900kg
Machine Size (WxLxH)mm	2530x1050x950
Power Supply	single phase: 220AC,+ 6%,- 10%, power Consumption:4KW
Operation Environment	recommended: 21-25℃, Max.18-26℃, humidity: 40-70%







Delivery & Package

---

Any kinds of transpotation is workable for us. The nearest departure port is Shanghai port or Ningbo Port.
The equipment is packed in standard wood carton for exporting use with enough protective layers.
