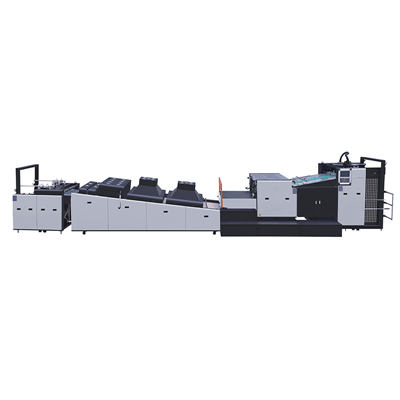

Coating-760 Automatic Spot UV Coating Machine
The spot uv coating machine Ecoo coating-760 is a new coating equipment with excellent performance, which integrates the advanced technologies at home and abroad. It can both spot and overall coating, and has the advantages of high working speed, high gloss, thin and uniform coating layer. It is widely used in packaging decoration, book cover and other printing materials.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product Overview
Ecoo coating-760 Automatic Spot UV Coating Machine
The automatic spot uv coating machine SJUV-760 is a new coating equipment with excellent performance, which integrates the
advanced technologies at home and abroad. It can both local and overall coating, and has the advantages of high working speed,
high gloss, thin and uniform coating layer. It is widely used in packaging decoration, book cover and other printing materials.
Features at a glance
•High adaptability
•Non-stop feeder and stacker
•Full uv & spot uv coating
•Easy to operate
•Enclosed scraper•One year free warranty
Product Specification
|
Model |
Ecoo coating-760 |
|
Max.sheet size |
760x595mm |
|
MIN.sheet size |
290X270mm |
|
Sheet weight |
80-400gsm |
|
Production speed |
6000 sheet/h |
|
Power |
45kw |
|
UV lamp |
3 pcs x 8 kw |
|
IR lamp |
18 pcs x 1 kw |
|
Paper feed heigh |
1050mm |
|
Paper stack height |
920mm |
|
Weight |
65000kg |
|
Dimension |
9500x2050x2000mm |
Product Configuration
· Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically.
· Automatic paper feeding system is equipped with no paper protector and paper break protector, which are controlled by
photoelectric and mechanical systems. When no paper or paper break occurs, the machine will stop automatically for
self-protection.
· Conveying table is furnished with air aspirator and front lay etc. to guarantee paper conveying and overlap stable and regular.
· High precision of chrome plated heating roller is equipped with oil circulation heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
· Pneumatic pressuring system provides automatically steady pressure to guarantee good laminating quality. The pressure is adjustable upon applications.
· Air expansion shaft releases film, and precisionizes film release, and also makes the loading and unloading of film roll more convenient.
· The combination of air expansion shaft and braking device can adjust film release tension and speed.
· Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
· Film perforating wheel perforates film edge for the automatic cut of laminated paper.
· Anti-curvature device: when going through the anti-curvature device, the laminated paper shall be leveled at once and won't curve again after cut.
· Pneumatic cutting system realizes automatic paper cut.
· Auto paper collector equipped with pat device stacks and tidies up cut paper. Patting frequency of pat device is adjustable.
