Digital Textile Sublimation Inkjet Tshirt Printing Machine

Digital Textile Sublimation Inkjet Tshirt Printing Machine

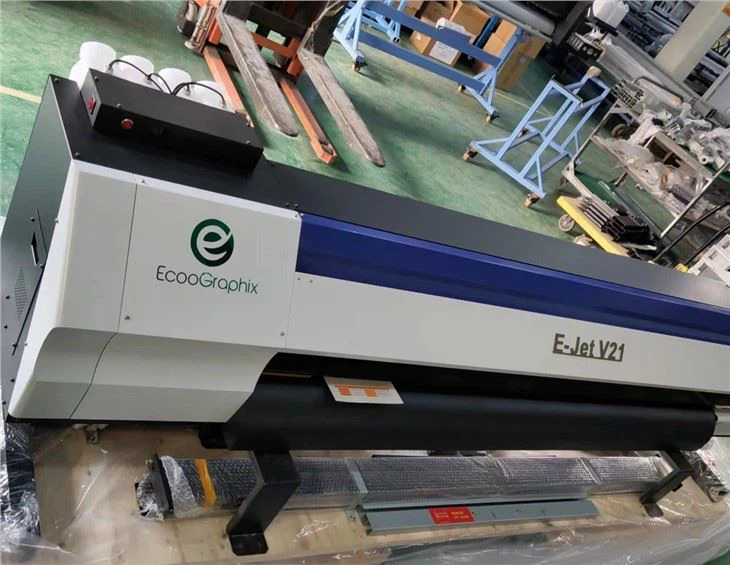

Ecoo - E-Jet V21 is used to print the disperse lifting dye on a special migration printing paper to generate a pattern design.By the dual EPSON I3200-A1 print heads (Nozzle Quantity 3200).

Send Inquiry

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

Digital Textile Sublimation Inkjet Tshirt Printing Machine

The digital inkjet printer is used to print the disperse lifting dye on a special migration printing paper to generate a pattern design; then according to the lamination process, the migration printing paper and the textile fabric are pressed and migrated, and the dye is transferred to the paper by a high temperature gaseous method. onto textile fabrics.

Because the printing pattern is first printed on the smooth printing paper, the process has the characteristics of bright colors and sharp pattern design, and no steaming, water cleaning and other technological processes are required after printing. simple to use and environmental friendly.

High-resolution Digital Textile Sublimation Printer
Model	E-Jet V21
Resolution & Speed	High quality model (6 pass): 1800 x 720dpi 30m²/hr Production model (4 pass): 1200 x 720dpi 45m²/hr High speed model (2 pass): 600x 720dpi 95m²/hr
Media Transfer	Auto Taking-Up Media Device
Inks	Double four color (CMYK), apply for water-base and dye sublimation ink
Rip	Maintop5.3/Photoprint10.5/Onyx
Format Dimension	2895L x 840W x 1490H (mm)
Print head	Dual EPSON I3200-A1 print heads (Nozzle Quantity 3200) Auto suck ink, ink suck protect system
Head Moisture Method	Auto Head Cleaning and Moisturize
Media	Modalities: Roll to roll media Specifications: Max width 1900mm, unlimited length Classification: Banner, sublimation paper, PE, PP, ABS, PU, Vinyl
Print format	PDF, PS, EPS, TIFF, AL etc. (RGB/CMYK)
Power Supply	210-230V, 50/60HZ, 16A Print Power: 1000W Dryer Power: Max.3500W
Environment power	Temperature: 18-30℃ ;Humidity: 35-70%RH ; Gross power: 3.6KW
Weight	289KG

Application:

digital printing of home textiles, personalized fashion printing, underwear printing, Curtain,Tshirt,Down Coat etc.

Features:

1. Adopt new integrative Automatic cleaning and moisturizing ink stack modules

2. Dislocation arrangement the car base plate

3. 5113 , 3, 2pass,up to 120 m2/h

4. Gigabit network data transfer port, meet the stability and transfer rate for Hd screen output

5. Imported parts: THK Supermute guide, Japan NSK Bearings, Germany's eigers chain, Ray plug servo brushless integrated motor

6. Automatic tension collector, Quickly receive. Automatic test paper, Scratch-resistant paper, consumable edge warp, Automatic-stop print , prevent spray head.

7, Equipped with constant tension taking-up system with imported motor, which ensures that media taking-up tension is constant and stable from beginning to end, excellent

taking-up effect can be achieved

ECOO Heat Transfer Machine Machine Specifications
Model	Ecoo-1900-600
Max printing width	1900mm
Roller diameter	600mm
Printing Speed	100-160m/h
Temperature Range	0-399℃ (Automatic thermostatic control)
Heating time	60min
Heating tubes	30pcs
Working table	2.5 M
Machine size	2750mm x 1450mm x 1530mm
Machine color	red and white
Power	36kw Max AC: 55A
Voltage	3 Phase 380V AC 50-60Hz
Weight	2100 KGS

Features：

1. Three inputting, two rewinding

2. Assist type correcting function by hand operated - control deviation on the conveyer belt

3. Double layer drum with conductive oil device

4. Emergency stop device

5. Aluminum alloy motor, Speed controller with inverter, Thermal oil temperature transfer, Stainless steel heating system, Crawler conveyor, Air operated pressure equipment

6. This machine is suitable for transfer print of multitudinous rolling fabrics and cutting sheets, with pneumatic pressure system and made the color more bright after transferred.
