Paper Box Window Patching Machine
Ecoo TC-1100,TC-1000 automatic Carton window patching machines are special equipment for carton box, color box window lamination for both cardboard and corrugated paper; The machines are widely used in the film patching to be package with or without the window of the wine box, gift box, tissue paper box, cosmetic box etc. It can also realize the function of the paper gluing, film patching, film cutting and paper collection before folding boxes. TC1000 is single lane, TC1100 is double lane.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Paper Box Window Patching Film Gluing Machine
1. Application
Ecoo TC-1100,TC-1000 automatic Carton window patching machines are special equipment for carton box, color box window lamination for both cardboard and corrugated paper;

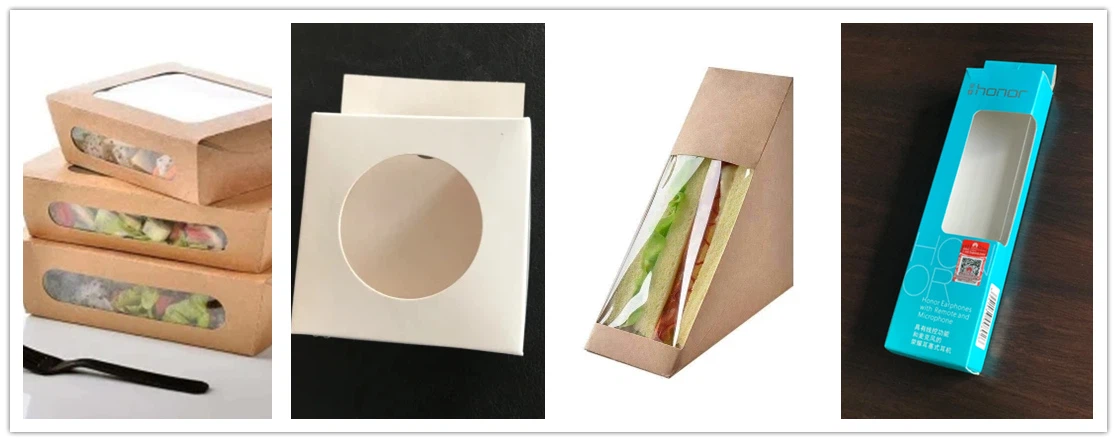

The machines are widely used in the film patching to be package with or without the window of the wine box, gift box, tissue paper box, cosmetic box etc. It can also realize the function of the paper gluing, film patching, film cutting and paper collection before folding boxes.
TC1000 is single lane, TC1100 is double lane.
2.Main features:
1) Fully automatic with high speed.
2) The gluing section can be pulled out easily for setting and cleaning.
3)Ceasing section is equipped with independent heating wheels for creasing.
4)Equipped with lower belt feeding system, with the choice of option which is piling lifting system and belt lifting system.
5)Boxes are delivered from the gluing section to the window patching section by suction.
Suction is run individually and registered by sensor.
The knife cylinder is with adjustable blowing or suction system to ensure the plastic film is
patched on the window of the box accurately .
6)The belt at the delivery section is wide. Operator can adjust the height of the belt and the finished products are aligned in a straight line
3.Film material:
Applicable to PET, PVC, PP, OPP, PE, Asha and even paper.
It can also be used for films with special effects such as light film, dumb film, flash film, colored film, printed film, UV filter film and fluorescent film.
4.Technical Specifications:
Specifications | ||||
Model | Ecoo-TC1100 | Ecoo-TC1000 | ||
The producting style | 2-lane operation | 1-lane operation | ||
Length A of the blank paper | 100mm-900mm | 100mm-420mm | ||
Width B of the blank paper | 80mm-530mm | 100mm-750mm | ||
Length window/lining material C | 80mm-760mm | 80mm-280mm | ||
Width window/lining material C | 30mm-380mm | 30mm-550mm | ||
Speed of the machine | ≤400pcs/min | ≤200pcs/min | ||
Carton weight | ||||
Carton | 180g/m2-600g/m2 | |||
Corrugated | ≤1.5mm | |||
Film thickness | ||||
PVC, PE, PS | 0.05mm-0.3mm | |||
PET | 0.05mm-0.2mm | |||
Outer diameter | ≤500mm | |||
Inner diameter | 70mm-80mm | |||
The size of the machine | 5600(L)x2000(W)x1500(H)mm | 4800(L)x1600(W)x1500(H)mm | ||
Main motor power | 4kw | |||
Total power | 22kw | |||
1. Sizing Part(gluing):
The Gluing Section consists of the chrome-plated glue roller, glue separation plate, side guide and glue mould roller.
The glue separation plate is adjustable to control the glue area and amount.
In case of the machine shutdown, the cylinder will lift the glue roller and then the machine will be driven by the other separate motor ,to avoid the leaking of the glue.
Option of pre-make ready table is available, Operator can set up the mould outside of the machine. It’s convenient and time saving.
2. Creasing Corner Section
Creasing section is equipped with independent heating wheels for creasing.
There is an independent cylinder heated by oil to flatten the curved plastic film
Equipped with corner cutting system controlled by servo to make the plastic film smooth
Equipped with micro-adjustment system
3.Feeder part (paper feeding)
The machine is equipped with servo feeder, with the choice of option which is pilling lifting system and belt lifting system.
The feeding belt can be run continuously while boxes can go through the upward/downward movable pilling lifting system. This pilling lifting system is flexible in capable of feeding different boxes without scratching the boxes.
The feeding system design is an advance technology. Synchronous belt feeder is equipped with suction system. At the chain adjusting section there are four feeding chains.
There is a feeding gate at the feeder which allows you to adjust upper rail without additional tool. This upper rail is made of flat steel and is connected to the middle part of the frame.
Even when there is serious jam, the position is precise and you can use micro-adjustment to adjust.
4.Window patching part
Boxes are delivered from the gluing section to the window patching section by suction.
Suction is run individually and registered by sensor. When there is blank sheet, the suction table will go down to avoid sticking of glue on the belt.Operator can adjust the volume of suction air according to the size of the box.
The suction cylinder is made of special material. It is smooth so that the speed of patching is high and there will be no scratch on the plastic film.
When the knife cylinder is rolling, it intercrosses with another fixed knife bar and hence cutting the plastic film like “scissors”. The cutting edge is flat and smooth.
The knife cylinder is with adjustable blowing or suction system to ensure the plastic film is patched on the window of the box accurately.
