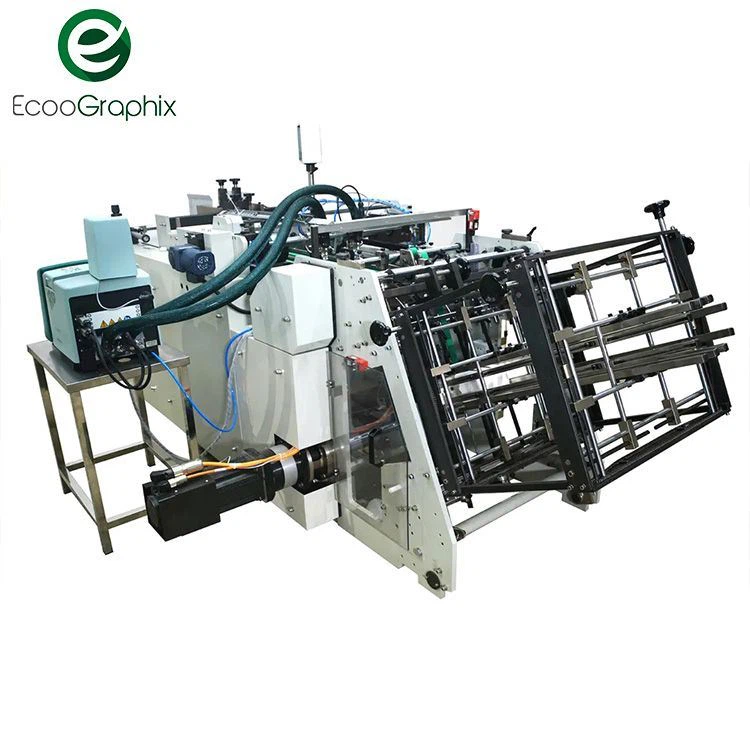

Single Lane Carton Erecting Machine

EcooGraphix L800 Series Food Paper Box Machine is the Carton Erecting and Forming Machine, can mainly make the Burger Box, KFC Takeaway Box, Disposable corrugated three-dimensional french fries box ,fried chicken carton and so on

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

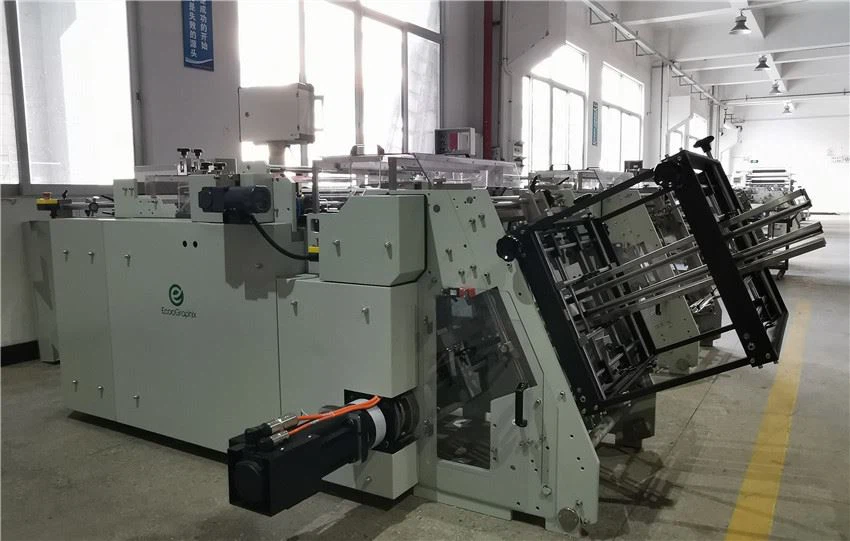

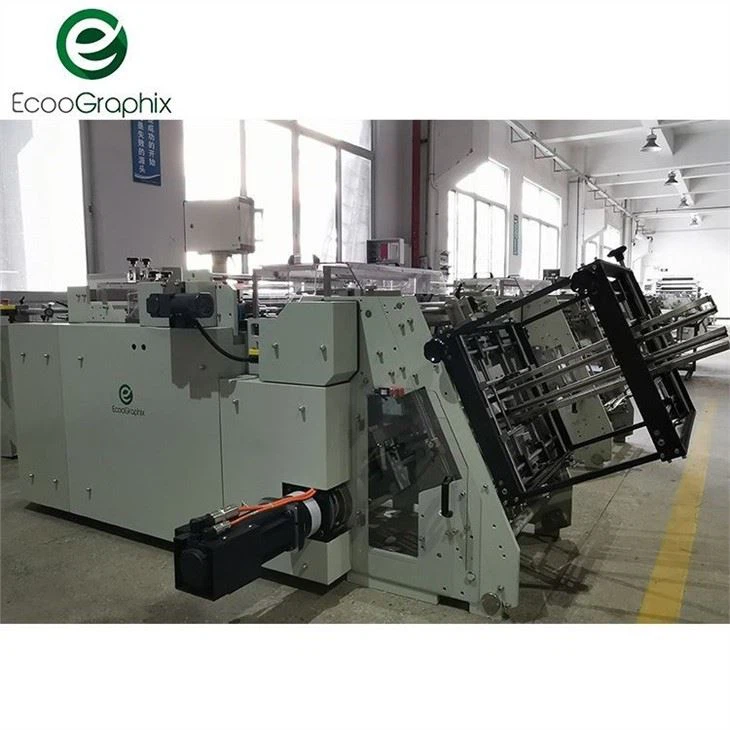

Automatic Food Paper Box Carton Erecting Machine

Features of Carton Erecting Machine
1. The finished products are counted automatically by a counter device.
2. It has low load power, 5KW and 8KW. Speed adjust by inventor brings more accurate.
3. The carton erecting machine uses a PLC encoder, has high automatic function, easy to operate and adjust, and causes less fault. Maintenance is convenient.
4. It uses a servo control system, making it more smooth, accurate, stable and with small vibration.

Machine type		L800-A / L800-C
Blank length	L	100mm-450mm
Blank length	B	100mm-680mm
Height of side flaps	H	15mm-260mm
Height of side flaps+lid	HI	15mm-260mm
Conicity		5°-40°

Machine Specification

Voltage	380V/50HZ
Covering Area	4.0M*1.2M
The total Power (L800-A)	8KW
The total Power(L800-C)	5KW
Maximum Production Speed	200 pcs/min
Air Pressure	0.6Mpa(Dry and clean compressed air)
Materials	Paper Board 200-600gsm; corrugated board paper with thickness not exceed 1.5MM.
Machine Model NO	L800-A and L800-C
The differences between L800-A and L800-C	1.L800-A adopts servo system to control the punching head,but L800-C adopts mechanical device to control the punching head,so L800-A is easier to change different box than L800-C. 2.L800-A is better to make eight corners boxes than L800-C.
Paper Box Sample	Free
Sample time	1-3 days
Production Time	45 days
