Double Lane Carton Erecting Machine
EcooGraphix Carton Erecting Machine is designed with European standard and CE certification. With simple and firm structure, high quality and efficiency as well as low noise.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

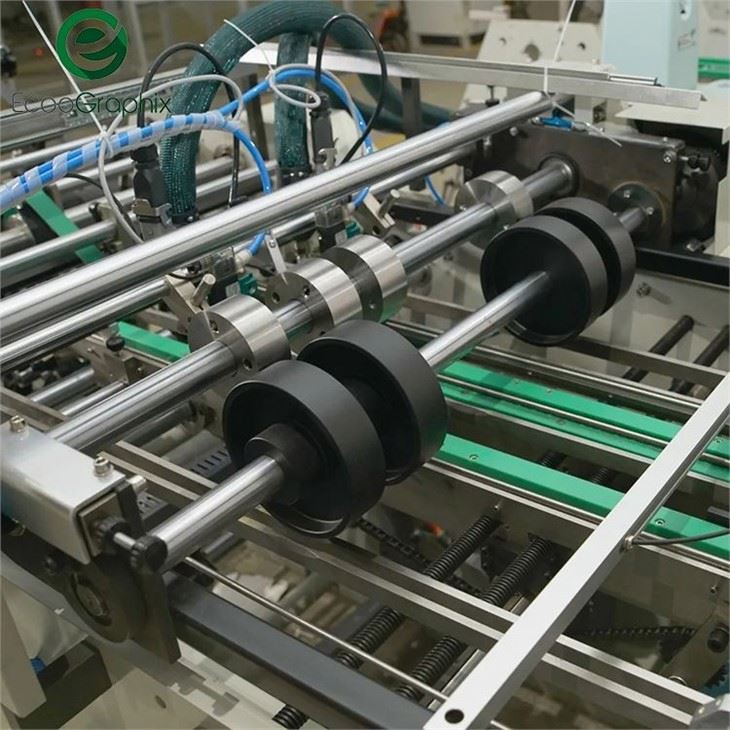

Double Lanes Carton Erecting and Folding Machine
L1000/2-A /2-B/2-C
EcooGraphix Carton Erecting Machine is designed with European standard and CE certification. With simple and firm structure, high quality and efficiency as well as low noise.
L1000 series Double Lanes Caron Machine is an ideal choice to produce disposable snack paper boxes, hamburger boxes, chips boxes, takeout container, etc. It adopts micro-computer, PLC, alternating current frequency converter, the electrical cam paper feeding, auto gluing, automatic paper tape counting, chain drive,and servo system to control the punching head. All of these main parts and electric control system adopts imported brand to guarantee steady working, precise positioning, smooth running, safety and reliability operation.
Working Principle:
The feeder transmits the pre-printed and cut cardboard from the paper shelf to the convey chain and then sends it to the shaping mold. During this procedure, the cardboard has been glued and you can adjust the position of the gluing. The volume of gluing can be measured while in progress without stopping work. After being glued, the shaped cardboard will be conveyed to a collector to be auto calculated as the preconcert quantity and auto mark without stopping production.
Features of Carton Erecting Machine
1. The finished products are counted automatically by a counter device.
2. It has low load power, 5KW and 8KW. Speed adjust by inventor brings more accurate.
3. The carton erecting machine uses a PLC encoder, has high automatic function, easy to operate and adjust, and causes less fault. Maintenance is convenient.
4. It uses a servo control system, making it more smooth, accurate, stable and with small vibration.
Machine Specification
Machine models | L1000/2-A /2-B/2-C |
Blank length (L) | 100mm-450mm |
Blank length (B) | 100mm-450mm |
Height of side flaps( H) | 15mm-260mm |
Height of side flaps+lid (HI) | 50mm-260mm |
Conicity | 5°-40° |
Voltage | 380V/50HZ |
Covering Area | 4.0M*1.4M |
The total Power | 8KW |
Maximum Production Speed | 400 pcs/min |
Air Pressure | 0.6Mpa(Dry and clean compressed air) |
Materials | Paper Board 200-600gsm; corrugated board paper with thickness not exceed 1.5MM. |
The differences between L1000/2-A,L1000/2-B and L1000/2-C | L1000/2-A only can make the same box on the two lanes at the same time. L1000/2-C adopts mechanic device to control the punching head. |
Paper Box Sample | Free |
Sample time | 1-3 days |
Production Time | 45 days |
● Strong and precisely machined walls make a strong and stable machine, with low noise running.
● Thick and strengthened plastics covers give a safe operation and visible monitor on running.
● Adjustable according to glue point.
● Electric box---Germany Rexroth servo system to control the punching head exactly.

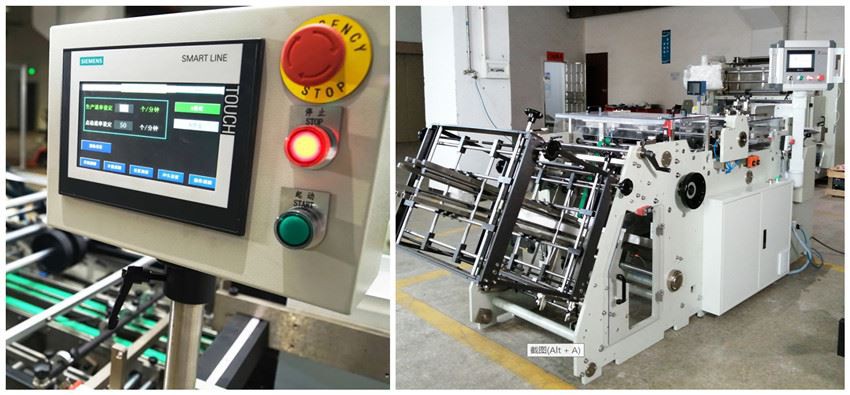

● English Version Touch screen
● The chain drive is adopted in the machine to ensure the smooth running, and endurable structure.
Each part is separated to reduce noise and workload, as well as to increase the stability.

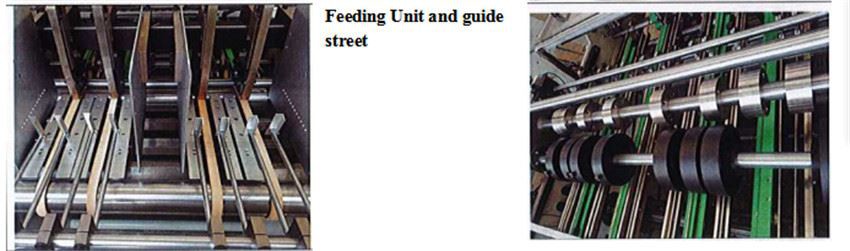

● Time of paper feeding is adjusted by cam. Simply operating, reducing failure rate.
● Automatic gluing systems controlled by reduce motor from Taiwan. Gluing point is made of sponge.
● Every part of forming and collecting system can be adjusted according to the size of mold. The whole collection system can be opened to change mold and install the forming parts conveniently.
● It adapts paper tape counting equipment to count product quickly and accurately, and to be readjusted.
Components Brand
PARTS | NAME | BRAND |
Servo system | Rexroth | |
Motor | Main motor | JIANGMEN Electric Co.,Ltd. |
gluing motor | JSCC (TAIWAN) | |
Electric elements | PLC | SIEMENS SIEMENS |
Frequency converter | ||
HMI | ||
Total Switch | ||
Thermal Relay | Schneider Electric Panasonic | |
Inverter | ||
Contractor | ||
Relay | ||
All other electrical parts | ||
Phase Sequence Relay | Weidmuller | |
| Air Switch | ||
Electric Box Switch | BERNSTEIN | |
Proximity Switch | ||
Safe Door Switch | ||
Photoelectric switch | ||
Button | SCHNEIDER Schneider Electric | |
Urgent Stop Button | ||
Button Box | ||
Power Switch | MEAN WELL (TAIWAN) | |
Pneumatic | Main air cylinder | SMC (JAPAN) |
Belt | paper feeding belt | Hanma (CHINA) |
| convey belt | ||
Bearing | Bearing | NSK(JAPAN) |
Spare Parts and Installation Guide

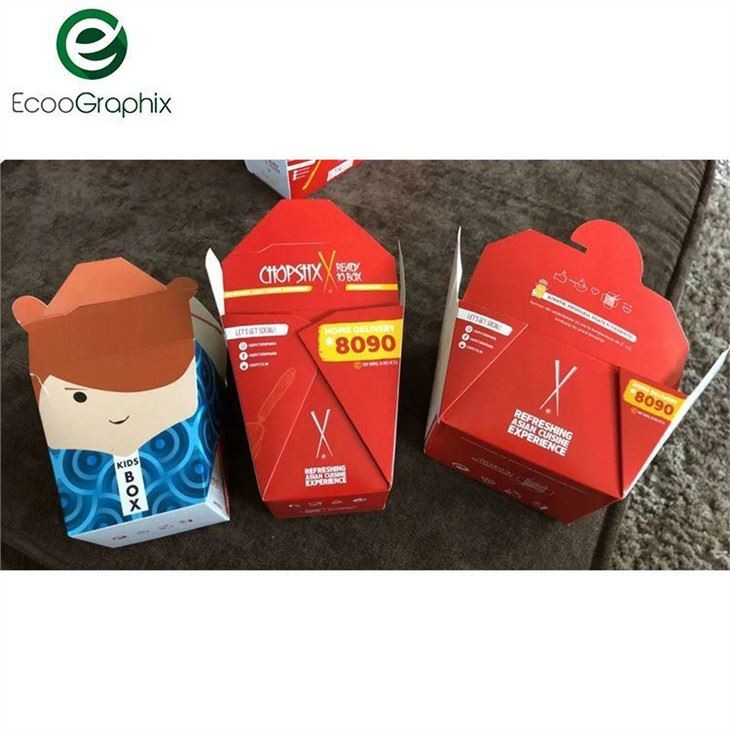

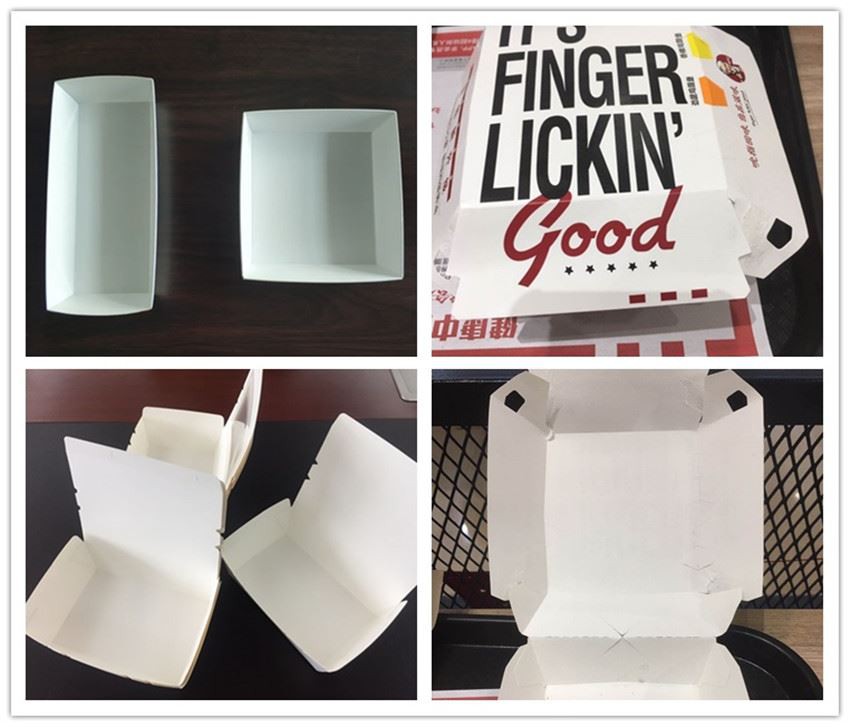

BOX TYPE

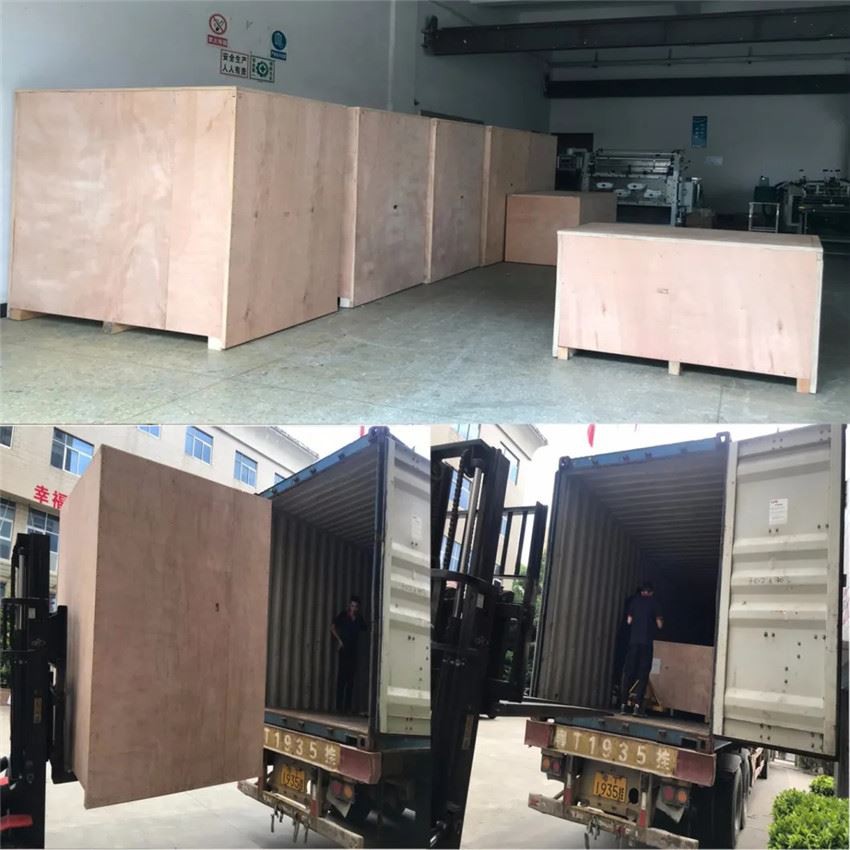

Shipping And Packaging
Shipping | By sea, or as your requirement to do | |
Packaging | By Strong Wooden Case | |
Packaging Dimensions | Case 1 (L1000/2-A) | Size: 2960mm* 1520mm*1520mm |
Net weight : 1800KG | ||
Gross weight: 2200KG | ||
Case 2 (L1000/2-A) | Size:1360mm* 1360mm*870mm | |
Net weight :350KG | ||
Gross weight:450KG | ||
FAQ
What's your advantage? Why we choose you?
A: We are a professional and leading carton erecting and forming machine manufacturer and supplier based in China for about 30years.
We provide a wide array of paper processing machines, including Paper Erecting and Folding machine, Paper Box Forming machine, Ice cream paper cone machine, automatic paper punching machine and so on.
Due to the high quality, stable performance and long service life, our products are sought after by customers in Canada,Spain, Chile, Venezuela, Greece, Honduras, Malaysia,the Philippines, Russia, etc.
Warranty of the machine?
A: One year. During this period, any parts damaged caused by machineself,we will repair/replace the spare parts for free. After one year, the spare parts will be supplied to buyers with charge. The machine service is all around the machine life.
What is the service?
A: 7 days 24 hours on line service, engineer oversea service is also available if necessary.
What is the delivery terms ?
A:FOB China, CIF destination port under LCL and FCL is available.
What is the delivery time?
A:45 working days after the confirmation of the order.
Hot Tags: double lane carton erecting machine, China, suppliers, manufacturers, factory, customized, price, in stock
