VD3350 DIGITAL Label Die Cutting Slitting Machine
As society progresses and consumers seek greater product diversity, there's an increasing demand for customized labeling across various industries. Label printing companies and enterprises are turning to digital label printers to streamline operations, reduce printing costs, and save time.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

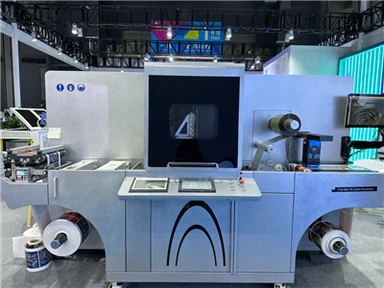

Ecoo VD3350 Digital Die Cutting Machine
Introduction:
Experience the cutting-edge technology of our Ecoo VD3350 high-speed digital label die cutter. This machine features intelligent digital die-cutting technology, automatically selecting cutting files and adjusting head distances. With four cutting heads across three units, it efficiently produces small to medium batch labels while minimizing manual intervention and maximizing work efficiency compared to traditional digital cutting methods.
Advantages:
1. Fast and precise operation powered by full-servo motors
2. Fully automatic tension and feeding control for seamless production
3. Intelligent positioning with automatic file selection for streamlined workflow
4. Standard four cutting heads with automatic distance adjustment for optimal cutting precision
5. Supports simultaneous cutting with three units, enhancing productivity
6. Optimized cutting trajectory ensures intelligent and efficient operation
Product Detail Presentation:
1 High precision feeding system:
Utilize the ultrasonic web-guide system, it makes sure the feeding perfectly.
2 Cold laminating
It has cold laminating function, your label will be bright and perfect. The back liner removal is optional.
3 Digital die-cutting system
VD3350 Digital label die-cutter utilizes high precision screw transmission system. Max speed can be 30m per minute. Individual control for the 4 heads, combining with the function of auto adjust the heads distance, to make the every single head on or off.
4 CCD identify system
With the CCD camera position and identify system, to recognize the sequence, to reach the function of changing file and cutting next graphics automatically.
5 Precision slitting system
Utilize rotary slitting mode, can install max.15 blades, high speed with 60m per minute, instead of traditional slitting equipment completely.
6 The waste removing system
The precision machinery design can control the roller rotating uniformly, avoid removing waste discontinuously due to unstable pressure, keep finishing labels clean.
7 Sheet Cutter
The optional built-in Pc350 Sheet Cutter, can be inline with the main Die-cutting, to perform the synchronous die-cutting and sheet cutting.
Software Features:
• Running status can be seen in real-time
• Choose the quantity of the heads based on graphics
• Choose the heads distance automatically
• Support file database
• Intelligent cutting with trajectory optimization
• Auto-generate the working records
Technical Data:
| Digital Die Cutting Machine | |
| Model | Ecoo-VD3350 |
| Max. media roller | diameter 450mm |
| Cutting media width | 40-350mm |
| Max.label width | 330mm |
| Min.label length | 10mm |
| Max.label length | 600mm |
| Cutting speed | max.9m per minute (depend on label shape and size) |
| Cutting blades | (standard) 4 pcs |
| Slitting blades | (standard 4 pcs ) max.15pcs |
| Cutting tracking | CCD camera |
| Die-cutting technology | with tungsten steel rotary blades |
| Cutting precision | 0.1mm (duplicate) |
| Slitting speed | Max. 100m per minute |
| Slitting width | 10-330mm |
| Slitting precision | 0.1mm |
| Machine size (W*D*H) | 2100*1195*1575 mm |
| Machine weight | 1200kg |
| Power | 110-127VAC 50-60HZ, 1000WATTS/220-240VAC 50-60HZ, 1000WATTS |
| Warranty | 1year (besides high consumable parts) |
| Options | Cutting head/Slitting unit/Film back liner removal/Sheet paper cutter |
|
Above data are get from testing in lab, there is difference when you use. |
|
Use the unique and intelligent digital die-cutting technology of our VD3350 high speed digital label due cutter, automatically choose cutting file and adjust te heads distance. Cutting by four heads*3 units simultaneously. You do not need to worry about the production of small and medium batch labels. What is more important is it reduces the manual intervention and greatly improves the work efficiency compared with the previous digital cuttings.
Specification
| Model | VD3350 |
| Max. media roller | diameter 450mm |
| Cutting media width | 40-350mm |
| Max.label width | 330mm |
| Min.label length | 10mm |
| Max.label length | 600mm |
| Cutting speed | max.9m per minute (depend on label shape and size) |
| Cutting blades | (standard) 4 pcs |
| Slitting blades | (standard 4 pcs ) max.15pcs |
| Cutting tracking | CCD camera |
| Die-cutting technology | with tungsten steel rotary blades |
| Cutting precision | 0.1mm (duplicate) |
| Slitting speed | Max. 100m per minute |
| Slitting width | 10-330mm |
| Slitting precision | 0.1mm |
| Machine size (W*D*H) | 2100*1195*1575CM |
| Machine weight | 1200kg |
| Power | 110-127VAC 50-60HZ, 1000WATTS/220-240VAC 50-60HZ, 1000WATTS |
| Warranty | 1year (besides high consumable parts) |
| Options | Cutting head/Slitting unit/Film back liner removal/Sheet paper cutter |
