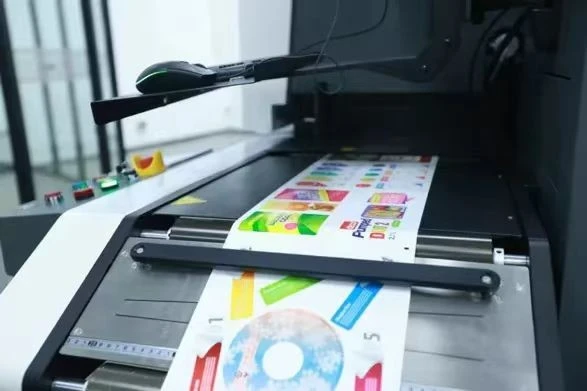

Digital Roll to Sheet Label Blade Die Cutter Machine
The Ecoo-LSC-F digital label die-cutter system is high reliable and professional new model digital label die-cutter are designed for professional label printing company. Ecoo-LSC-F digital label die-cutter system is collected laminating, die-cutting, slitting and rewinding on one, it is the best solution for label finishing system.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Digital Roll to Sheet Label Blade Die Cutter Machine
Introduction：
The traditional label finisher not only designs are complex and price is very expensive, but also functions are lack. Now, EcooGraphix research and develop high-speed, easy to operate and multifunctional Ecoo-LSC-F digital label die-cutter system. The high reliable and professional new model digital label die-cutter are designed for professional label printing company. Ecoo-LSC-F digital label die-cutter system is collected laminating, die-cutting, slitting ,and rewinding on one,roll to sheeting, it is the best solution for label finishing system , it is equipped with 6pcs motor cutting blade heads,speed up to 11m/min.
Auto web guide tension system:
1 For tension adjustment of all media
2 Auto calculate the length of feeding
3 Ultrasonic detect edge of media to avoid media loading twisty
4 Avoid printing image to stretched and twisted
5 Increase the lifespam of engine
|
|
|
Digital Die Cutting Machine |
|
|
Model |
Ecoo-LSC-F |
|
Blade dropping mode |
Servomotor(customized) |
|
Blade depth adjustment |
Digitalinput |
|
Cut mode |
Roll to roll fly |
|
Max. media roller |
diameter 500mm |
|
Cutting speed |
11m/min(4cmx15cm) |
|
Cutting precision |
0.1mm(repeat) |
|
Media width |
100-350mm |
|
Max.label width |
330mm |
|
Max.label length |
500mm |
|
Cutting tracking |
CCDCamera/Blank(PositionSpeed0.03S) |
|
Cutting blades |
6 pcs |
|
Slitting blades |
7 pcs, max.15pcs |
|
Rewinder qty |
1 set 3" |
|
Machine size (W*D*H) |
1540×1005×1636mm |
|
Machine weight |
990kgs(approx.) |
|
Power |
220VAC 2000W |
|
Data transfer port |
Buit-in PC |
|
File format |
PLT,DXF,PDF |
|
Other functions and device |
Auto adjust blade distance｜Auto job change(digitalnumber/QRcode) Web guide｜Auto optimize file and set drop point｜Auto tension adjustment Waster removal｜Two counter: cutting jobs and meters｜Automatic file import ｜Lamination system｜Automatic adjustment of knife depth vision system |
|
Options |
Waste discharge interruption shutdown｜Film liner remove｜Waste removal heating Sheet cutter(individual)｜Auto change sheet cutting job｜link with printer parts｜Visual detective function |
Packing details:
Box dimension: 230*135*175cm
Box weight Approx.: 1000kgs
Box materials: plywooden
