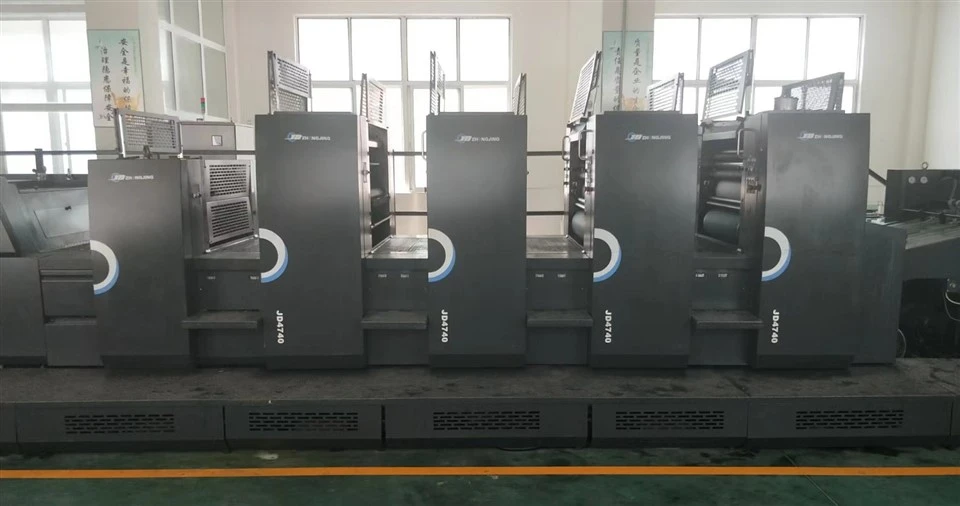

ECOOGRAPHIX Multicolor Small-Format Offset Printing Machine

- Utilizing a conjugated cam, the forwarding mechanism, controlled by a linear guide rail, enhances machine speed and stability.
- Featuring a rotary valve with patented technology, it automatically cleans paper dust, reducing the risk of faults.

- The frame and base are both cast integrally, ensuring robust construction.
- High-frequency quenching of gears ensures precise transmission accuracy.
- Equipped with helical gears boasting a high overlap coefficient, resulting in low noise operation.

- The impression cylinders and plate cylinders are coated with sprayed stainless steel, enhancing durability and extending the press life.
- Incorporating a dynamic balance design effectively reduces vibrations duri_{ng the printing process.}

_{-The press memory or job memory card (disk) can store the current job, including any changes and settings. These adjustments are transferred to the press accordingly. While in printing mode, you have the option to input preset values for the next job directly into the press memory or save them onto a disk.}

_-CIP3/CIP4

<sub>- The tension of the clamp bar is managed by imported hoses and disc springs, providing enhanced flexibility during operation.
- The corners of cylinders are monitored by high-precision encoders, enabling automatic plate installation and removal through programmed control. This feature accommodates both long and short version editions in printing.
- The separated tail of the clamp bar facilitates smoother paper handling.</sub>

<sub>- Each ink key in every unit can be adjusted via the console.
- Ink levels are displayed digitally and can be saved for future reference.</sub>

<sub>- The high-strength steel pads are heat-treated for increased durability, resulting in longer lifespan and easier replacement.
- Wear-resistant soft pads guarantee stable paper handover and precise paper transmission.
- Enhanced stability of the gripper system is achieved through the use of high-precision needle roller bearings and opening bearings.</sub>

<sub>- Equipped with gear-driven technology, the distance between cylinders can be automatically relayed to the screen via potentiometer feedback.
- The stability of printing pressure is ensured by a permanent magnetic generator, characterized by its large torsion and strong self-lock mechanism.
- Inputting paper thickness directly on the screen is made easier and more convenient.</sub>

<sub>- Equipped with an imported air pump boasting a large volume.
- Automatically compatible with all paper types and sizes, facilitating quicker and easier paper format changes.
- Enhanced protection for cylinders is provided by the ultrasonic double-sheet detector.</sub>
