Die Cutting Machine Without Stripping
TD1060S automatic die cutter is mostly used to cut carton and thin corrugated. Adopts PLC and colorful touch screen to check the running condition and display errors.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
EcooGraphix Automatic Paper Die-Cutting Machine
TD1060S automatic die cutter is mostly used to cut carton and thin corrugated. Adopts PLC and colorful touch screen to check the running condition and display errors.
It is used for automatic stamping roll material, after printing, lamination. Suitable for the production of paper boxes, paper cups, wrapping labels, cardboard embossing, portable paper bags, paper covers, PVC, various plastics, etc....
Specification
Model | TD1060S |
Max. sheet(mm) | 1060x740 |
Min. sheet(mm) | 400x360 |
Max. Die cutting size(mm) | 1040x730 |
Height of cutting rules(mm) | 23.8 |
Max. pressure (N) | 300x104 |
Inside chase size(mm) | 1120x760 |
Stock range | Cardboard 90-2000g/㎡，E、B flute |
Min. gripper margin(mm) | 4 |
Max. speed(s/h) | 7500 |
The thickness of stamping plate(mm) | 5 |
Feeding pile height(mm) | 1150 |
Delivery pile height(mm) | 1100 |
Rated power(kw) | 23 |
Air supply | 0.8-1.0MPa, ≥0.6m³/min |
Overall dimension(mm) | 6000x4200x2400 |
Weight of machine(kg) | 16000 |
1.Features
1)Taiwan OEM Gearbox:
Ensure minimum space between the input and output of drive from gearbox in order to maintain gripper accuracy.
2)Taiwan OEM Feeder:
Taiwan OEM feeder assures stable and smooth paper feeding, suitable for stocks from thin paper to 4mm corrugated board.
3)Taiwan OEM Side Lay:
Both pull and push functions integrated in one side lay, easy and convenient setting is obtainable, side lay to apply to the stable positioning of all kinds of paper running at high speed.
4)Taiwan OEM Gripper Bar:
It ensures precise diecutting performance at top speed
5)Oil temperature Conditioning System:
It keeps a stable cutting force during 24hrs running, frequent patching is no more needed.
6)Stripping Unit:
Smart stripping design leads to quick make ready and job change-over, together with accurate stripping even with complex jobs.
3.Application
TD1060S is commonly used for wine package, cigarette package, cosmetic package, food package etc.
EcooGraphix has dozens years of experience in die cutter. we have exported machines to all over the world for 30years. Our automatic die cutter get great reputation from our customers. We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.

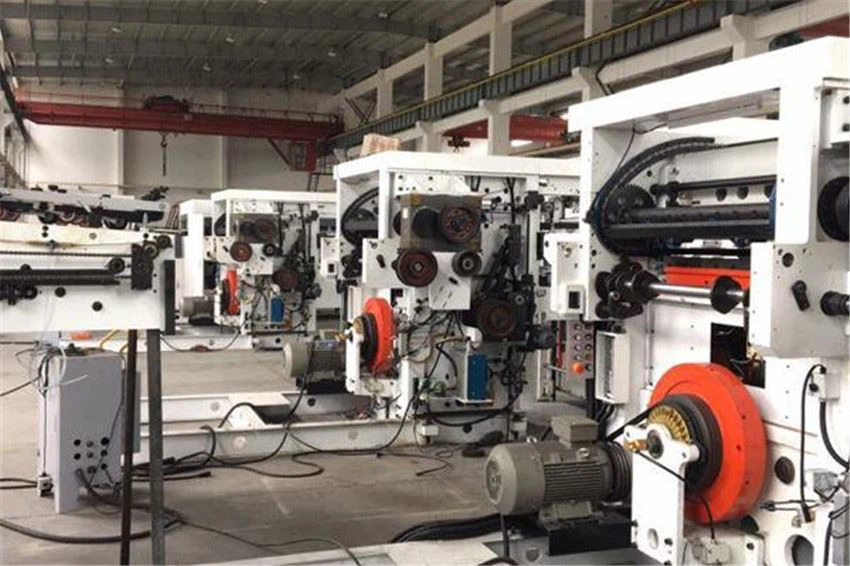

4.About our factory
EcooGraphix TD790 is produced by the leading manufacture in China ,which has a long history more than 90years. It is the first factory to produce and supply the Die Cutting ,Foil Stamping and Automatic Gluing machines .There are thousands of Die Cutting Machines installed worldwide. And two units EcooGraphix TDS790 were installed in Hungary in 2017.
5.Installations:
6.Quality Control
Professional control department which is responsible for all the machines.
Full checking list including mechanical and electrical detection on the machine.
Strict standard for registration and over 24 hours non-stop running on each machine.
Follow the policy of ‘One person responsible for one machine’ ,‘Claim responsibility if machine has assemble problem’.
7.Service
All of our technicians have over 10-20 years experience.
Rich experience in installation, repairing and maintenance overseas.
After-sales staff Whatsapp/Wechat on line 24/7.
Guarantee to provide after-sales service for any machine for whole using life.
