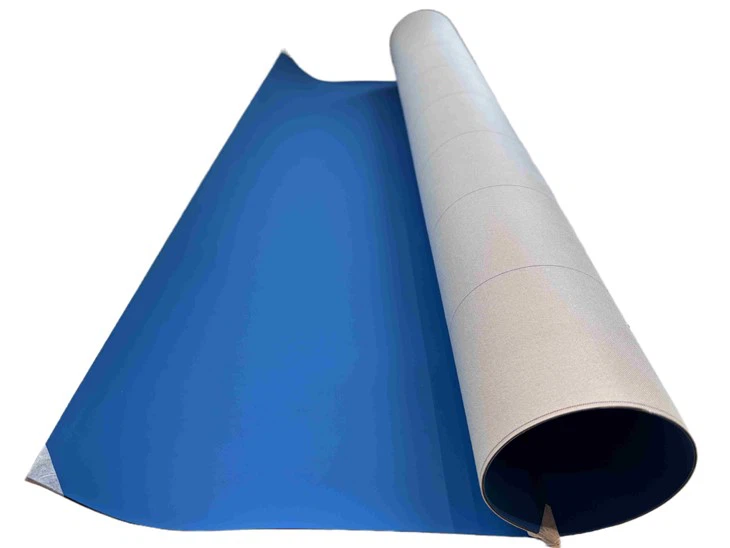

Rubber Sheetfed Printing Blanket For UV Spot Coating

Rubber Sheetfed Printing Blanket for UV Spot Coating









   EcooGraphix is the OEM factory for printing blanket,which can be used for offset litho printing,UV spot coating and so on. There are 3ply/4ply thickness from 1.68mm to 1.95mm, with aluminum bars or steel flat bars.



   Ecoo-BL-E is economical Offset Printing Blanket, for printing speed about 9000 prints/hour.

   It performs excellently in the action of absorbing a shock such as a mechanical impact.It can be used for Book, Plastic,Metal,Packaging Printing and so on.



Hardness:76-81

Compressibility:10-18

Elongation:≤1.1%

Strength at break:≥80

Roughness Ra:0.9~1.1

Thickness:1.97/1.70±0.02mm

Compressible layer:Microsphere

Layer:3 ply/4ply

Color:Blue



Specification

Model	ECOO-BL-E
Construction	3 ply /4ply fabric
Thickness	1.97/1.70±0.02mm
Color	Blue/Green
Compressible	Microspheres
Surface	Micro-ground and polished
Roughness	0.9-1.1μm
Hardness	76-80
Elongation	≤1.2%
Tensile strength	≥80
Suitable Printing Segment	Publishing, Packaging, Plastic, and Metal Printing
Application	Speed about 9000 prints/hour





Dimension, Blanket Back printing, Package

We offer blanket in any sizes in sheet or in roll as below. The blankets will be rolled and packed in polymer bag and carton with enough protective layers. The customer can decide the content of back side, usually the logo or size.





Printing Blanket Maintenance

1. Clean the blanket with fast volatile organic solvents

2. Clean rolls when ink color changing or refilling

3. Release the blanket off the cylinder when the printing machine stopped for a long time

4. New blankets should be stored in dry and cool place covered with dark layer.

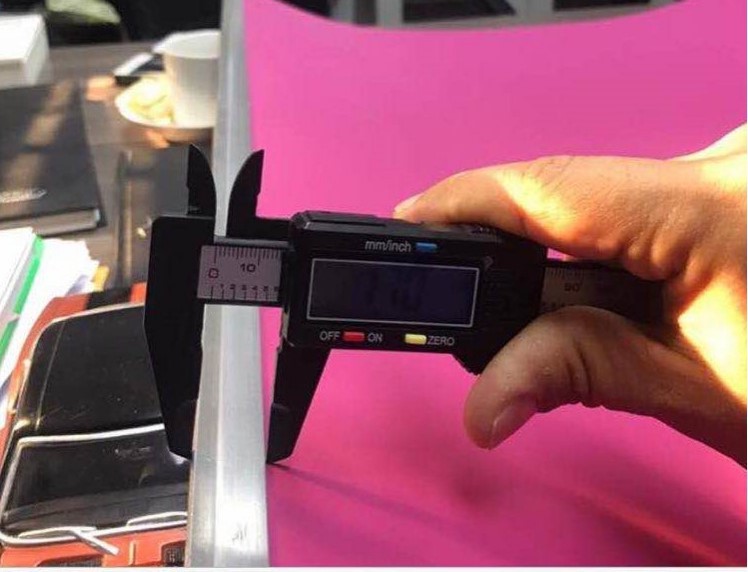

About the alu bars for the printing blanket:

   If you need the printing blanket with alu bars or steel flat bars,please let us know the details of the bars,such as length,width and thickness.





FAQ

Q1: Do you offer free sample? How long is the sample time of the shipping? Does the sample fee can be returned?

Since blanket is high value, we did not offer free sample. But we can offer favorable discount. It will take 5 days to prepare sample. If you place formal bulk order, we will refund the sample fee and courier cost.



Q2: About the sample what is the cost of transportation?

The freight depends on weight, packing size and your country or province region,etc.



Q3: How long can I expect to get the sample?

The sample will be ready for delivery in 3-5 days and will be sent via international express such as DHL, UPS, TNT, FEDEX and would be arrived within 3-5days.
