32CH Offset Prepress UV CTP Plate Maker





 32CH Offset Prepress UV CTP Plate Maker







 Model: EcooSetter UV-800 F/S/E











---

 ▶▶▶  Technical Data  ◀◀◀



ECOO UV-800 Series CTP Specifications


Model

UV-800F; UV-800S; UV-800E

Exposing Method

External Drum

Imaging System

64-channel; 48-channel; 32-channel, Discrete 405nm laser diode

Throughput

28plates/hour; 22plates/hour; 16plates/hour, 1030mm x 800mm, 2400dpi

Plate Sizes

Max. 1163mm x 940mm, Min. 400mm x 300mm

Exposing Size

Max. 1130mm x 884mm, Min. 260mm x 284mm

Media Type

Positive UV-CTP/CTCP plate or high sensitive PS plate

Plate Thickness

0.15mm to 0.30mm

Resolution

2400dpi

Repeatability

±5μm(Continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%)

Interface

USB 2.0

Plate Loading

Semi automatic

Net Weight

900kg

Machine Size (WxLxH)mm

2320x1080x960

Power Supply

Single phase: 220AC, +6%, -10%, Power Consumption: 4KW

Operation Environment

Recommended: 21-25ºC, Max. 18-26ºC, Humidity: 40-70%

​

ECOO UV-800 Series CTP Specifications
Model	UV-800F	UV-800S	UV-800E
Exposing Method	External Drum
Imaging System	64-channel	48-channel	32-channel
	Discrete 405nm laser diode
Throughput	28plates/hour	22plates/hour	16plates/hour
	1030mm x 800mm, 2400dpi
Plate Sizes	Max. 1163mm x 940mm; Min. 400mm x 300mm
Exposing Size	Max. 1130mm x 884mm; Min. 260mm x 284mm
Media Type	Positive UV-CTP/CTCP plate or high sensitive PS plate
Plate Thickness	0.15mm to 0.30mm
Resolution	2400dpi
Repeatability	±5μm(Continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface	USB 2.0
Plate Loading	Semi automatic
Net Weight	900kg
Machine Size (WxLxH)mm	2320x1080x960
Power Supply	Single phase: 220AC, +6%, -10%, Power Consumption: 4KW
Operation Environment	Recommended: 21-25ºC, Max. 18-26ºC, Humidity: 40-70%

​







---

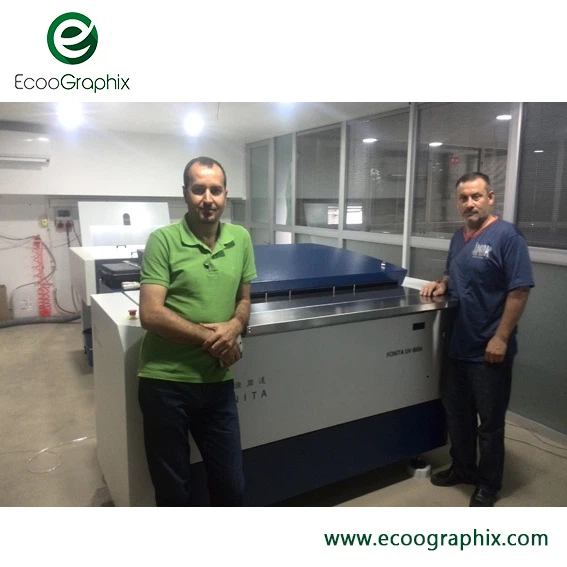

 ▶▶▶  Success Cases  ◀◀◀











---



 ▶▶▶  Advantages  ◀◀◀



Our CTP/CTCP Machine with the exterma drum makes CTP Plate fit tighty on the drum, and the technology is better and advanced, making you maintain it easily.



CTP/CTCP Machine replaces the traditional exposure method, which eliminates the occurrence of dirty spots and sun-out in the traditional exposure process so that you can reduce the waste of plates caused by errors in the printing process. And make your image CTP/CTCP Plate more convenient and faster.



After using CTP/CTCP Machine you don't need to buy the traditional film, no film expenses, so that you can save production costs.

A single operator can use CTP/CTCP Machine to complete all the plate-making and plate-washing work by operating the computer, which saving you labor costs.

Our CTP/CTCP Machine supplies our customers three-year warranty, including any spare parts damaged and free replacement to make sure you can use our CTP/CTCP Machine with confidence, no guality concerns.

After you buy our CTP/CTCP Machine, we will provide the installation site instruction manual, or assist online due to the epidemic.

In the shipping, strong wooden box transportation to ensure your CTP/CTCP Machine safely.









---



 ▶▶▶  About Packaging  ◀◀◀










---



 ▶▶▶  Certificates  ◀◀◀











---



 ▶▶▶  FAQ  ◀◀◀



1. What are your main products ? A: Our main products are the Prepress CTP System(4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor), and Post Press Packing Equipments(Laminating Machine, Foil Stamping and Die Cutting Machine, Paper Box Window Patching Machine, Book Binding Machine and so on) and the Printing Consumables(Offset Printing Plates, Inks, Printing Blankets, Plate Dot Densimeter). Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance. You can get the Pre-press and Post Press equipments and consumables all in one and no worry about the after-sales service from our company.

2. Where is your factory ? A: Our CTP machine factory is located in Hangzhou city, which is about 1.5 hours by train from Shanghai. You are warmly welcome to visit our factory!

3. What is your warranty for the CTPs ? A: Three years' Laser Head and main spare parts for the CTPs, one year for the Processor.

4. What is the Lead Time ? A: Usually 20-30 days, and we will try our best to meet your demands.

5. Can you also supply the Workflow and RIP ? A: Yes, we can provide the Workflow Brain New and RIP Compose V9. Machine price does not include software.

6. What about the installation and after-sales technician support ? A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular on site visits. These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintenance. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
