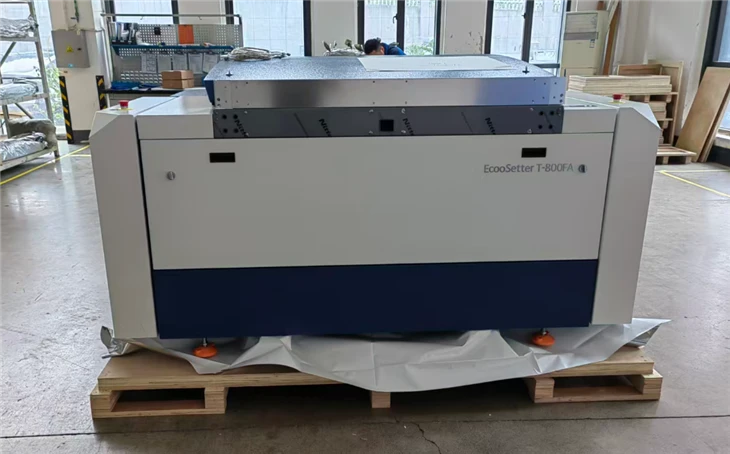

Automatic Offset Printing Thermal CTP Machine 8 Up

Automatic Offset Printing Thermal CTP Machine 8 Up



Application

EcooSetter T-800A series offers fully automated inline CTP solutions, designed to integrate seamlessly with an Autoloader, Bridge, and Processor for a streamlined plate-making workflow. The T800 A series, specifically built for A1 and B1 formats, handles plates up to 1,163×940mm and delivers a production rate ranging from 16 to 55 plates per hour.



ECOOSETTER T-800 A Series Thermal CTP Specifications
Model	T-800FA	T-800SA	T-800EA
Exposing Method	External Drum
Imaging Diodes	64-channel	48-channel	32-channel
	Discrete 830nm laser diode
Throughput	28plates/hour	22plates/hour	16plates/hour
	1030mm x 800mm, 2400dpi
Plate Sizes	Max. 1,163×940 mm, Min. 300×400 mm
Media Type	830nm Thermal CTP Plate, Non-Chemical Processless Plate
Plate Thickness	0.14mm to 0.30mm
Resolution	2400dpi(1200dpi optional)
Repeatability	±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23℃ and humidity of 60%)
Interface	USB 2.0
Plate Loading	Automatic
Net Weight	1200KGS
Machine Size	2,127×1,610×1,058 mm( L×W×H )
Power Supply	single phase:220AC,+ 6%,- 10%, power Consumption:4KW
Operation Environment	recommended:21-25℃, Max.18-26℃, humidity:40-70%















Installation Preparation Checklist for Buyers

Before the equipment arrives, customers are kindly requested to make the following preparations.

1. Lifting and Handling Tools
A forklift with a minimum capacity of 1.5 tons and forks at least 1.2 meters in length is required for safe unloading of the machinery.

2. Workspace Conditions

Temperature should be maintained between 15°C and 30°C; air conditioning is highly recommended.

Relative humidity must stay within 10% to 70%, with no condensation.

The area should be free from smoke, corrosive gases, and airborne dust levels below 0.1mg/m³.

Avoid direct sunlight; natural lighting is acceptable.

Floor load-bearing capacity should reach 500kg/m², with anti-static or tiled surfaces preferred.

Ventilation should be natural, with a thermometer and hygrometer (analog or digital) placed in the center of the room.

3. Electrical Requirements
The EcooSetter CTP series operates on single-phase power with independent grounding (resistance below 3Ω), at 50/60Hz and 4KVA. An online UPS unit is necessary, with battery backup sufficient for a minimum of 5 minutes.

4. Additional Equipment to Be Supplied by Customer

Computer: One unit with Intel I3 processor or better, 500GB or larger storage, and Windows 7/8/10 (US English version).

Air Supply: Either a standalone compressor or central system delivering ≥0.8Mpa and ≥175L/min. If using a separate compressor, a tank of at least 30L is recommended.

Processor, plates, chemicals, and measuring instruments (such as Replate or IC plate tools) should be ready.

5. Workflow Software
A RIP workflow capable of generating 1-bit TIFF files is required, as the EcooSetter CTP system accepts this format for imaging.



Why Are More Printing Companies Choosing the EcooSetter A Series Thermal CTP?

In today's highly competitive printing industry, shorter delivery times and tighter cost control are two of the biggest challenges that business owners face every day. Traditional film-based prepress workflows involve multiple time-consuming steps and rely heavily on manual experience, making it difficult to maintain consistent quality from job to job. As the number of short-run, high-mix, and quality-sensitive orders continues to grow, printers urgently need an automated platemaking solution that delivers both speed and reliability.

The EcooSetter A series fully automatic CTP system was developed precisely to address this industry-wide need. It shifts prepress from being "experience-driven" to "data-driven," eliminating the dependency on film and chemical processing by directly imaging digital files onto plates. This dramatically shortens the prepress cycle. What used to take hours in the traditional workflow can now be completed in just minutes, giving the pressroom more time to focus on production.

For operators, the EcooSetter A series brings not only faster output but also a better way of working. The user interface is intuitive and straightforward – operators can become proficient with minimal training, reducing the reliance on highly specialized personnel. Even in today's tight labor market, this allows printing companies to maintain smooth operations while freeing up staff to concentrate on print quality monitoring and process improvement, rather than being tied down by repetitive manual prepress tasks.

On the technical side, the A series utilizes external drum imaging technology and a precision laser system to ensure accurate dot reproduction and consistent image quality on every plate. Whether it's fine highlights requiring delicate tonal transitions or deep shadow areas demanding rich density, the system delivers reliable results. This makes it an ideal choice for commercial printing, high-end brochures, premium packaging, and any application where color fidelity and fine detail are critical.

From a long-term investment perspective, the A series features a compact and robust mechanical design. Key components – particularly the laser diode – are engineered for extended service life, significantly reducing replacement costs over time. Combined with a comprehensive 3-year warranty and regular remote maintenance support, customers benefit from lower total cost of ownership throughout the equipment's lifecycle.

It is precisely this combination of performance, reliability, and value that has earned the EcooSetter A series the trust of printers around the world. From North America to Europe, from Southeast Asia to the Middle East, thousands of successful installations demonstrate that this system is not only capable of handling today's production demands but also offers the flexibility to support future business growth.

Choosing the EcooSetter A series means choosing a prepress partner that is stable, efficient, and built for the future.

Ideal Applications

The EcooSetter A series thermal CTP is particularly well-suited for:

Commercial printers handling frequent job changes with varying sizes and quantities

Book and publication printers requiring consistent ink density and sharp image reproduction

Newspaper printers demanding high-speed output and 24/7 operational reliability

Packaging printers that need both high precision and high throughput

Small to mid-size print shops looking to achieve efficient automated platemaking within limited floor space

Regardless of your specific segment, the EcooSetter A series can be configured to meet your production requirements, providing a smooth upgrade path from manual operation to fully automated inline workflows.
