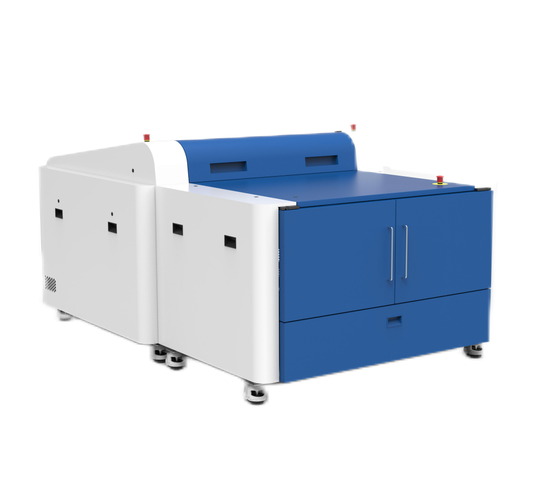

T-800Q Computer To Printing Plate Thermal CTP Machine
Full Automatic Thermal CTP Machine With 256-Channel Laser.Adopt 256-channel laser light valve
The output speed reaches up to 35-55plates/hour for 8 up plate (1,030×800mm, Plate sensitivity: 100mJ/cm²) two times faster than former devices
With square screen imaging technology adopted, reach saturation increasing by 21% and fineness and precision ten times higher than original
With linear motor high-precision positioning equipped, achieve longer service life and lower operation and maintenance cost for customer.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Full Automatic Thermal CTP Machine With 256-channel Laser
Model: T-800Q
Product description:
Adopt 256-channel laser light valve;The output speed reaches up to 35-55plates/hour for 8 up plate(1,030×800mm, Plate sensitivity: 100mJ/cm²), two times faster than former devices; With square screen imaging technology adopted, reach saturation increasing by 21% and fineness and precision ten times higher than original; With linear motor high-precision positioning equipped, achieve longer service life and lower operation and maintenance cost for customer;
Technical Specifications:
| Model | T-800QE | T-800QS | T-800QH |
| Exposing Method | External Drum | ||
| Imaging System | 32-channel | 48-channel | 64-channel |
| Discrete 830nm laser | |||
| Throughput | 16PPH | 22PPH | 28PPH |
| 1030mm x 800mm, 2400dpi | |||
| Plate Sizes | Max.1163mm x 940mm; Min.400mm x 300mm | ||
| Exposing Size | Max.1163mm x 924mm; Min.400mm x 284mm | ||
| Plate Thickness | 0.15mm to 0.30mm | ||
| Resolution | Standard resolutions 2,400dpi | ||
| Repeatability | ±0.01mm | ||
| Interface | Optical fiber / GB Ethernet | ||
| Plate Loading | Automatic load: Single cassette | ||
| Plate Loading Quantity (0.27mm Plate) |
Single cassette unit: 100 plates Multiple cassette unit: 400 plates (4 X 100 plates/cassette) |
||
| Auto slip Paper Collection Bin |
Included in Autoloader | ||
| Bridge to Processor | Included | ||
| Punching System | Option: Internal punching (Max. four sets of plate holes) | ||
| Net Weight | CTP manual load(P): 890KG; CTP with single cassette: 985KG; CTP with multiple cassette: 1,350KG | ||
| Machine Size (WxLxH)mm |
CTP manual load(P):1,900x2,510x1,356mm.(LxWxH) CTP with single cassette:1,900x2,431x1,356mm.(LxWxH) CTP with multiple cassette:1,900x2,687x1.356mm.(LxWXH) |
||
| Power Supply | CTP manual load(P): Single phase: 220V, Power: 3.8KW(Peak value), 1.5KW (Average) CTP with single cassette: Single phase: 220V, Power: 4.2KW(Peak value), 2KW (Average) CTP with multiple cassette: Single phase: 220V, Power: 4.6KW(Peak value), 2.5KW (Average) |
||
| Environment | Operating temperature range: 15-30°C Recommended temperature: 21-25°C Humidity: 40%-70% |
||
Three kinds of plate loading way for your option:
Technical Advantages
Break through the traditional optical fiber technology limitation, and divide a laser beam into 256 channels of small laser beams that can be separately controlled, doubling the output speed; the square screen dot printed on the plate, with sharp edge feature and a rectangular-step-shaped distribution of energy, makes the image clearer, 10 times more accurate than 200lpi AM screening and the color saturation is increased by over 21%..

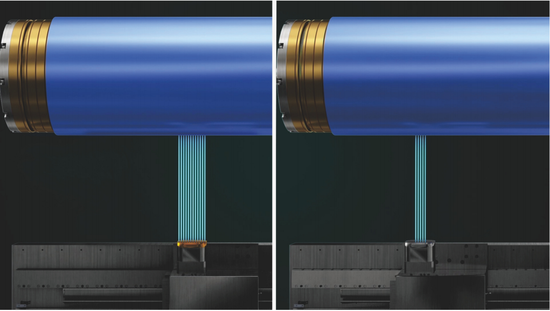

Use light valve device to divide a laser beam generated from single-source laser into 256 channels of small laser beams with even energy and its exposure screen dots are highly consistent.Use light valve device to divide a laser beam generated from single-source laser into 256 channels of small laser beams with even energy and its exposure screen dots are highly consistent.
The square screen dot with sharp edge feature makes the image clearer, 10 times more accurate than 200lpi AM screening and the color saturation is increased by over 21%.The square screen dot with sharp edge feature makes the image clearer, 10 times more accurate than 200lpi AM screening and the color saturation is increased by over 21%.
Higher efficiency, lower loss-Quick plate making with 256 channels of small laser beams, output speed doubled while drum speed only 20%-50% of the conventional.Higher efficiency, lower loss-Quick plate making with 256 channels of small laser beams, output speed doubled while drum speed only 20%-50% of the conventional.
FAQ:
1. How long is the lead time?
The lead time for each CTP machine is normally 30 days. We can accelerate for emergency cases.
2. How long is the warranty period?
Ecoographix gurantees 3 years of warranty for laser head and spare parts. Lifetime warranty also is available in conjunction with our plate.
3. Is there any certification for your CTP machine?
Yes, All our CTP machines have been certified by SGS and CE.
4. Do you have accompanying plate products to make an easy purchase for some end users?
Yes, we have qualified CTP/CTcP plates at most favourite price. In addition, blanket, ink, developer, processors are also in our business range.
5. What is your normal Payment term?
Normally, 30% deposit, 70% before shipping.
6. Can you offer some successful installation for reference?
Yes, we achieve great success in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa, etc, with the great assisstance of our dealers. If you have any concern about the quality or service, you can contact them by your own.
7. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V13.
8. What about the Installation and after-sales technician support?
Our engineer are all Ecan go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
