Full Automatic Online 8 Ups Thermal CTP Machine With Inline Processor And Stacker
This is a fully automatic thermal CTP system featuring a built-in autoloader and auto-puncher, inline processor, and stacker. 6 speed options: 16 / 22 / 28 / 35 / 45 / 55 pph 3-year standard warranty
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Full automatic prepress solution, with autoloader, in processor

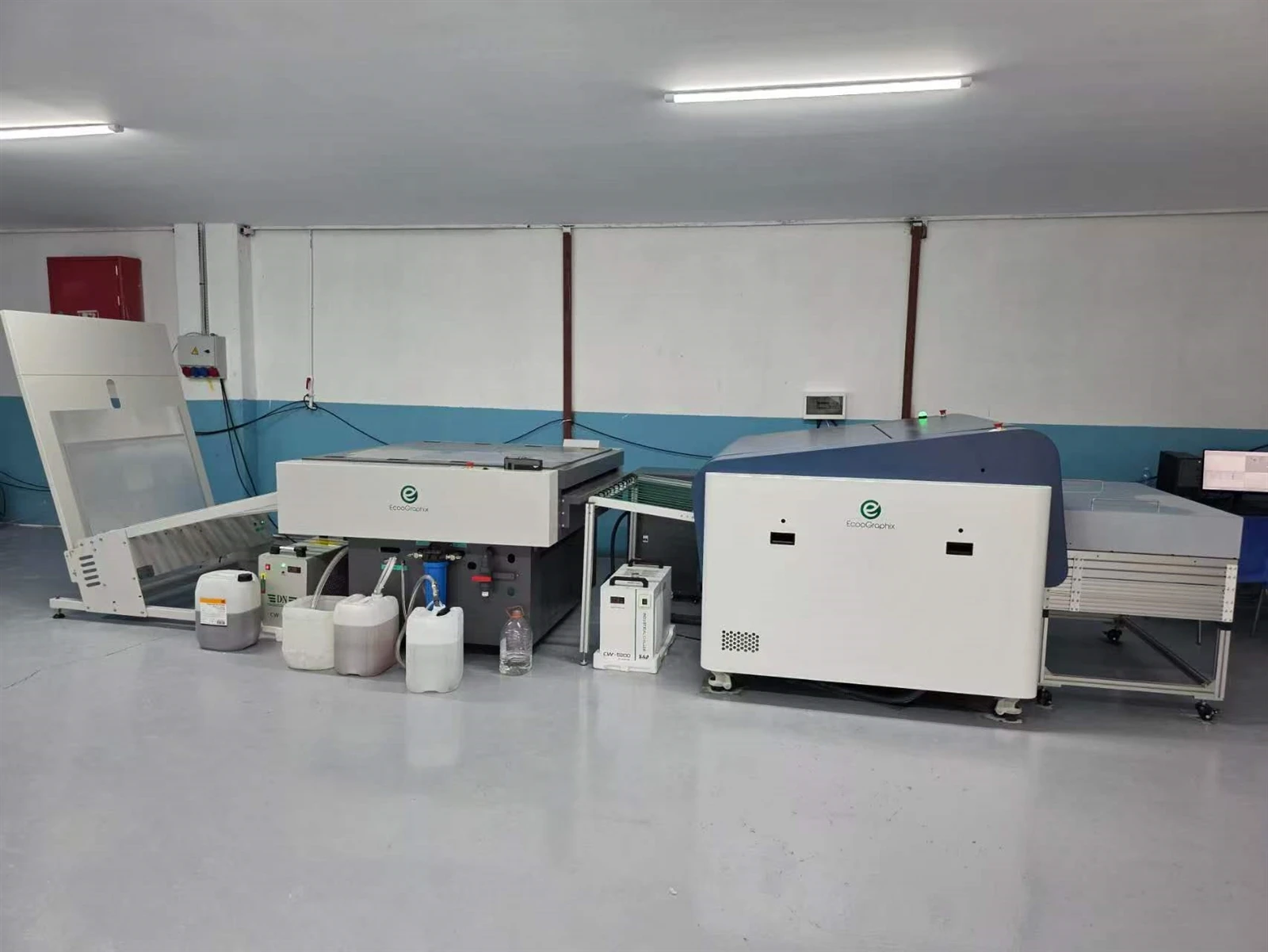

This is a complete full prepress solution, including autoloader, thermal CTP imagesetter, optional inline punch, inline processor and stacker. It has 6 speed for option, from 16-55 pcs per hour. So most printing companies can be satisfied with this T800Q model. Customer can choose 256 laser beams to achicve retanctangle spot instead of round spot/
1. Autoloader- to feed plate into CTP machine and peel off the liner paper automatically
|
ECOO Cassette Autoloader Technical Specification |
|
|
Model |
SCU800(single) |
|
Cassette Type |
Single cassette, Loading platform |
|
Plate feeding way |
Auto-feed (remove the interleaf paper at the same time) |
|
Plate size |
Max.1,163x940mm, Min.300x400mm |
|
Plate Thickness |
0.15mm-0.40mm |
|
Interface |
RS485 |
|
Plate Loading Quantity |
100pcs |
|
Net Weight |
190KG |
|
Device Size |
1,617x1,300x1,222mm (WxDxH) |
|
Power Supply |
Single phase: 200V-240V; Max power (peak value):1100W |
|
Environment |
Recommended temperature:21-25℃ Allowable temperature:15-30℃ Humidity: 40%-70% |
2. thermal CTP machine- to make images on thermal plate directly. Compared with CTF machine, this new generation does not need film any more, make plate making more quickly and easily.
|
T-800 Q (E,S,H)Specifications |
|||
|
Model |
T800QE |
T800QS |
T800QH |
|
Exposing Mothod |
External Drum |
||
|
Imaging System |
32 channels 48 channels 64 laser channels |
||
|
Throughput
|
18plates/hour |
25plates/hour |
30plates/hour |
|
1030mm x 800mm, 2400dpi, Plate sensitivity 120mj/cm² |
|||
|
Plate Sizes |
Max.1163mm x 940mm |
||
|
Plate Thickness |
0.15mm, 0.30mm |
||
|
Resolution |
Standard: dual resolutions 2400dpi and 1200dpi or optional 2540dpi |
||
|
Repeatablity |
0.01mm |
||
|
Interface |
Optical Fiber(Fiberway) |
||
|
Plate Loading |
Standard: Simplified Autoloader or multi-cassette Autoloader(four cassette) |
||
|
Punch System |
Optional: internal punching(maximum four sets of plate holes) |
||
|
Net Weight |
CTP: 1200kg, Simplified Autoloader: 200KG, Multi-cassette Autoloader: 570KG |
||
|
Machine Size |
1,537×1,976×1,340mm |
||
|
Power Supply |
CTP(single phase:220V, Max power(Peak Value): 4KW) Simplified Autoloader(single phase:220V; Max power(Peak Value): 900W)) Multi-cassette Autoloader(single phase:220V; Max power(Peak Value): 1100W)) |
||
|
Operation |
recommended:21-25℃, allowable temperature: 15-30℃,relative humidity:40-70% |
||
|
T-800 Q (F, V, X)Specifications |
|||
|
Model |
T800QF |
T800QV |
T800QX |
|
Exposing Mothod |
External Drum |
||
|
Imaging System |
825nm, 256 laser valve |
||
|
Throughput
|
35plates/hour |
45plates/hour |
55plates/hour |
|
1030mm x 800mm, 2400dpi, Plate sensitivity 120mj/cm² |
|||
|
Plate Sizes |
Max.1163mm x 940mm |
||
|
Plate Thickness |
0.15mm, 0.30mm |
||
|
Resolution |
Standard: dual resolutions 2400dpi and 1200dpi or optional 2540dpi and 1270dpi. Variable resolution option: maximum up to 10000dpi at fast scan direction |
||
|
Repeatablity |
0.01mm |
||
|
Interface |
Optical Fiber(Fiberway)/GB Ethernet |
||
|
Plate Loading |
Standard: Single cassette Autoloader or multi-cassette Autoloader(four cassette) |
||
|
Auto slip paper collection bin |
Included in autoloader |
||
|
Bridge to processor |
included |
||
|
Punch System |
Optional: internal punching(maximum four sets of plate holes) |
||
|
Net Weight |
CTP: 1200kg, Simplified Autoloader: 200KG, Multi-cassette Autoloader: 570KG |
||
|
Machine Size |
1,537×1,976×1,340mm |
||
|
Power Supply |
CTP(single phase:220V, Max power(Peak Value): 4KW) Simplified Autoloader(single phase:220V; Max power(Peak Value): 900W)) Multi-cassette Autoloader(single phase:220V; Max power(Peak Value): 1100W)) |
||
|
Operation |
recommended:21-25℃, allowable temperature: 15-30℃,relative humidity:40-70% |
||
3. processor- to wash the imaged plate and dry
|
Model |
P-1150 |
|
Page Size |
The max width 1150 mm, The min width 280mm |
|
Plate Thickness |
0.15mm to 0.40mm |
|
Processing power |
Speed adjustable (10 to 60 seconds) 400-1000 mm/minutes |
|
Temperature |
10 to 45 ℃ can be adjusted ( automatic temperature control, cooling system) |
|
Developing capacity |
54 L |
|
Drying temperature |
20-65 ℃ can be adjusted |
|
Electricity source |
220 V (208V-240V) single-phase 50-60HZ |
|
Work rate |
4.5 KW |
|
Weight |
420 KG |
