Screen Square Dot Sheetfed VLF CTP Plate Machine



VLF Thermal Computer To Printing Plate CTP Machine





Model: T-1600X





   EcooGraphix VLF(Very Large Format) CTP Machine T1600X Series can be used for A0, B0 paper size Posters or Wall-charts , Large Books, catalogue, yellow pages, packaging processing and plate-making center etc. , with the output speed up to 25 plates per hour.

   Sheetfed VLF CTP Plate Machine T1600 series can be used in the production process of aluminum CTP plate making and iron printing plate making.
Can be used with KBA 142-162, Roland 900 900XXL, Heidelberg XL145, Heidelberg 162 and other full-sheet or large format printing machines  perfectly .

   The VLF platesetter uses screen square spot thermal imaging technology, which can expose traditional digital printing process CTP plate and also the non chemical processless CTP plate. In addition, the square screen spot can also bring accurate and stable printing plates, helping printers improve print working efficiency.



---



►►► Technical Specifications



Model	T-1600QX
Exposing Method	External Drum
Image System	825nm laser
Output Speed	25 plates/hour
	1630mm x 1325mm / 2400dpi
Plate Sizes	Max.1680mm x1350mm; Min. 650mm x 550mm
Exposing Size	Max. 1680mm x 1336mm
Media Type	Positive/Negative Thermal CTP Plate or Non Chemical Plate
Plate Thickness	0.15mm to 0.30mm or 027mm t 0.40mm(alternative)
Resolution	Standard: dual resolutions 2400dpi and 1200dpi or optional 2540dpi and 1270dpi. Variable high resolution option: maximum up to 10800dpi at fast scan direction. 12800DPI is available upon requirement
Repeatability	±0.01mm(continuous exposing for 4times or above on the same plate with a temperature of 23℃ and humidity of 60%)
Interface	256CH Optical Laser Valve Head
Plate Loading	semi automatic(alternative autoloader system)
Net Weight	1800kg
Machine Size (WxLxH)mm	2400x1430x1110
Power Supply	3 phase 380V, power Consumption(peak value):5.5KW
Operation Envronment	recommended temperature:21-25℃;allowed temperature :15-30℃, humidity:<70%RH

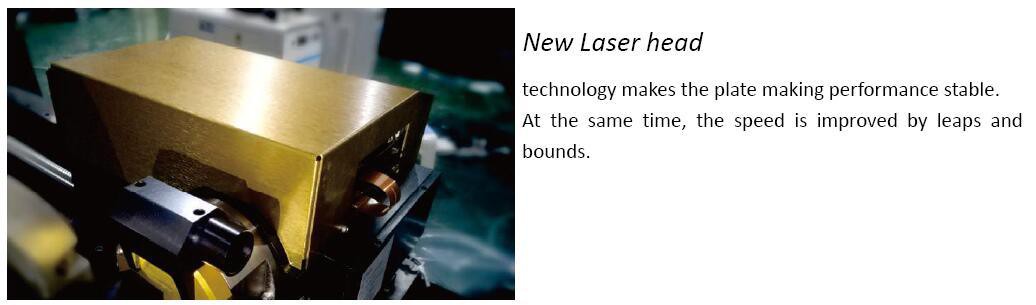

►►► Details







---

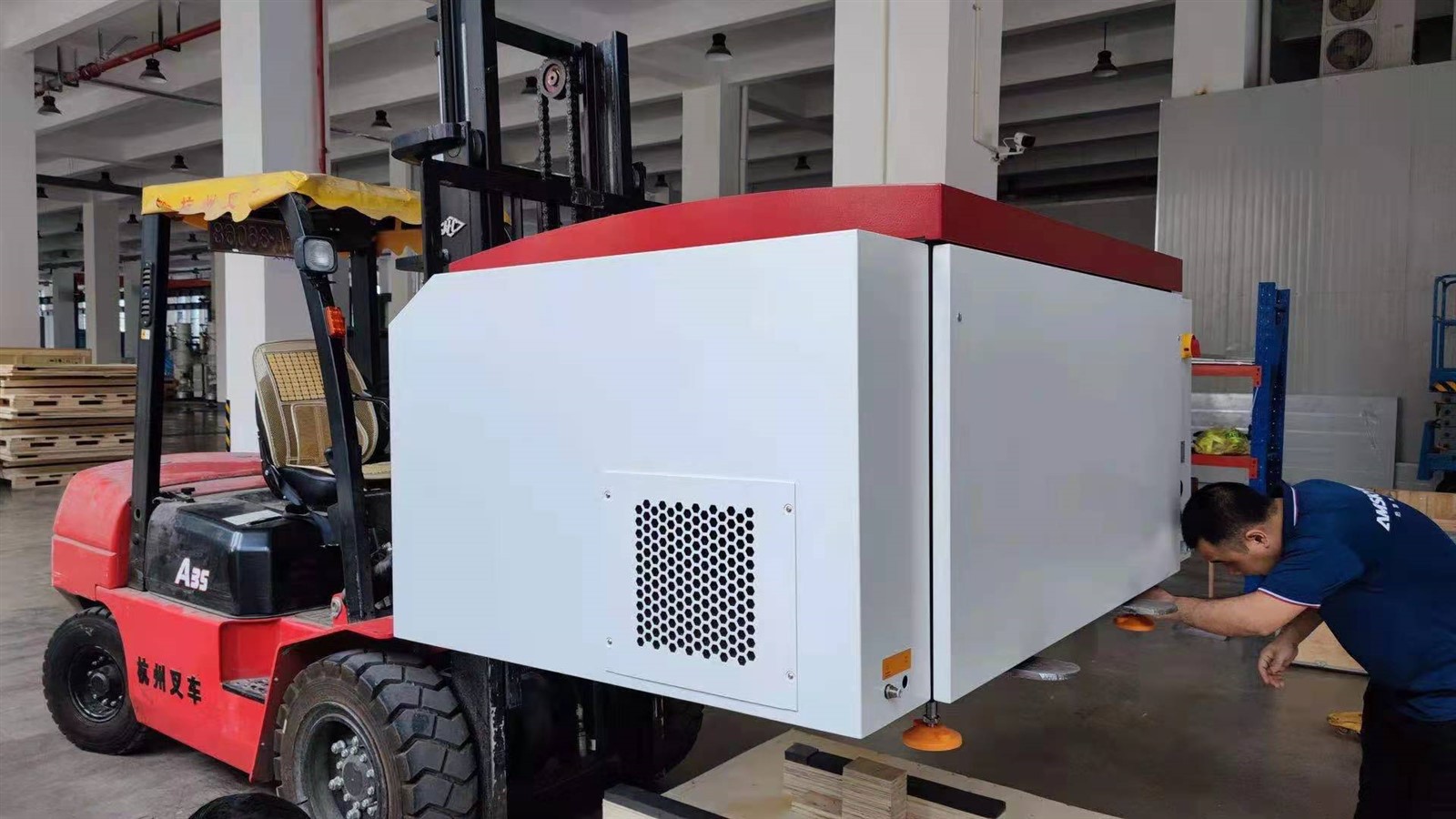

►►► Producing &Packaging



Every detail we make is carefully to guarantee product quality and service to customers.











  Our main prepress printing plate making products are full formats thermal CTP, CTCP, VLF CTP, flexo CTP,film imagesetter, CTP processor, plate punching device, CTP plate dot densitometer and so on.



Top quality components:

 Most of core components are imported from worldwide leading supplier in USA, Japan and Germany.Such as ceramic drum,laser diode or laser valve head,guide screw.



Massive production:

 Hundreds of CTP machines production per year; OEM supplier for leading agents in USA,Mexico,Turkey.



Superior dot quality reproduction :

1%-99% dot reproduction ;Up to 400lpi screening ,2400 dpi or 2540dpi optional

2)Fully qualified: for any thermal non-process or processless CTP plate and process plates.

3)The 256CH laser valve head makes the CTP speed up to 55PPH with screen square dots.



Proven by worldwide market :

Hundreds of installations with 100% satisfaction feedback from customers.



Long warranty: EcooGraphix will provide lifetime warranty for all the CTP parts as long as the customer using Ecoo plates.



Reliable technical support: Timely installation and training support;7x24 hours remote support via phone call, Teamviewer, Wechat or Whatsapp. Local service is available for emergency assistance.
