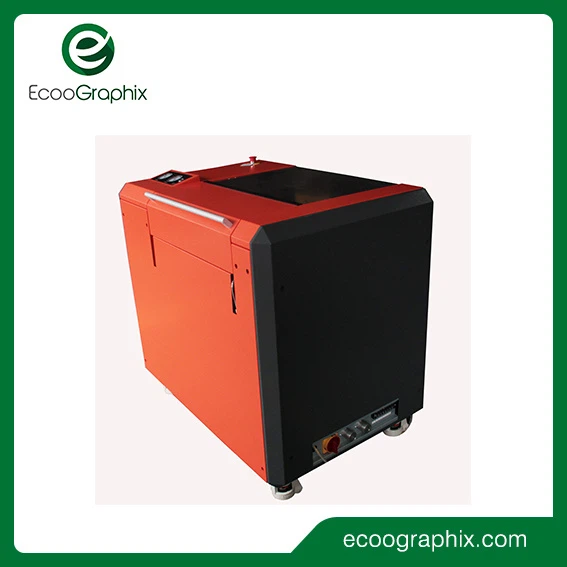

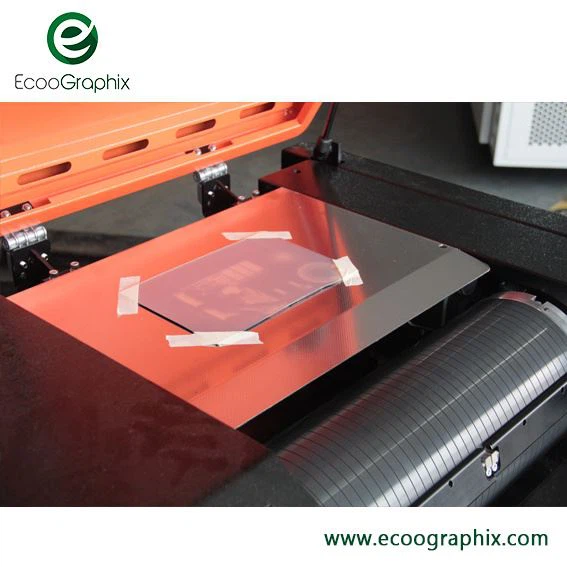

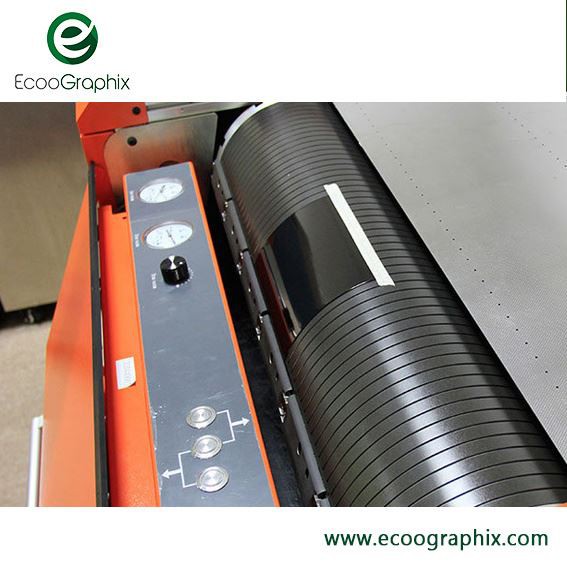

Flexo CTP Machine Plate Making Machine Prepress Digital

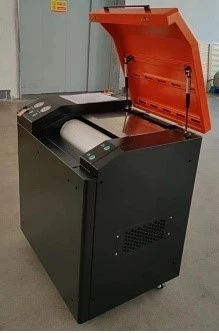

Flexo CTP FL-400E



Model	FL-400E
Laser Channel	16CH
Output Speed	1.25 m2/h
Max. Breadth	17'' x 12''/430mm x330mm
Plate Type	Digital Relief Plate(water-wash), Digital Flexo Plate(water-wash) ,Heat Corrosive Film, Digital Flexo Plate(solven based)
Plate Thickness	0.14mm - 1.7mm
Application	Label and trademark
Resolutions	4,000dpi
Plate Loading	Manual load and unload
Interface	USB2.0
Focus Adjust	Fixed focus
Laser Power	High-power semiconductor laser diode
Device Size	830x630x1055 mm (LxWxH)
Net Weight	Approoximately 280KG
Power	Single phase: 220V/50HZ, 60HZ Flexo Machine: 0.5KW, Vacuum: 1.5KW
Environment	Recommended temperature: 18-30℃ humidity: 10%- 80%



Features:

1. Drum auto balance: Our auto balance system adjusts the drum balance block in less than 5 seconds, ensuring stability during high-speed rotation.

2. Auto switch of laser channel: If any laser channels break down, our system automatically switches to the longest consecutive channel that remains operational, ensuring uninterrupted production.

3. Linear motor: Offers enhanced accuracy, simplicity, and reliability.

4. Dynamic autofocus: Maintains constant focus for sharp dots throughout the printing process.

5. Use of new water-based and solvent-based inks: Fully compliant with green and environmentally friendly printing requirements, and suitable for food packaging applications.

6. Shortened production cycles: Saves materials and manpower, reduces production costs, and improves efficiency.





About us
EcooGraphix is a leading worldwide prepress and graphics arts supply provider. With our main office in China and top quality factories mostly based in China. We provide top quality as well as cost competitive products including CTP/CTCP equipments, CTP/CTCP plates, and some other graphics arts supply. Furthermore, we treat quality service as our top priority to ensure evey single customer operates seamlessly. With hundreds of EcooGraphix CTP installations across USA, Canada, Mexico, South America, UK, Europe, Middle East, Turkey and etcs, we have gained a very fine international reputation in the industry.
1. Prepress machines and consumables, including CTP machine, flexo CTP machine, ink, developer, processor, CTP/CTCP plate and blanket.
2. Postpress equipment, including die cutting machine, automatic punching machine, book binding machine, carton erecting machine, paper cone cup machine, automatic folder gluer.

We offer top quality and competitive products and service on following categories:
For more details, please check our website ecoographix.en.made-in-china.com; ecoographix.en.made-in-china.com



FAQ

1. What are your main products?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor, Offset Plates, inks, Blankets, Postpress Packing equipments and so on. There are over 3000sets CTPs installed worldwide. Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.

We also have five offset plates production lines producing the thermal CTP plate(single and double layers), positive CTCP plates(single and double layers) and chemistry free CTP plate. You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.



2. Where is your factory?

Our machine factory is located in Hangzhou city, which is about 1.5 hour by train from Shanghai.

You are warmly welcomed to visit our factory!



3. What is your warranty for the machines?

3 years of warranty. If machine user uses our plate at the same time, we offer lifelong warranty.



4. What is the Lead Time?

Usually 20-30 days, and we will try our best to meet your demands.



5. What about the Installation and after-sales technician support?

Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.



Specification



Model	FL-600E	FL-600S
Laser Channel	16-channel	32-channel
Output Speed	1.25M2/h	2.5M2/h
Max.Breadth	680mm*430mm	800mm*660mm
Plate Thickness	0.15mm-1.7mm	0.15mm-1.7mm
Laser Power	High-power semiconductor laser diode
Plate Type	Digital relief flexo plate(water-wash), Digital flexo plate (water-wash), Digital flexo plate (solvent-wash) Steel-based digital plates (Water/alcohol washable)
Application	Label and trademark
Resolutions	4000dpi
Plate Loading	Manual load and unload
Interface	USB2.0
Focus adjust	Dynamic auto-focus
Device Size	1087x770x1000mm(WxDxH)	1087x770x1000mm(WxDxH)
Net Weight	400Kg	400Kg
Power	220V/50Hz, 60Hz, mainframe 1.5KW+Vacuum 1.1KW
Environment	Recommended temperature: 15-30ºC Humidity: 40%-70%

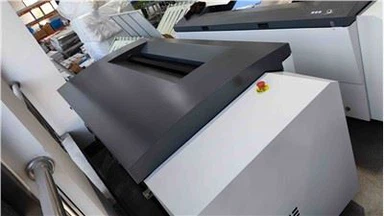

Producing and Packing





Installation Worldwide
