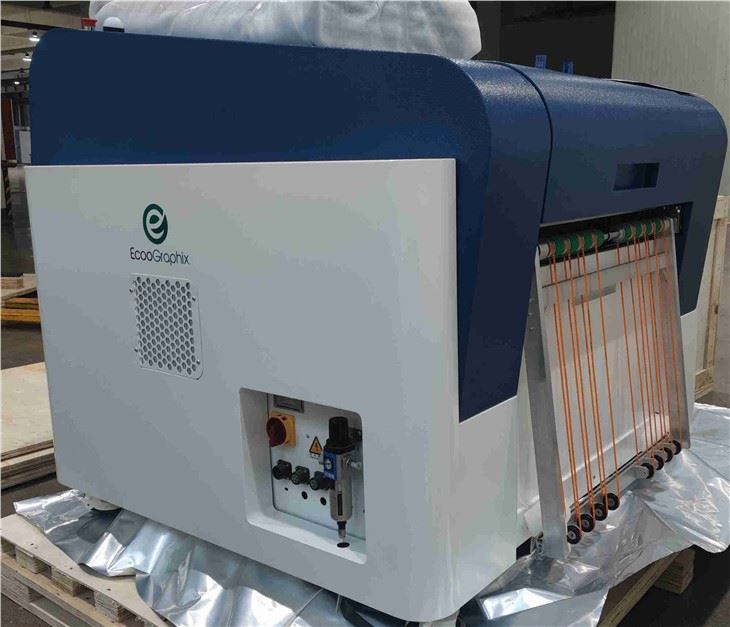

35PPH Online A2 CTP Plate Making Machine



 35PPH Online A2 CTP Plate Making Machine



T-400Q series are high speed full automatic thermal CTP offset plate machine, which adopts the laser valve, divides a laser beam into 256 channels of small laser beams that can be separately controlled, doubling the output speed; Max. plate size 800*660mm.



The square screen dot printed on the plate, with sharp edge feature and a rectangular-step-shaped distribution of energy, makes the image clearer, 10 times more accurate than 200lpi AM screening and the color saturation is increased by over 21%.





 Model: EcooSetter T-400Q V/X









 ▷▶◀◁  ▷▶◀◁  ▷▶◀◁  ▷▶◀◁  Specifications  ▷▶◀◁  ▷▶◀◁▷▶◀◁  ▷▶◀◁



Model:

T-400 Q V/X



Exposing Method:

External drum



Imaging System:

825nm laser



Throughput:

V-45, X-55plates/hour

800 x 660mm, 2400dpi, Plate sensitivity 120mj/cm²



Plate Sizes:

Max. 800mm x 660mm, Min. 300mm x 300mm



Plate Thickness:

0.15mm, 0.30mm



Resolution:

Standard: 2400dpi or 1200dpi



Repeatability:

0.01mm



Interface:

Optical fiber (Fiberway)



Plate Loading:

Standard: Single cassette autoloader with manual plate insert function



Inline Punching System:

Optional: Internal punching (maximum four sets of plate holes)



Machine Size(WxLxH)mm:

1450x1950x1290 (additional 600mm length for conveyor to wash unit)



Power Supply:

CTP (single phase: 220V, Max power(peak value): 4KW)

Simplified Autoloader (single phase: 220V; Max power(peak value): 900W)

Multi-cassette Autoloader (single phase: 220V; Max power(peak value): 1100W)



Operation Environment:

Recommended: 21-25℃, allowable temperature: 15-30℃, relative humidity: 40-70%



Size and footprint (Note: A Conveyor with length of 600mm included, not showing in the below graph)













 ▷▶◀◁ ▷▶◀◁ ▷▶◀◁ ▷▶◀◁  Selling Points▷▶◀◁ ▷▶◀◁ ▷▶◀◁ ▷▶◀◁



1# CTP machine with 0.01mm repeatability ensures the startup speed of the printing machine;

2# 800 x 660mm, 2400dpi, plate sensitivity 120mj/cm² throughput, supporting unattended production during nighttime;

3# Certified by SGS and CE;

4# Three years' laser head and main spare parts warranty for the CTPs, one year' warranty for the processor.

5# Any problems or questions, we will be at your disposal 7x24 hours.









 ▷▶◀◁  ▷▶◀◁  ▷▶◀◁  ▷▶◀◁  Advantages▷▶◀◁  ▷▶◀◁ ▷▶◀◁  ▷▶◀◁

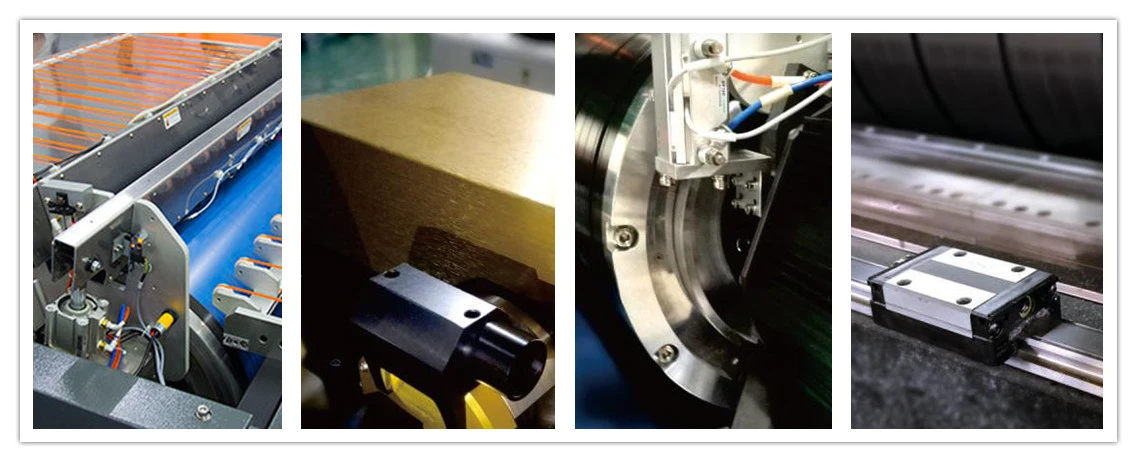

Our CTP/CTCP machine with the exterma drum makes CTP plate fit tighty on the drum, and the technology is better and advanced, making you maintain it easily.

CTP/CTCP machine replaces the traditional exposure method, which eliminates the occurrence of dirty spots and sun-out in the traditional exposure process so that you can reduce the waste of plates caused by errors in the printing process, and make your image CTP/CTCP plate more convenient and faster.

After using CTP/CTCP machine you don't need to buy the traditional film, no film expenses, so that you can save production costs.

A single operator can use CTP/CTCP machine to complete all the plate-making and plate-washing work by operating the computer, which saving you labor costs.

Our CTP/CTCP machine supplies our customers three-year warranty, including any spare parts damaged and free replacement to make sure you can use our CTP/CTCP machine with confidence, no guality concerns.

After you buy our CTP/CTCP machine, we will provide the installation site instruction manual, or assist online due to the epidemic.

In the shipping, strong wooden box transportation to ensure your CTP/CTCP machine safely.









 ▷▶◀◁  ▷▶◀◁  ▷▶◀◁  ▷▶◀◁  Producing And Packaging  ▷▶◀◁  ▷▶◀◁▷▶◀◁  ▷▶◀◁



From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.











 ▷▶◀◁  ▷▶◀◁  ▷▶◀◁  ▷▶◀◁  Certificates  ▷▶◀◁  ▷▶◀◁▷▶◀◁  ▷▶◀◁
