25pph Preprinting Online Thermal PlateSetter
Single Cassette Thermal CTP Machine From EcooGraphix
Full-automatic plate making with inline punch option
Linear motor
Motor direct drive drum
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
25PPH Preprinting Full-automatic Online Thermal PlateSetter
Model: EcooSetter T-400QS
●○●○ Characteristics
- Full-automatic Plate Making With Inline Punch Option
Equipped with automatic plate loading and unloading, automatic feeding and automatic punching function(as an option), it can work continuously without interruption to maximize the performance.

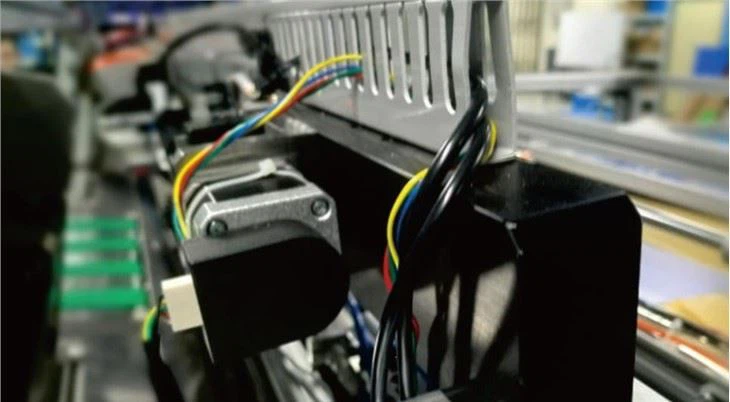

- Linear Motor
In addition to high acceleration, linear motor drive offers extremely stable operation and high positioning accuracy.

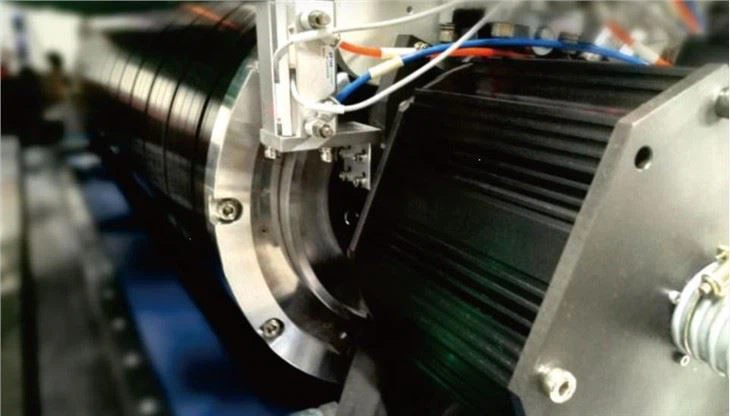

- Motor Direct Drive Drum
The application of direct motor driving drum technology makes start-up time accelerated and greatly improves production efficiency.
●○●○ Selling Points
1) CTP machine with 0.01mm repeatability ensures the startup speed of the printing machine;
2) 800 x 660mm, 2400dpi, plate sensitivity 120mj/cm² throughput, supporting unattended production during nighttime;
3) Certified by SGS and CE;
4) Three years' laser head and main spare parts warranty for the CTPs, one year' warranty for the processor;
5) Any problems or questions, we will be at your disposal 7 x 24 hours.
●○●○ Specifications
| T-400QS Specifications | |
| Model | T-400QS |
| Exposing Method | External drum |
| Imaging System | 825nm laser |
|
Throughput |
25plates/hour |
| 800 x 660mm, 2400dpi, plate sensitivity 120mj/cm² | |
| Plate Sizes | Max. 800mm x 660mm Min. 300mm x 300mm |
| Plate Thickness | 0.15mm, 0.30mm |
| Resolution | Standard: 2400 dpi or 1200 dpi |
| Repeatability | 0.01mm |
| Interface | Optical fiber(fiber-way) |
| Plate Loading | Standard: single cassette autoloader with manual plate insert function |
| Inline Punching System | Optional: internal punching(maximum four sets of plate holes) |
| Machine Size(WxLxH)mm | 1450 x 1950 x 1290(additional 600mm length for conveyor to wash unit) |
| Power Supply |
CTP(single phase: 220V, Max power(peak value): 4KW) Simplified autoloader(single phase: 220V; Max power(peak value): 900W) Multi-cassette autoloader(single phase: 220V; Max power(peak value): 1100W) |
| Operation Environment |
Recommended: 21-25℃ Allowable temperature: 15-30℃ Relative humidity: 40-70% |
Size and footprint (Note: A Conveyor with length of 600mm included, not showing in the below graph)

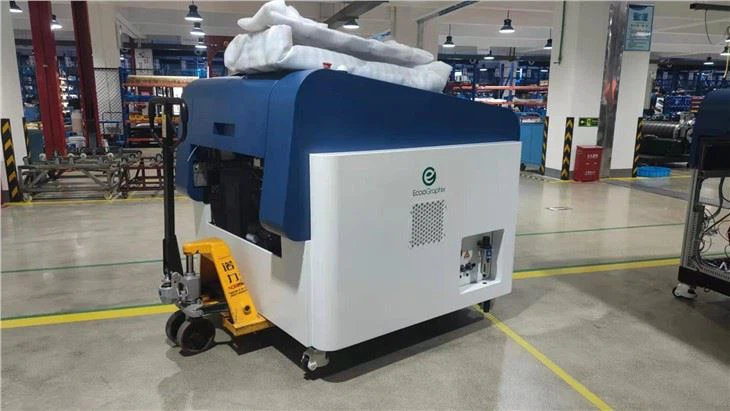

●○●○ Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
