5080dpi VLF Photopolymer Cliche Flexo CTP

Product Description

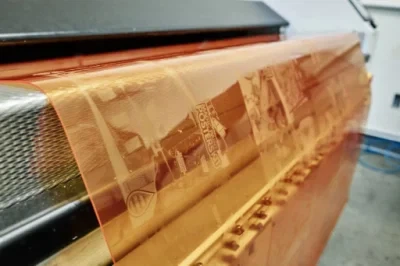

EcooGraphix 5080 Computer To Flexo Plate System Flexo CTP
Model: EcooSetter FL-5080



Advantages:
- Utilizing a high-energy power fiber laser device, our system operates at 5080 dpi, enabling rapid output of a full 50-inch by 80-inch plate in just 30 minutes. This capability allows for a 10% increase in productivity, ideal for meeting urgent job deadlines.
- Our 256-channel independent modulating technology enables precise control over each channel, significantly enhancing productivity. The rectangular laser spot shape ensures superior dot quality and image output performance.
- The H256 laser head utilizes an advanced high-power magnification optical system to achieve an optical resolution of 5080 dpi.
- At 5080 dpi, our system can image slant or circular lines as fine as 15 μm, and vertical and horizontal lines as fine as 5 μm. Each image pixel is sharp and clear, enhancing color fidelity by up to 30%.



Specifications:

Model	Vulcan 5080S	Vulcan 5080F
Exposing Method	External Drum
Imaging System	1064nm single mode Yb-doped fiber laser
Resolutions	5080 DPI (support 2540 DPI), can extend to support 10160 DPI
Exposure Size	Max. size 1270mm x 2032 mm, Min. size 200 x 200 mm
Max. Output Speed	3.5 M²/h (at 5080dpi)	5.5 M²/h (at 5080dpi)
	50*80in, 45min	50*80in, 30min
Applicable Plate Type	Dry ablation film, Digital water washing letterpress plate, Digital water washing flexo plate, Digital solvent washing flexo plate, Digital thermal flexo plate
Plate Thickness	0.14 mm-6.35 mm
Plate Loading	Semi-automatic /Manual plate mounting
Device Size	2997 x 1750 x 1537mm (LxWxH)
Net Weigh	2500 Kg
Power Supply	Three Phase Voltage: 380V, Max Power (Peak value): 16KW
Environment Operating	Operating temperature range: 15-30°C Recommended temperature:21-25°C Humidity:40%-70%

Difference Between Round Dot And Rectangle Dot:

The difference between round dots and rectangle dots primarily relates to their shape and the resulting impact on printing quality:

Round Dot:

Shape: Circular or spherical in shape.

Advantages:

Better at reproducing fine details.

Smooth gradients, especially in mid-tones.

Generally, round dots are more forgiving with regard to moiré patterns.

Disadvantages:

May create a rosette pattern, which can affect image clarity.

Less efficient in filling space, which may result in a slightly lower printing speed.

May require higher line screens to achieve comparable detail to rectangular dots.

Rectangle Dot:

Shape: Rectangular or elongated in shape.

Advantages:

More efficient in filling space, leading to higher printing speed.

Less likely to produce a rosette pattern.

Typically better at reproducing text and lines.

Disadvantages:

Less smooth in mid-tones and gradients compared to round dots.

More susceptible to moiré patterns, especially at certain angles.

May require additional attention to dot gain and other factors affecting print quality.

Application and Usage:

Round Dots: Often preferred in applications where smooth gradients and fine details are critical, such as in photographic reproductions, high-quality magazines, and art books.

Rectangle Dots: Typically used in applications where speed and efficiency are important, such as newspaper printing, packaging, and some commercial printing.

Summary: The choice between round and rectangle dots depends on the specific requirements of the printing job. Each type of dot has its advantages and disadvantages, and the selection often involves balancing image quality, printing speed, and the intended use of the printed material.


Flexo Polymer Plate Making Processing:

1. Back Exposure and Main Exposure:  LED5280



2. CTP laser drawing: FL5080

3. Washing Machine: P5280

4. Drying Machine: LSD5280
