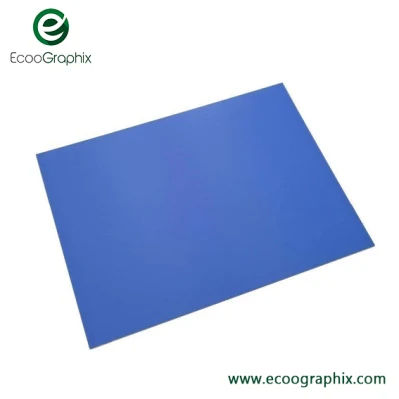

Ecoographix Double Coating Printing Ctcp Conventional CTP Plate
EcooGraphix CTCP Plate is ideal for long-run, high-grade commercial, and newspaper printing. Its unique production technology and high-quality raw materials ensure high photosensitive speed, excellent half-tone dot reproduction, and stable performance.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
High Sensitive Aluminum Plate Positive CTCP Plate CTP Plate
Model: Ecoo-CTCP-ES
EcooGraphix CTCP Plate can be used for long runs high-grade commercial and newspaper printing. Unique production technology and high-quality raw materials make the plate gain high photosensitive speed, good half-tone dot reproduction and stable performance.
Characteristics:
1. High-quality aluminum substrate and photosensitive coating.
2. Multi-layer composite grain structure for precise half-tone dot reproduction.
3. High development tolerance level and ease of operation.
Specification
| Plate Model | ECOO-CTCP-ES |
| Plate Type | Positive CTCP Plate(Single Layer) |
| Application | High-quality commercial and newspaper printing |
| Substrate | Electro chemically Grained and Anodized lithographic Aluminum |
| Aluminum alloy | Standard 1050 Alloy |
| Gauge | 0.15,0.20, 0.25,0.30, 0.40 (mm) |
| Maximum short grain width | Maximum width 1280 mm |
| Length of Run | Unbaked: 80000 to 100,000 impressions Baked: Over 100000 impressions |
| Exposing | |
| Plate setters | Luscher , Basysprint, Cron, EcooGraphix UV series CTCP machine |
| Exposure energy | 50 - 70 mJ/cm² |
| Spectral Sensitivity | 400 - 430 nm - UV Laser |
| Resolution | 2 - 99% LPI 200 |
| Coating | Blue |
| Photosensitive Wave Length | 405nm |
| Developing | |
| Processor | All kinds of brands. |
| Developer | Any CTCP plate developer or our developer |
| Processing temperature | 23°C +/- 2°C |
| Developing time | 25 - 30 sec |
| Processing Speed | 0.80 - 1.20 m/min |
| Storage and handling | |
| Safelight | Handle under yellow safelight (UV free) |
| Shelf Life | 12 months under recommended storage conditions |
| Packaging | Available in all standard formats, including bulk packaging options such as APL packaging |
| Storage and handling | Stored in a cool and dry environment, away from excessive cold, heat and humidity |
