Positive Thermal CTP Plate

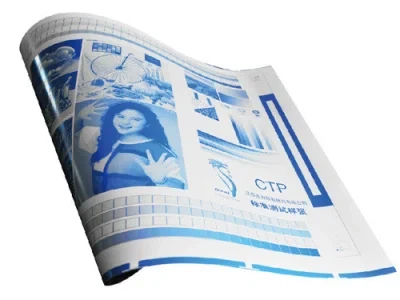

Long Runs Offset Printing Double Layered Positive Thermal CTP Plate

1. Application



The ECOO-ED double-layered thermal CTP plate technology incorporates a highly chemically resistant second layer, enabling extended print runs without the need for baking. Unlike single-layered CTP plates, ECOO-ED offers enhanced sensitivity, robust resistance, and the capability to print in both AM and FM screening.

2. Advantages

-Extended run length with non-ablative coating - Resistant to UV ink; compatible with both conventional and UV ink.

-Mature product with excellent stability and wide processing latitude.

-Compatible with most plate setters, processors, and solutions.

3. Features

-Positive writing thermal plate

-Double-layer system

-Manufactured with high-grade aluminum sourced from Europe

-Broad adaptability for various plate setter brands

-Non-ablative coating

-Run lengths of up to 100,000 impressions

-UV ink support for up to 50,000 impressions

-Capable of printing both AM and FM screening









4. Specification



General Information
Plate Model	ECOO-ED
Plate Type	Positive Thermal CTP Plate(Double Layer)
Application	High-grade commercial and newspaper printing
Substrate	Electro chemically Grained and Anodized lithographic Aluminum
Aluminum alloy	Standard 1050 Alloy
Coating	Two-layer system, IR sensitive, positive acting
Gauge	0.15,0.20, 0.25,0.30, 0.40 (mm)
Maximum short grain width	Maximum width 1280 mm
Plate intermix	Kodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates, Kodak PP3 positive plates, Agfa Energy Elite, etc.
Length of Run	Ordinary Ink: 100,000 to 200,000 impressions UV Ink: 50,000 to 100,000 impressions



Exposing
CTP Plate Making Machine Plate setters	Kodak: Trendsetter/Lotem/Magnus; Fuji: Javelin T9000HS Heidelberg : Top setter/Supra setter; Luscher : Xpose Plate setter Screen: PT-R, Creo: Scitex EcooGraphix Thermal CTP Tseries
Exposure energy	110 - 130 mJ/cm²
Spectral Sensitivity	800-850 nm – Peaks 830nm
Resolution	1-99% at 200 LPI
FM capability	20 micron stochastic
Image color	Blue-green to Pale Green



Developing
Processor	All the kinds of Brands.
Developer	Kodak Gold Star or our developer
Processing temperature	23°C +/- 2°C
Developing time	25 - 30 sec
Processing Speed	0.80 – 1.20 m/min



Storage and handling
Safelight	Daylight handling
Shelf Life	12 months under recommended storage conditions
Packaging	Available in all standard formats, including bulk packaging options such as APL packaging
Storage and handling	Stored in a cool and dry environment, away from excessive cold, heat, and humidity.



5. More details



EcooGraphix offers the most complete plate portfolio with each plate complying with international leading quality standards.



● Thermal line: Ecoo-ES single layer thermal plate; Ecoo-ED Double layer thermal plate; Ecoo-TSR super run length double layer thermal plate;

Ecoo-G, processless (DOP, development on Press) plate

● UV-CTP line: Ecoo-CTCP-ES, single layer ctcp plate; Ecoo-CTCP-ED, double layer ctcp plate; Ecoo-H, processless CTCP plate (DOP)

● Violet: Ecoo-V, violet plate for commercial and newspaper

● PS plate



6. Producing and Packing
