Automatic Single Paper Square Bottom Bag Making Machine
The Ecoo 450AB processes paper or printed paper sheets as raw materials. It automatically conveys the materials through the machine to perform top folding, tube forming, gluing, hole punching, bottom folding, placement of the bottom reinforced card, pasting, bottom sealing, and gluing. Finally, the machine outputs a complete square-bottom paper bag (excluding handling the handle rope and top reinforced card pasting).
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product Description

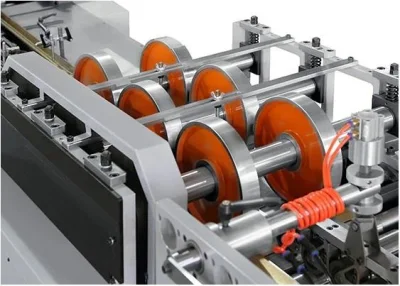

Machine details and technology
The Ecoo 450AB processes paper or printed paper sheets as raw materials. It automatically conveys the materials through the machine to perform top folding, tube forming, gluing, hole punching, bottom folding, placement of the bottom reinforced card, pasting, bottom sealing, and gluing. Finally, the machine outputs a complete square-bottom paper bag (excluding handling the handle rope and top reinforced card pasting).
| Specification | |
| Model | Ecoo 450AB |
| Bag size | 200-450mm / 7.87-17.72inch |
| Bottom width | 80-160mm/ / 3.54-6.69inch |
| Paper Sheet Width | 600-1240mm / 23.62-48.81inch |
| Paper Sheet Length | 320-600mm / 12.25- 23.62 inch |
| Materials and Paper Weight | Brown Kraft Paper, Laminated Paper, Art Paper, White Cardboard Grey Paperboard, ect. Kraft paper:120-250g/m² Art paper+PP laminating:157-230g/m² White cardboard+PP laminating:150-250g/m² Grey cardboard+PP laminating:150-300g/m² Recommend that paper thickness above 200gsm die cutting before operation |
| Bottom Card Size | Max.160*440mm; Min 80 x 194mm |
| Bottom reinforced card thickness | 150-450g/m2 |
| Punching Hole Distance | 100,140mm (Punching hole distance can be customized according to actual needs, the above is the standard hole distance) |
| Hole Diameter | Φ4,Φ5,Φ6 |
| Working Speed | 40-70pcs/min. |
| Glue Type | Water-based glue (additional hot-melt glue system available for side gluing) |
| Total Power | 35KW 380V 50HZ |
| Machine weight | 17t |
| Machine size | 21000*2100*1920mm |
| Note: Speed varies depending on paper type and quality, paper thickness, printing effect, with or without laminating PP film, glue type and quality, paper size, climate and workshop environment. |
|
Bag types and its making machine
The style of top cardboard
The cut-off head card of the paper cutter is placed neatly on the guide rails, and added at the right time, and the machine never needs to be stopped.
The method of top cardboard pasting
The innovative mechanical structure allows the head card to be handed over twice, and the positioning method enables the head card to be accurately positioned and pasted accurately and correctly.
The position of the cardboard pasting
The head card is flexible in position and can be attached above or below the discount line. It is optional by the user.
Gluing method
Not only, the user can choose the area of the glue on the head card, but also the glue on both sides or the glue on one side, and the glued area of the flip part can also be freely selected, which fully meets the different requirements of all paper bags. The side glue adopts the double glue injection method of hot glue and cold glue, which not only ensures the beauty of the bag, but also can save cost.
The function of top insert-in
The innovative patented mechanical structure is used to completely simulate the manual bag making method when the bag tube is formed. The two sides of the paper are completely inserted and bonded, which is beautiful and firm.

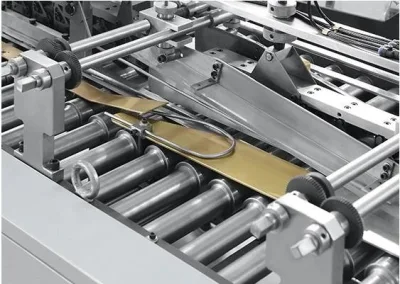

Folding method
Adopting the innovative patented mechanical structure, the paper bag is positioned by the mechanical device during the folding process. No matter it is thin paper or thick paper, both can be accurate.

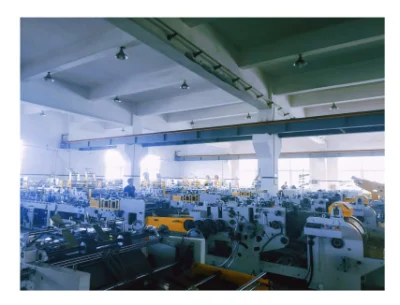

Our certificate and installation
Some tips for application
1. Use appropriate paper rolls for bag making.
2. Avoid using overly dry or statically charged paper. Do not use curled paper (for sheet-fed machines). Avoid excessively twisted or soft cord.
3. If using paper with laminated PP film, ensure the laminated layer thickness is uniform.
4. Use our recommended glue specifications for each gluing section, adjusting according to ambient temperature and humidity.
5. Bag width and bottom width have limitations based on their combination.
6. Longitudinal glue should be applied to the bag face with a 25-30mm gluing space (inner gusset gluing optional).
7. When using full printing rolls or PP laminated paper, ensure bottom and longitudinal gluing parts are left. Allow approximately 7mm print overlap or lamination overlap.
8. Production capacity depends on paper quality, paper weight, printing, glue quality, cord quality, bag size, and operating environment.
9. Specifications are subject to change without notice.
