SuperTrimmer 101
The Supertrimmer-100 features sturdy configurations and precise trimming accuracy with a user-friendly touch-screen control system. This machine could be used standalone, or connected in-line with perfect binder for efficient book production..
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Supertrimmer-100 Three-Knife Trimmer
The Supertrimmer-100 features sturdy configurations and precise trimming accuracy with a user-friendly touch-screen control system. This machine could be used standalone, or connected in-line with perfect binder for efficient book production..
● Streamlined process: feeding, positioning, pushing-in, pressing, trimming, output.
● Robust one-piece machine frame for a reduced vibration and higher trimming precision.
● No book no cut control avoid unnecessary movements and extend the machine lifetime.
| One set of Supertrimmer-100 Touch screen control panel Horizontal infeed carriage belt from the right Vertical infeed unit Three-knife trimmer unit Gripper delivery Output conveyor With 1 air compressor |
Machine Model | Supertrimmer-100 |  |

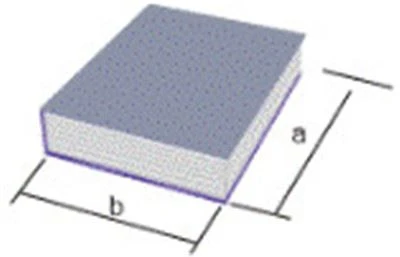

Untrimmed Book Size (a*b) | Max. 445*310mm (Off-line) | |
Min. 85*100 mm (Off-line) | ||
Max. 420*285mm (In-line) | ||
Min. 150*100mm (In-line) | ||
Trimmed Book Size (a*b) | Max. 440*300mm (Off-line) | |
Min. 80*95 mm (Off-line) | ||
Max. 415*280mm (In-line) | ||
Min. 145*95mm (In-line) | ||
Trimming Height | Max. 100 mm | |
Min. 10 mm | ||
Mechanical Speed | 15-45 cycles/h | |
Power Required | 6.45 kw | |
Machine Weight | 4,100 kgs |
Features
1 | Supertrimmer-100 features with precise trimming accurancy with touch screen control panel. | |

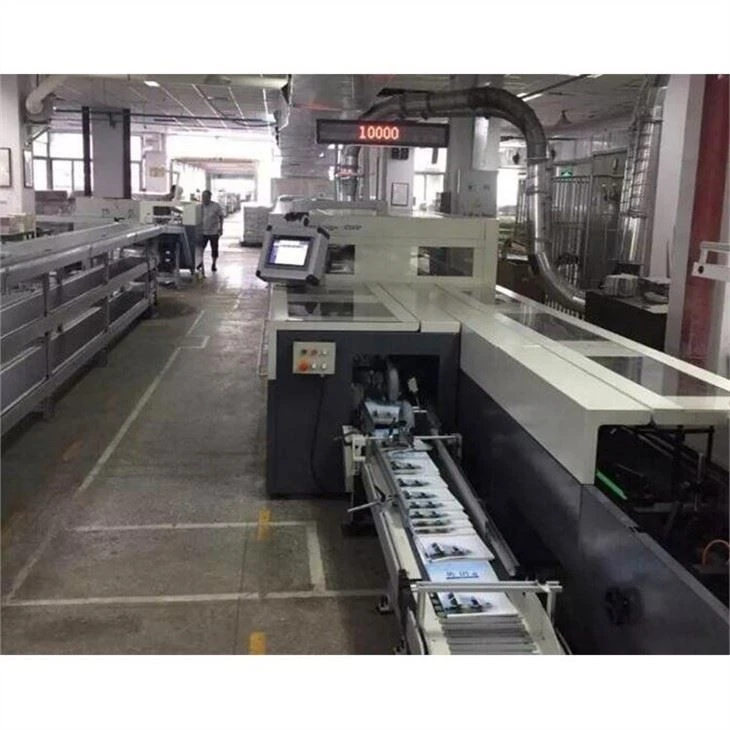

2 | It can be used as a standalone machine, or connected in-line with perfect binder for a complete binding solution to meet different customer’s requirements. | |
3 | No book-no cut control to avoid unnecessary movements. | |
4 | One-frame machine body for long lasting and consistent high-quality trimming | |
Critical Parts List of Supertrimmer-100 | ||
Item no. | Parts Name | Brand |
1 | PLC | Schneider (French) |
2 | Inverter | Schneider (French) |
3 | Touch Screen | Schneider (French) |
4 | Power supply switch | Schneider (French) |
5 | Switching power supply | East (Sino-Japanese joint venture) |
6 | Proximity switch | P+F(Germany) |
7 | Safety switch | Schneider (French)， Bornstein(Germany) |
8 | Buttons | Schneider (French) MOELLER (Germany) |
9 | Contactor | Schneider (French) |
10 | Motor protection switch, circuit breaker | Schneider (French) |
11 | Bearing | NSK/NTN (Japan), FAG (Germany), INA (Germany) |
12 | Air cylinder | CKD(Japan) |
13 | Electromagnetic valve | CKD(Japan) |
14 | Air valve | CKD(Japan)
|
Machine Layout
