PUR Book Binding with Trimmer
Including a touch screen control panel, 15 book clamps, 2 milling stations, and a moveable side gluing station, a stream cover feeding station, a nipping station and automatic lubrication system.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Challenger-5000 Book Perfect Binding System (Full Line)
Challenger-5000 Book Perfect Binder
The 15-clamp perfect binder Challenger-5000 is an ideal binding solution for small to medium production runs with max. speed up to 5,000 cycles per hour. It offers simple operation, and reliable performance with excellent cost/performance ratio.
Items | Standard Configurations | ||
a. | G460P/20Stations Gatherer | Including 20 gathering stations, a hand feeding station, a reject-gate for faulty signature. | 1 Set |
b. | Challenger-5000 Binder | Including a touch screen control panel, 15 book clamps, 2 milling stations, and a moveable side gluing station, a stream cover feeding station, a nipping station and automatic lubrication system. | 1 Set |
c. | Supertrimmer-100 | Including touch screen control panel, horizontal in-feed carriage belt from the right, vertical in-feed unit, three-knife trimmer unit, gripper delivery, and discharge conveyor. | 1 Set |
d. | SE-4 Book Stacker | Including stacking unit, book pushing unit and emergency exit. | 1 Set |
e. | Conveyor | Including connection conveyor. | 1 Set |
Options
1. Nordson Nozzle PUR System (DP20 + EP48V)
Standard Configurations
The Challenger-5000 Binding System is an ideal binding solution for small to medium production runs with max. speed up to 5,000 cycles per hour. It featurs operational convenience, high productivity, flexible changeover for multiple binding methods, and excellent cost/performance ratio.
Outstanding Features:
● High net output at 5000 cycles/hour with thickness up to 50mm.
● Position indicators provide user-friendly operation and precise adjustments.
● Spine preparation with powerful milling motor for top-quality spine forming.
● Rigid nipping and cover scoring stations for strong and accurate binding.
● Europe imported spare parts guarantee strong and consistent performance.
● Flexible changeover between hotmelt EVA and PUR binding method.
Machine Details:
| Touch screen control system Interactive operating menu provides simple and quick control of the machine. Production data, machine speed and malfunction information are cleearly displayed on the touch screen. |
| An inclined infeed station |
| 15 Book Clamps All book clamps opening are adjusted at a time. Adjustment is more convenient thanks to the position indicator, which can provide stable and reliable clamping force to ensure high accuracy of each production step. |
| Two spine preparation stations Space-saving designed spine preparation stations provides milling, notching, and brushing. Working together with the reliable paper dust extractor, makes sure book spine is well prepared before glue application. |
| Gluing Application System The standard configuration inclues One Hotmelt Spine Glue Station and One Side Glue Station. The glue voulme in the glue tank are kept in a stable level, since the glue in the pre-melt tank and the glue tank is automatically cycled. Movable gluing stations allow easy changeover between PUR and EVA in mintues. |
| A stream cover feeding station
|
| A nipping station Thanks to the accurate and reliable cam structure nipping mechanism, cover can be precisely and firmly nipped with the book block. |
| A declined delivery unit Specially designed lay-down conveyor can prevent book spine from deformation and connects the binder with the conveyor and trimmer. |
| A paper dust extractor Paper waste can be removed by the powerful paper dust extractor to keep the system clean. |

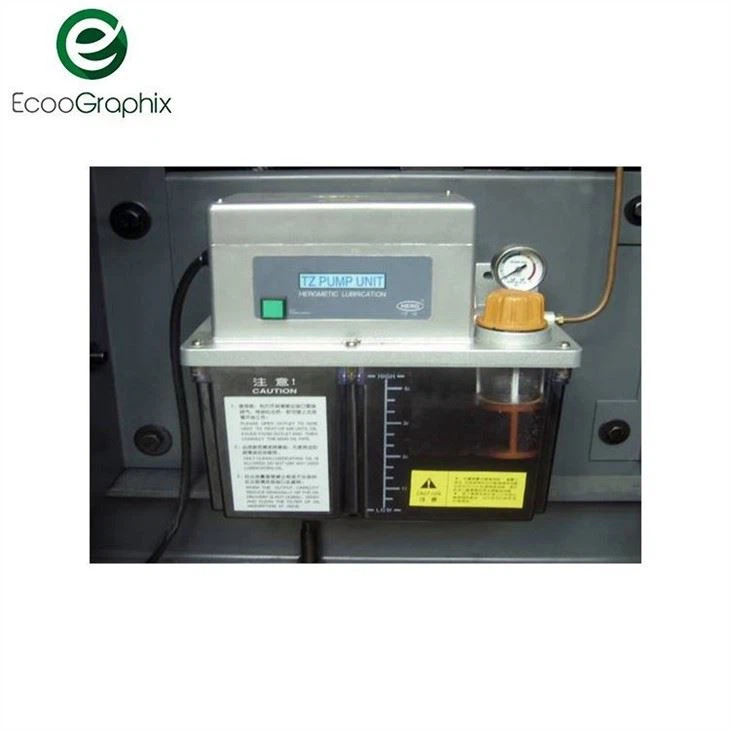

| An automatic lubrication system |
Configuration 4: SE-4 Book Stacker
| One set of SE-4 book stacker Stacking Unit Book Pushing Unit Emergency Exit |
Configuration 5: Conveyor
| Connection conveyor Total length: 20 meters. 1 book emergency exit. LCD main control. Each section of conveyor speed adjusted by ratio or separately. |
Option: Nordson Nozzle PUR Application System
| Nordson Nozzle PUR System (DP20 + EP48V)
|
4) Critical Parts List
Critical Parts List of JMD Challenger-5000 Binding System | |||
Item no. | Parts Name | Brand | Remark |
1 | PLC | Schneider (French) | Gatherer, |
2 | Inverter | Schneider (French) | Gatherer, |
3 | Touch Screen | Schneider (French) | Gatherer, |
4 | Power supply switch | Schneider (French) | Binder, Trimmer |
5 | Power supply switch | MOELLER (Germany) | Gatherer |
6 | Main motor of binder, Milling station motor | SIEMENS (Germany) | Binder |
7 | Switching power supply | Schneider (French) | Gatherer |
8 | Photoelectric switch | LEUZE (Germany), P+F(Germany), OPTEX (Japan) | Gatherer, |
9 | Proximity switch | P+F(Germany) | Gatherer, |
10 | Safety switch | Schneider (French), Bornstein(Germany) | Gatherer, |
11 | Buttons | Schneider (French), MOELLER (Germany) | Gatherer, |
12 | Contactor | Schneider (French) | Gatherer, |
13 | Motor protection switch, circuit breaker | Schneider (French) | Gatherer, |
14 | Air pump | ORION (Sino-Japanese joint venture) | Gatherer, |
15 | Air compressor | HATACHI | Gatherer, |
16 | Bearing | NSK/NTN (Japan), FAG (Germany), INA (Germany) | Gatherer, |
17 | Chain | TSUBAKI(Japan), TYC(Taiwan) | Gatherer, |
18 | Electromagnetic valve | MAC (USA), CKD(Japan) | Gatherer, |
19 | Air cylinder | CKD(Japan) | Gatherer, Trimmer |
4) Technical Data | |||
Machine Model | G460P |  | |
No. of Stations | 20 Stations (4 stations as 1 unit) | ||
Min. Sheet Size (a) | 196-460mm | ||
Min. Sheet Size (b) | 135-280mm | ||
In-line Max. Speed | 10,000 cycles/h (1:2 Mode) | ||
Off-line Max. Speed | 4800 cycles/h | ||
Power Required | 14.1kw | ||
Machine Weight | 4500kg | ||
Length of Machine | 17594mm | ||
Machine Model | Challenger-5000 |
| |
No. of Clamps | 15 | ||
Max. Mechanical Speed | 5000cycles/h | ||
Book Block Length (a) | 140-460mm | ||
Book Block Width (b) | 120-270mm | ||
Book Block Thickness (c) | 3-50mm | ||
Cover Length (d) | 140-470mm | ||
Cover Width (e) | 250-640mm | ||
Power Required | 55kw | ||
Machine Model | Supertrimmer-100 |
| |
Untrimmed Book Size (a*b) | Max. 445*310mm (Off-line) |  | |
Min. 85*100 mm (Off-line) | |||
Max. 420*285mm (In-line) | |||
Min. 150*100mm (In-line) | |||
Trimmed Book Size (a*b) | Max. 440*300mm (Off-line) | ||
Min. 80*95 mm (Off-line) | |||
Max. 415*280mm (In-line) | |||
Min. 145*95mm (In-line) | |||
Trimming Height | Max. 100 mm | ||
Min. 10 mm | |||
Mechanical Speed | 15-45 cycles/h | ||
Power Required | 6.45 kw | ||
Machine Weight | 4,100 kgs | ||
