UV Spot Varnish Coating Machine
SD 1060 is the high Speed UV Spot and Overall UV Varnish Spot Coating machine adopts upper-swaygripper- pass -sheet method to enable max speed up 9500 sheets/hour. It is used for water based blister matt varnish coating, skin varnish coating(for tooth brush or toys packaging),gloss coating, or substitute for plastic laminating, or spared UV varning.

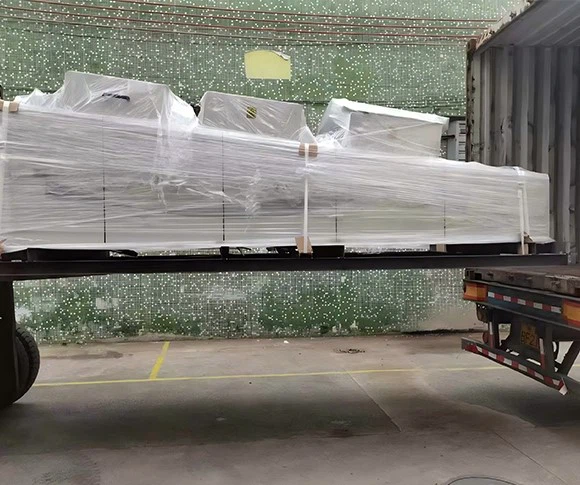

- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Products Description
High Speed UV Spot Coating Machine
High Speed UV Spot and Overall Coating machine adopts upper-swaygripper- pass -sheet method to enable max speed up 9000 sheets/hour. UV curing system with Teflon conveying belt has characteristic of higher speed, precise orientation and UV curing higher efficiency and lower power consumption. After sheet travelling through UV coater and being transferred directly by teflon belt, grippers can not be heated by high temperature from UV light, which prevent them from being damaged or deformed to ensure easy maintenance.
Best quality from China, the machines can be used for water based blister varnish coating, skin varnish coating(for tooth brush or toys packaging),gloss coating, or substitute for plastic laminating, or UV varnishing, with speed up to 9000s/h.
Main Features
1.Feeder
High speed feeder with four sucking and four forwarding suckers can feed sheet smoothly.
2.Sheet Transferring Unit
Upper swing sheet transferring method can transfer sheet smoothly at high speed to pres-sure cylinder exactly.
3.Varnish Supply
Steel roller and rubber roller with metering roller reversing and doctor blade design control by varnish consumption and volume to meet the demand of products and operate easily. (Varnish consumption and volume are determined by LPI of ceramic anilox roller)
4.Transferring Unit
After sheet is transferred from pressure cylinder to gripper, air volume blowing for paper can support and reverse sheet smoothly, which can prevent sheet surface from being scratched.
5.Conveying Unit
Upper and lower conveying belt can form thin sheet to be curved for smoothly delivery.
6.Sheet Delivery
Automatic pneumatic patting sheet controlled by photoelectric detecting sensor make sheet pile fall automatically and collect sheet neatly. Electronic control can take out sheet sample safely and quickly for inspecting.
Products Paremeter
|
High Speed UV Spot and Overall Coating Machine |
|
|
Model |
Ecoo SD-1060 |
|
Max.sheet size |
730x1060mm |
|
MIN.sheet size |
310X406mm |
|
Max.coating size |
720x1050mm |
|
Sheet thickness |
80-500gsm |
|
Coating registration accuracy |
±0.2mm |
|
Production speed |
9000sheets/hour |
|
Weight |
8T |
|
Dimension |
10460x2725x1930mm |
|
Power |
44KW |
|
Remark: Production speed depending on sheet weight, size and quality |
|
Standard Equipment:
Auto Feeder
Multifunctional Coating Unit
IR Drying Units
UV Curing System
Auto Delivery Unit
Auto Control
Optional Equipment:
Non-stop Feeding and Delivery Mechanism
Preloading Trolley
Servo Control Feeder
Ceramic Anilox Roller
Company Profile
EcooGraphix is a leading global supplier and service provider of printing and packaging equipment and supplies. It began in 2010, developing and manufacturing CTP machines and printing plates.
- Our team has 25 years of experience
- EcooSetter CTP machines and Ecoo printing plates have now become globally renowned brands
- Currently, there are over 500 printers worldwide running EcooGraphix CTP and printing plates daily.
- Approximately 45 international distributors worldwide collaborate with EcooGraphix.

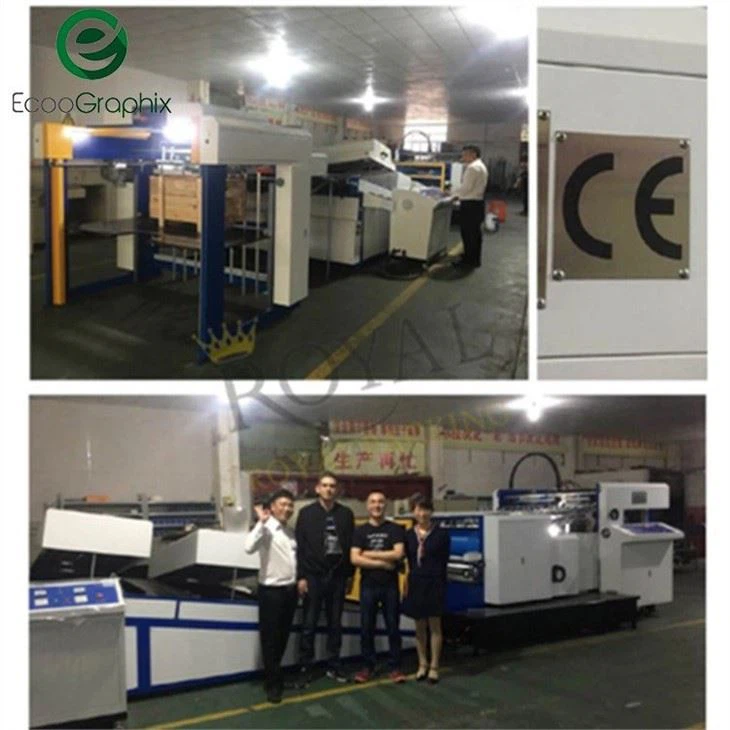

Production Equipment
