16PPH Automatic UV CTP PlateSetter
Automatic CTCP Machine From EcooGraphix
UV-CTP PlateSetter
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
16PPH-28PPH Automatic CTCP(UV-CTP) PlateSetter Offset Plate Machine
Model: EcooSetter UV-800 (F, S, E) A
EcooGraphix Conventional CTP (UV-CTP/CTCP) Plate Making Machine is the first Prepress necessity of quick short-run offset printing. It can output the images on the computer to printing CTP plate directly through the CTP machine and save the film and labor.
By the EcooGraphix CTP, the customer can get excellent output image quality, highly reliable stability, less space occupied with more flexibility.
EcooGraphix UV-800 A series Conventional CTP are for A1 or B1 paper size newspaper or commercial printing with the output speed 16PPH to 28PPH. The A series are automatic online CTP machines, can be connected with Autoloader, Bridge and Processor.
--------- ○ --------- ○ Specifications ○ --------- ○ ---------
| ECOO UV-800 Series Automatic CTP Specifications(online system) | |||
| Model | UV-800FA | UV-800SA | UV-800EA |

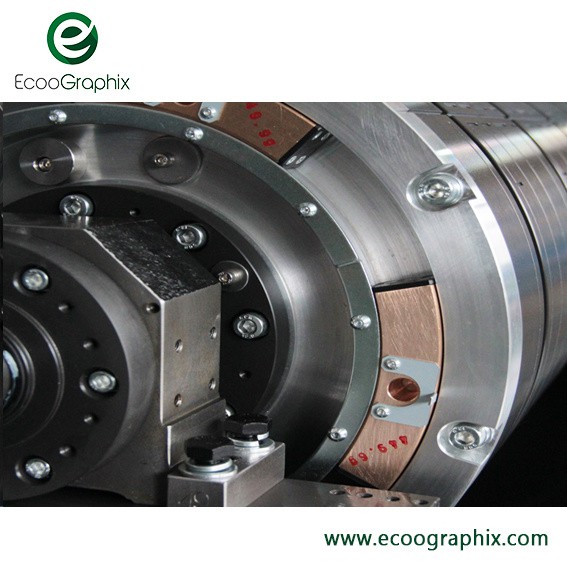

| Exposing Method | External drum | ||
| Imaging System | 64-channel | 48-channel | 32-channel |
| Discrete 400-410nm laser diode | |||
| Throughput | 28PPH | 22PPH | 16PPH |
| 1030mm x 800mm, 2400dpi | |||
| Plate Sizes | Max. 1163mm x 940mm Min. 400mm x 300mm (300mm x 250mm is available) |
||
| Exposing Size | Max. 1130mm x 884mm | ||
| Media Type | Positive UV-CTP plate, high-sensitive PS plate | ||
| Plate Thickness | 0.15mm to 0.30mm | ||
| Resolution | 2400dpi (Option: 1200dpi) | ||
| Repeatability | ±5μm(Continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%) | ||
| Interface | USB 2.0 | ||
| Plate Loading | Semi automatic | ||
| Net Weight | 1200kg | ||
| Machine Size (WxLxH)mm | 2127 x 1610 x 1058 | ||
| Power Supply | Single phase: 220AC, +6%, -10%, Power consumption: 4KW | ||
| Environment | Recommended: 21-25ºC, Max. 15-30ºC, Humidity: 40-70% | ||
--------- ○ --------- ○ Benefits Of Using CTCP Machine ○ --------- ○ ---------
* CTCP Machine eliminates the demanding and tedious steps required for conventional plate making.
Typically, you won't need film workflow and stripping operations, which is fundamental since it saves lots of time.
* The overall print quality of the final product when using CTCP Machine is ultra-high. Ideally, this is often a result of eliminating the dot gain associated with plate imaging from the film.
* This machine enhances easy copy changes since they are made to a digital file imaged onto a plate.
Of course, this is contrary to producing new films and strip them into a flat for burning on the plate.
* There is significant human error reduction when using CTCP Machines since the need for manual stripping and plate-making is eliminated.
* CTCP Machine enhances easier, safer and relatively efficient than storing film and flats. Films and flats can easily be damaged by handling or storage and need a large amount of physical space.
* It is available in different output capacities, which is vital since it allows you to choose one that meets your demands.
In essence, you can obtain a CTCP Machine based on your budget and other printing needs.
--------- ○ --------- ○ Producing And Packaging ○ --------- ○ ---------
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
--------- ○ --------- ○ Certifications ○ --------- ○ ---------
Video ☞ https://youtu.be/aAW4eCX0ZD4
