UV 800A Online Offeset CTCP Machine

UV 800A Online Offeset CTCP Machine

UV-CTP From EcooGraphix

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction





 UV-800A Online Offeset CTCP Machine

Upgrade Instantly, Change Nothing-Unlock Top-Tier Performance from Your Standard PS Plates



Designed for commercial printers seeking extreme cost-effectiveness and superior quality. Achieve print fineness comparable to CTCP Machine at a significantly lower total cost of ownership.

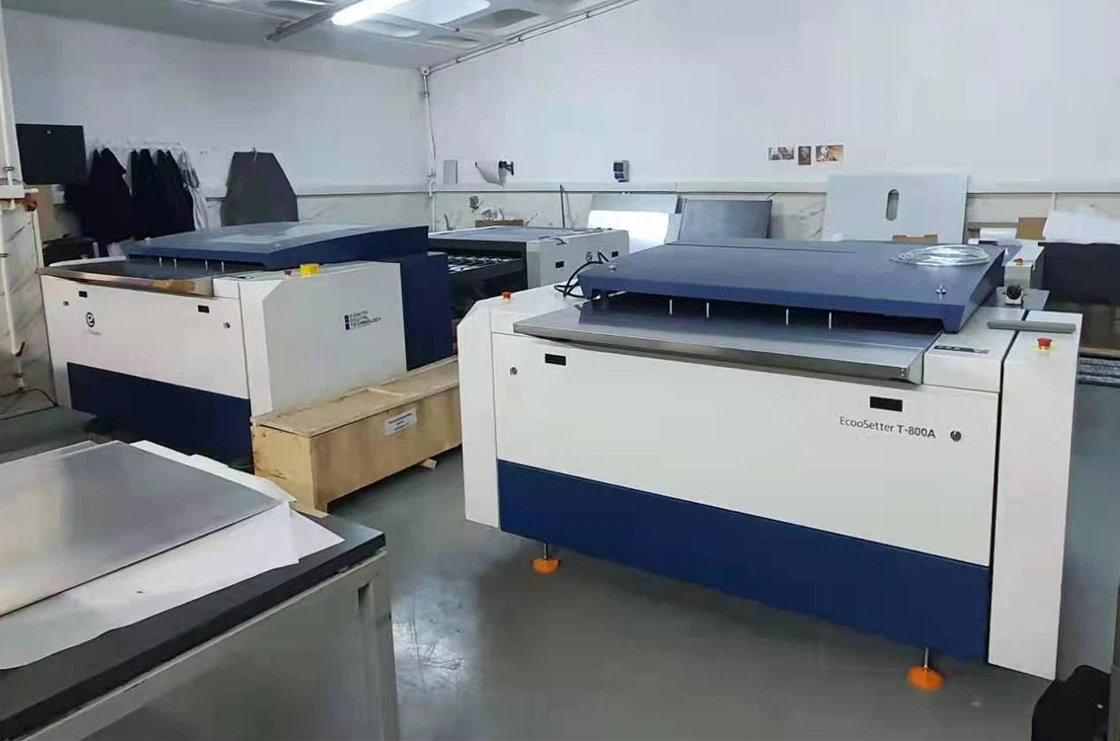

product-674-446



 Model: EcooSetter UV-800A F/S/E









▣▣▣▣▣▣▣▣▣▣▣▣▣▣▣  Advantages & Features  ▣▣▣▣▣▣▣▣▣▣▣▣▣▣▣



1. Disruptive Economic Advantage – "The Cost Revolution"

- Very Low Plate Cost;

- Low Total Cost of Ownership (TCO);

- Lower Maintenance Costs.

2. Exceptional Print Quality – "Uncompromised Quality"

- High Resolution & Precise Dots;

- Excellent Printability;

- Long-Run Capability.

3. High Stability & Ease of Use – "Rock-Solid Reliability"

- Ultra-Long UV Lamp Life;

- Online Automated Production;

- Simple Operation, Easy Mastery.

4. Environmental & Workflow Adaptability – "The Smart Choice"

- Greener Consumable Choice;

- Open Workflow Connectivity;

- Smooth Path to Digitalization.









▣▣▣▣▣▣▣▣▣▣▣▣▣▣▣  Specifications  ▣▣▣▣▣▣▣▣▣▣▣▣▣▣▣



EcooSetter UV&T Series Automatic CTP Specifications(Online System)
Model UV-800XA UV-800FA UV-800SA UV-800EA T-800XA T-800FA T-800SA T-800EA
Exposing Method External Drum
Imaging System 128-channel 64-channel 48-channel 32-channel 256-channel 64-channel 48-channel 32-channel
Discrete 400-410nm laser diode Discrete 830nm laser diode
Throughput 45 PPH 28 PPH 22 PPH 16 PPH 55 PPH 28 PPH 22 PPH 16 PPH
1030mm × 800mm, 2400dpi
Plate Size Max. 1163mm × 940mm, Min. 300mm × 400mm
Media Type Positive UV-CTP Plate, High-sensitive PS Plate Positive Thermal CTP Plate
Plate Thickness 0.15mm - 0.30mm
Resolutions 2400dpi, 1200dpi (Option)
Repeatability ±5µm ( Continuous exposing for 4 times or above on the same plate with a temperature of 23℃ and humidity of 60% )
Interface USB 2.0
Plate Loading Automatic
Net Weight 1200 KG

Device Size(L x W x H)

2127 × 1610 × 1058 mm
Power Supply Single-phase: 220AC, +6%, -10%, Power Consumption: 4KW
Environment Recommended: 21-25℃, Max.15-30℃, Humidity: 40-70%









▣▣▣▣▣▣▣▣▣▣▣▣▣▣▣  Machine Picture  ▣▣▣▣▣▣▣▣▣▣▣▣▣▣▣

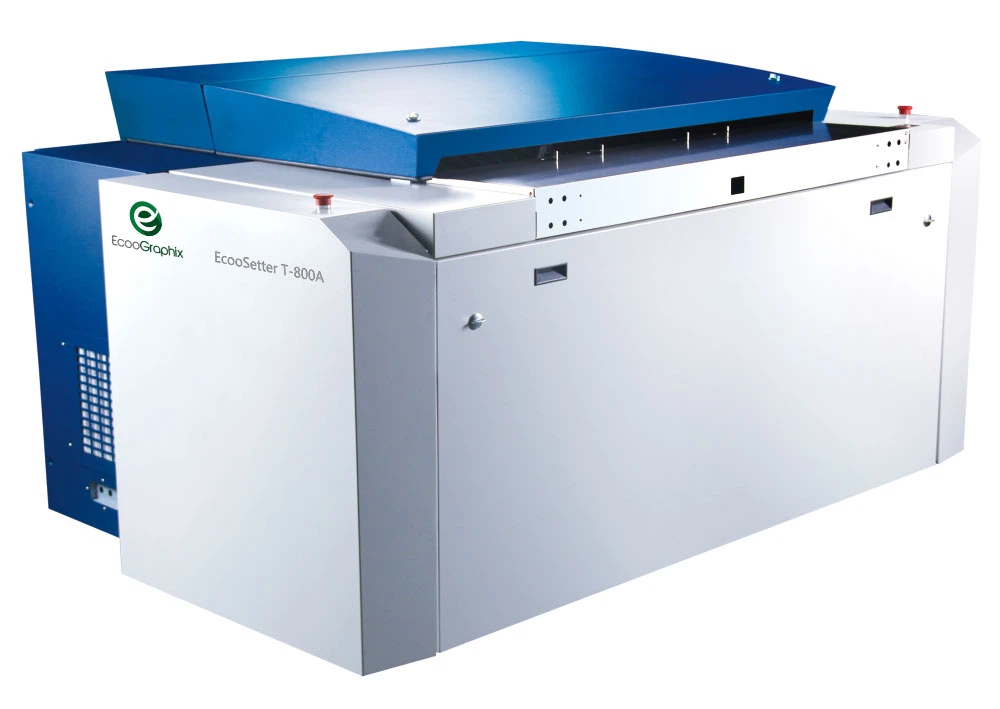

product-677-480

product-676-380









▣▣▣▣▣▣▣▣▣▣▣▣▣▣▣  Working Process  ▣▣▣▣▣▣▣▣▣▣▣▣▣▣▣



The working principle of a UV-CTP machine work is quite technical.



Simply, this equipment has a thermal material, which becomes the image area and transferred to the plate.



The machine is integrated with various technologies such as a wetting agent that keeps non-image clean during a print run.



CTP machine can produce a short run immediately after imaging.



In case a longer run is required, thermal material must be baked onto the cylinder.



After the printing is complete, thermal image material is automatically cleaned from the plate cylinder.


This allows the cylinder to be ready for reimaging of the next task.

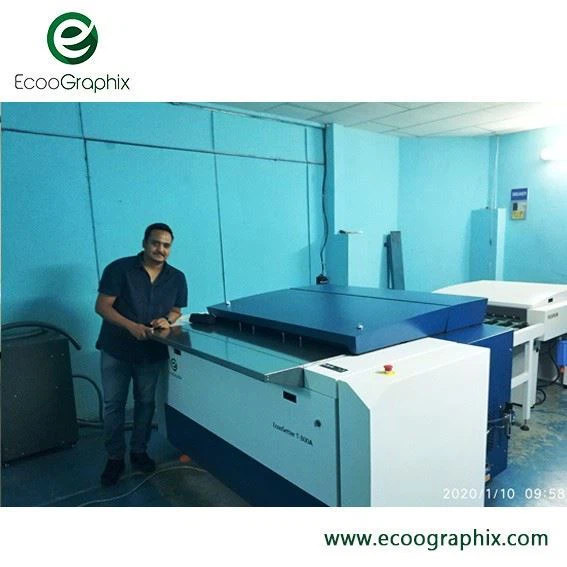

▣▣▣▣▣▣▣▣▣▣▣▣▣▣▣  Installations in Other Countries  ▣▣▣▣▣▣▣▣▣▣▣▣▣▣▣



UK, Italy, Spain, Hungary, Russia, Mexico, Canada, Turkey, Brazil, Colombia, Ecuador, South Africa, Nigeria and etc.

product-682-262

product-682-682

product-679-509









▣▣▣▣▣▣▣▣▣▣▣▣▣▣▣  Producing and Packaging  ▣▣▣▣▣▣▣▣▣▣▣▣▣▣▣



From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.



product-689-268

product-676-338

product-688-518

product-674-508









▣▣▣▣▣▣▣▣▣▣▣▣▣▣▣  Certificates  ▣▣▣▣▣▣▣▣▣▣▣▣▣▣▣



product-678-678

product-677-677









▣▣▣▣▣▣▣▣▣▣▣▣▣▣▣  FAQ  ▣▣▣▣▣▣▣▣▣▣▣▣▣▣▣





 Q1: What are your main products ?
A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.
You can get the equipment and consumables all in one and no worry about the after-sales service from our company.





 Q2: Can you also supply the Workflow and RIP ?
A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.




 Q3: What about the installation and after-sales technician support ?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
