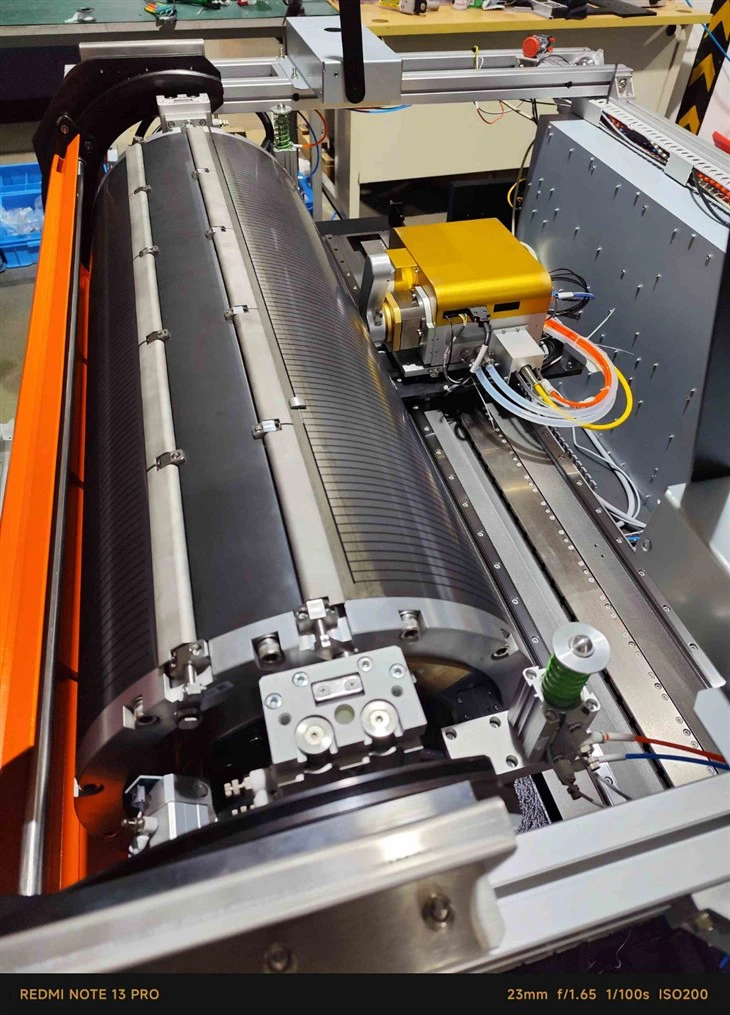

VLF FL4835 Flexo CTP For Corrugated Carton PrePrinting

                                                                         Corrugated Flexo Printing Polymer Plate CTP Machine





  FL4835 takes the unique 256CH laser valve head, can output very sharp screen dots . It is more suitable for corrugated boxes with high printing precision standards (such as text line drafts), large quantities, rapid requirements, large areas, and low prices, with the all in on Processor,which can do combined back exposure, main exposure,washout, drying and post exposure and detacking. The system can save lots of room space and cost.





EcooGraphix Flexo CTP Strength:



1)Easy to use :

After placing plate, the only step you need to do is to press a button to finish the plate loading within seconds.

2)Automatic Focusing :The machine can be used for different thickness plate from 0.15mm to 6.35mm. Dynamic autofocus system keeps accurate focus constantly to ensure sharp dot.

3)Auto balance system of drum takes no more than 5 seconds to adjust drum balance block to a position, make the drum stable in high speed rotation.

4)Auto switch of laser channel: When any laser channels breaks down, laser channel auto switch system can continue output through the longest consecutive channel that remains working to ensure non-stop production.

5)Linear motor : More accurate, more simple and more reliable.

6)Long lifetime and warranty of spare parts: Laser Lifetime:>10000h





Model	ECOO-4835S	ECOO-4835F
Exposing Mothod	External Drum
Imaging System	1064nm filber laser device (H256 heads)
Throughput	3 sqm/hour at 5080 dpi	5 sqm/hour at 5080 dpi
	48*35 inch, about 20 minutes	48*35 inch, about 12 minutes
Exposing Size	Max.size 1200*1020mm, min. Size 200*200mm
Media Type	Dry ablation film, Digital water washing letterpress plate. Digital water washing flexo plate, Digital solvent washing flexo plate
Plate Thickness	0.140mm to 6.35mm
Resolution	5080DPI (compatible with 2540DPI) , can extend to support 10160DPI
Plate Loading	Automatic/Manual plate loading
Net Weight	1500kg
Machine Size (WxLxH)mm	1974*1750*1537mm (L*W*H)
Power Supply	Three phase voltage: 380V, Max. Power (peak value) 16 kw
Operation Environment	recommended:15-30℃, Max.21-25℃, humidity:40-70%



Model	VULCAN-5080S	VULCAN-5080F
Exposing Mothod	External Drum
Imaging System	1064nm filber laser device (H256 heads)
Throughput	3 sqm/hour at 5080 dpi	5 sqm/hour at 5080 dpi
	50*80 inch, takes 45 minutes	50*80 inch, takes 30 minutes
Exposing Size	Max.size 1270*2032mm, min. Size 200*200mm
Media Type	Dry ablation film, Digital water washing letterpress plate. Digital water washing flexo plate, Digital solvent washing flexo plate
Plate Thickness	0.140mm to 6.35mm
Resolution	5080DPI (compatible with 2540DPI) , can extend to support 10160DPI
Plate Loading	Automatic/Manual plate loading
Net Weight	2500kg
Machine Size (WxLxH)mm	2970*1705*1537mm (L*W*H)
Power Supply	Three phase voltage: 380V, Max. Power (peak value) 16 kw
Operation Environment	recommended:15-30℃, Max.21-25℃, humidity:40-70%



5080 Computer To Flexo Plate system adopts the latest development of H256 laser head technology.

A full size of 50 inch×80 inch plate output only needs 30 minutes.



Digital Flexo CTP Plate making process
First, use a computer to create the graphics, images, text, etc. to be engraved.

Then special computer imaging software will convert the graphic information of the original into executable relevant parameter data such as depth, size and shape for modulation of the laser beam.

The control system then controls the movement of the laser beam according to the command. The laser acts on the surface of the material and uses the power of the laser to ablate graphic information into dots.

After the ablation, the dot residues are processed by a special device.

Equipment Advantages
1,Using a high energy power fiber laser device, at 5080dpi,it only takes 30 minutes to output a full image size of 50inch x B0inch plate, it can also allow to increase the productivity by 10% for urgent need, in this way, the customer can meet the deadline of some urgent jobs



2,The unique independent modulating technology allows the laser to split into 256 channels with control ofeach channel which preatly increase the productivity. The laser spot shape is rectangle type which can deliver amuch better dot quality and performance of image output.

3,The H256 laser head use a new high power magnificationoptical systemn to achiewe a 5080dpi optical resolution.

4, At 5080dpi, it can image slant or circular line as fine as15um; for vertical and horizontal line, it can be as fine as5um. Each image pixel is very sharp and clear. This can increase the color fidelity by 30%.



6,The Laser head can also support 2540dpi output, lf the requirement of imaging output is not critical,the mode of output can be adjusted to double line overlapping exposure which can greatly increase productivity to150%.
7,Voice coil motor device is used for dynamic auto focus function,This can ensure accurate focus during exposure on the non-unifor surface of fexo plate.



8,Double lines and triple lines overlapping functions can allow the LAMS ablation with the superior image quality and efficiency for flexo plate exposure.

9,Instanttemperature monitoring and pre calibration of laser head can make sure the laser exposure stability and reliability.
This new generation of Light Valve Device can also allow1.to raise the resolution to 10160dpi. At this super high resolution,the laser spot size is 2.5umx2 5um and can image 5 or less um lines.



Other Equipment needed for flexo plate making:



Flexo Plate Back Film Exposing machine



Flexo Plate Washing Machine



Flexo Plate Light Treatment Dring Machine



Flex Plate All In One Processor
