Sensitive Double Layer Thermal Positive CTP Plate
ECOO-TSR Thermal CTP Plate with Dual Coating is a positive-working plate designed for commercial printing applications. This plate is heat-tolerant and supports both conventional ink and UV ink.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Double Coating Thermal CTP Plate for UV Ink Offset Printing
Model: ECOO-TSR
Brief introduction
ECOO-TSR Thermal CTP Plate with Dual Coating is a positive-working plate designed for commercial printing applications. This plate is heat-tolerant and supports both conventional ink and UV ink.
Characteristics
1. Exceptional Endurance: ECOO-TSR stands out as the most durable CTP plate solution, boasting an impressive lifespan of 400,000 impressions without requiring baking and 100,000 impressions with compatibility for UV ink. Its dual-layer coating ensures resilience against solvents, rendering it an ideal option for large-scale printing facilities.
2. Premium Print Quality: This plate offers outstanding resolution and precise tone reproduction, even in challenging press conditions such as UV ink and alcohol substitutes. Its advanced technology provides extensive processing adaptability, ensuring remarkable stability and the capability to achieve FM imaging with excellence.
3. Unrivaled Performance: Providing unmatched resolution and accurate tone reproduction, even in the most rigorous press settings, including those utilizing UV ink and alcohol substitutes. Its state-of-the-art technology offers wide processing latitude, ensuring exceptional stability and the capacity to deliver superior FM imaging outcomes.
Specification
| Model | ECOO-TSR |
| Plate Type | Positive Thermal Digital Plate |
| Application | Commercial, newspaper, and packaging print |
| Substrate | Electro chemically Grained and Anodized lithographic Aluminum |
| Gauge | 0.15, 0.30mm |
| Maximum short grain width | Maximum width 1280 mm |
| Coating | Blue |
| Length of Run | Unbaked: 400,000 impressions UV Ink:100,000 impressions |
| Plate setters | All thermal CTP machine |
| Aluminum | Standard 1050 Alloy |
| Exposure energy | 120 - 150 mj/ m² |
| Developing time | 25-30 sec |
| Spectral Sensitivity | 780 - 850 nm |
| Resolution | 1-99% @ 400LPI |
| Developer | Ecoo DV-T Series Developer |
| Processing temperature | 23ºC+/-2ºC |
| Processing Speed | 0.80 - 1.20 m/min |
| safelight | Daylight handling |
| Shelf life | 12-18 months under recommended storage conditions |
| Packaging |
Offered in various standard sizes, including bulk packaging choices like APL packaging. |
| Storage and handling |
Kept in a cool and dry location, protected from extreme temperatures and moisture. |

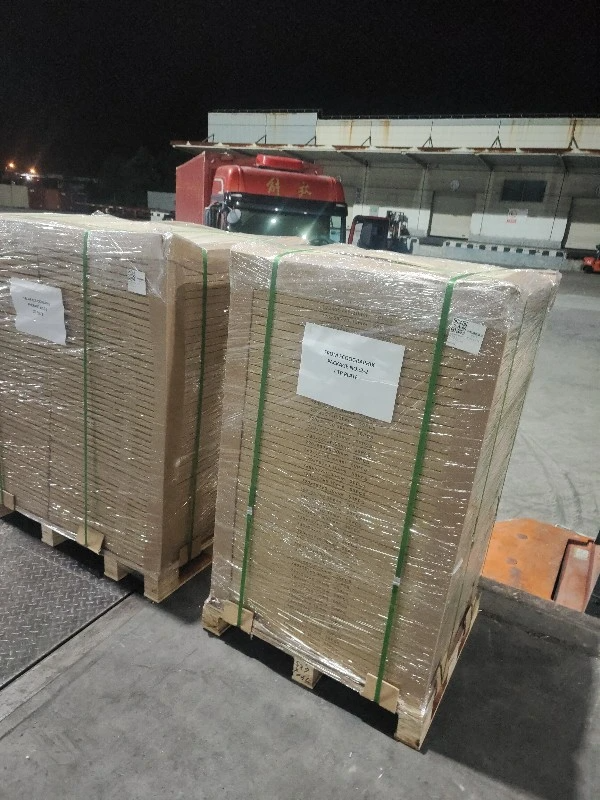

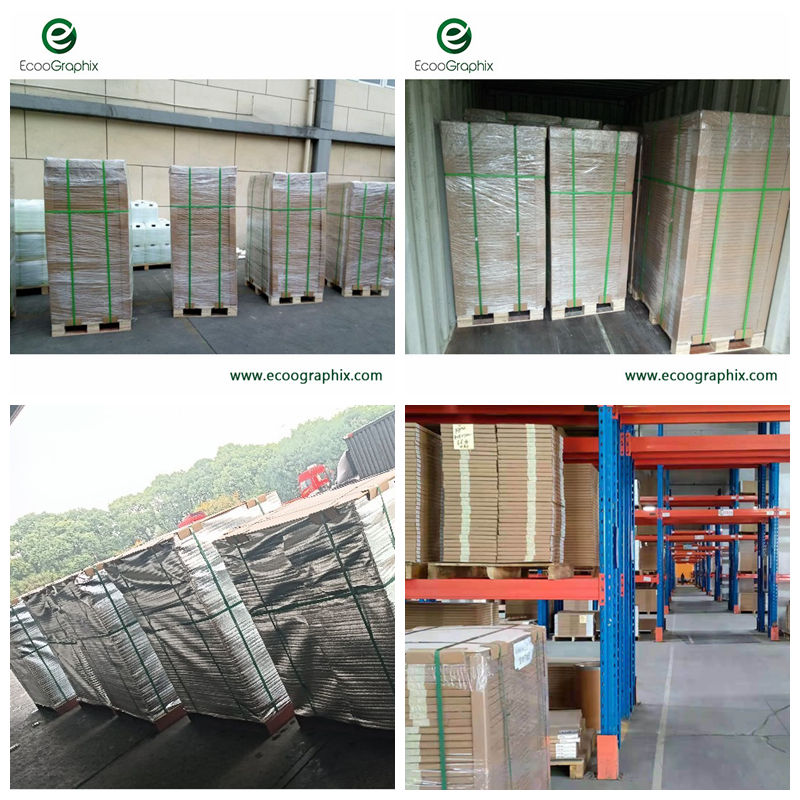

Producing and Packing
From manufacturing to shipment, we meticulously attend to every aspect to ensure exceptional product quality and customer service.
Certifications
FAQ
Q1: Can I receive a sample?
he airfreight charge fluctuates depending on package dimensions, weight, and destination for delivery. Alternatively, you can arrange for pickup through your local agent.
