Vertial Heating PS Plate Oven Baking Machine
It is designed to bake the plate to prolong the plate run length to meet some super-long printing jobs. But as more and more normal plate has better performance on running length without baking, this machine's demanding drops.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Brief introduction

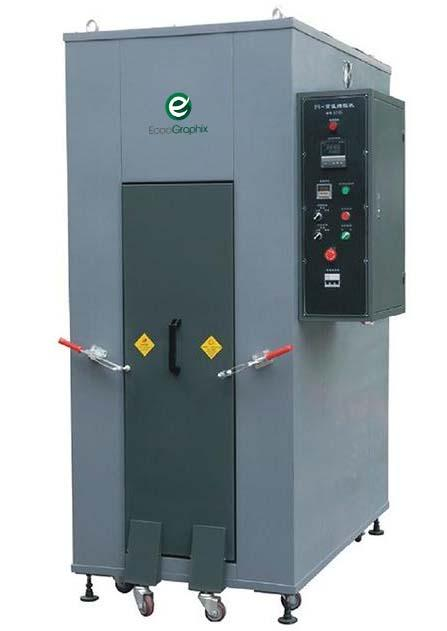

KYHL Vertical PS Plate baking machine (High-Temperature Oven) is designed to bake the traditional PS plate and CTP high sensitive plate. in order to improve the printing quantity and prolong the run length of plate, considering super long some printing jobs. By baking plate, the PS plate's run length could increase by 3-5 times.
This model has 3 format options. Please find more details in third part(the technical data table)
Features

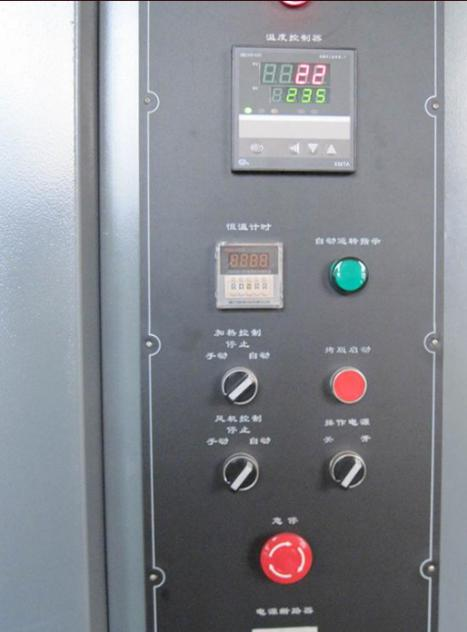

1. Steady hot wind circulation, average baking temperature on plate. Two separate temperature control system could avoid the breaking down for any single fault.Timing starting/shutting equipment, whole sealing machine case design, avoid the hot air running out.
2. Fine plate locking equipment, the plate can be taken out conveniently.
3. Automatic alarm when the roasting is over, accurate temperature control,fine heat insulationsystem, plate do not bend.
Technical data
| Vertical Plate Baking Machine | |||
| Model | KYHL1100 | KYHL1300 | KYHL1450 |
| Max. plate size(mm) | 1100 x 850 | 1300x 1100 | 1450 x 1200 |
| Setting plate quantity | 4 piece / 8 piece | ||
| Temperature control area | 50C-280C | ||
| Power supply | AV 380V 50/60HZ 60A | ||
| Heating efficiency | 12KW | 15KW | 15KW |
| Net weight | 550kg | 600kg | 800kg |
| Dimension(mm) | 1650x1280x2250 | 1770x1280x2250 | 2200x1280x2450 |
