Book Binding Machine PUR Gluing Perfect Binder

4 Clamps Book Binding Machine PUR Gluing Perfect Binder





Introduction:

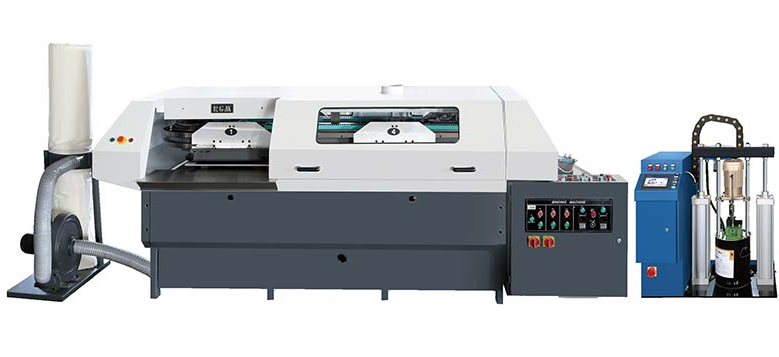

The TBT50/4D is an advanced 4-clamp PUR perfect binder optimized for efficient short and medium-volume production. It achieves a maximum mechanical speed of 2000 copies per hour, equipped with stepless variable speed control, a PLC programmable controller, and independent temperature control. The double glue pot includes overload protection.

This machine represents the apex among global counterparts, featuring an upper-sealing clamp mechanism protected by multiple national patents. It meets European standards and holds a CE certificate, reinforcing its position as a frontrunner in the industry.



4 Clamps PUR Automatic Book Binding Machine
Binding Size	Max:450X320mm ; Min:150X105mm
Binding thickness	2-50mm
Binding speed	Max:2000 Books/ Hour
Cover Size	Max. 640*450mm
Cover Weight Range	Normal Paper 81.4 to 302.4 gsm Coated Paper 104.7 to 348.9 gsm
Power required	13Kw
Weight	2100Kg
Dimensions	3100x1300 x1250mm



Features



Quick Setup and High Automation: All setups can be performed automatically by inputting data into the touch screen or scanning the barcode information of the book block and cover.

Fast Automatic Changeover: Job changeover is accurately completed in as short as 10 seconds for adjusting book thickness and formats at high speeds.

Wide Binding Compatibility: The Digital Robot 2000A offers robust binding for various types of book blocks, including loose-sheet, cold-glued, and sewn book blocks.

Optional PUR Gluing Station: Switching between EVA and PUR gluing systems can be easily completed in just a few minutes.

Soft Book Lay-down System: Specially designed to maximize protection of the bound book spine from slight deformation.

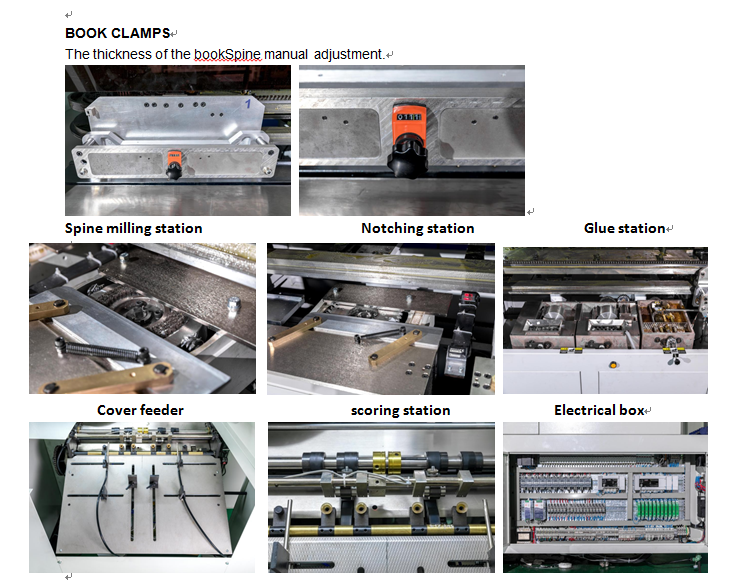

After data input, the following units adjust automatically:

Spine milling station: Width adjusts automatically.

Notching station: Width adjusts automatically.

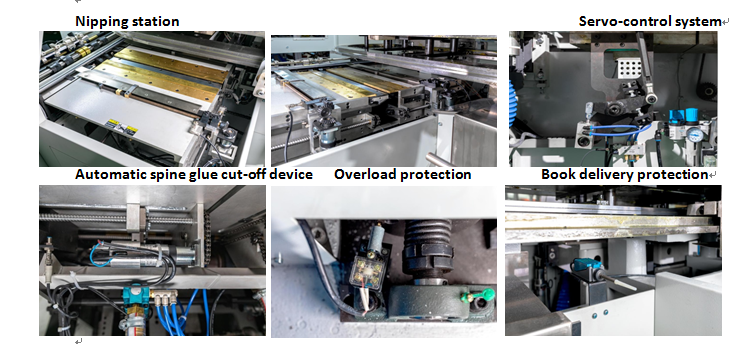

Side glue station: Width adjusts automatically, with automatic spine glue cut-off.

Cover guides on the cover feeder: Width adjusts automatically.

Scoring: Width adjusts automatically.

Cover guides (front and side) on the nipping table: Width adjusts automatically.

Book block width between nipping plates: Automatic adjustment.

Advanced Features: Equipped with step-less speed regulation, PLC program control, precise temperature control, automatic detectors, and overload protection, this equipment is designed for flexible and rapid binding of small to medium book quantities.









3.5







FAQ:

1. What are your main products?
We offer a full range of printing materials covering prepress, pressroom, and post-press machines and consumables. We serve hard around the clock for dealers and end users who are in either the packaging industry or the book printing industry. We mainly supply Prepress CTP machines, Printing materials, Digital Label Printers, Digital Book Binders, Digital Foil Stamping and Die Cutting Machine, UV Inkjet Printer, Paper Slitting and Rewinding machines, Paper Box/Cup Forming machines, and so on.

2. Where is your factor?

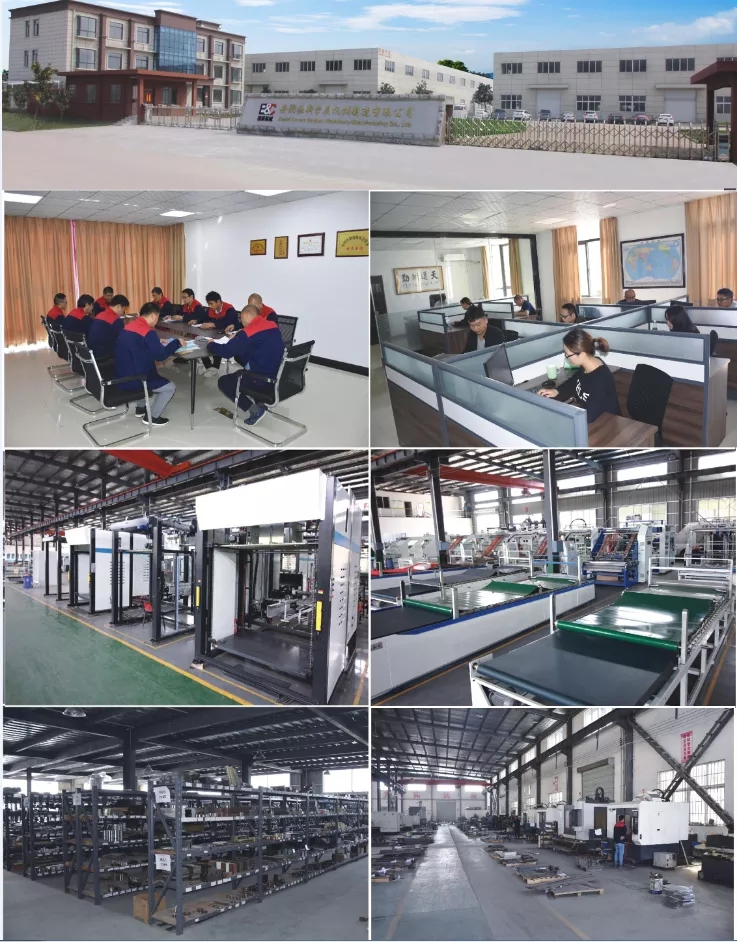

Our factory is located in Shenzhen city, which is about 1.5 hours by train from Shanghai. You are warmly welcome to visit our factory!

3. What is your warranty?
One to Three years.

4. What is the Lead Time?
Usually 20-30 days, and we will try our best to meet your demands.

5. Is there any options, please?
Yes, we provide Nordson Nozzle PUR Application System: Nordson PUR melter (MiniPUR Plus) + Nordson PUR Automatic Gun (SB60-Bod), but not for free.

6. What about the Installation and after-sales technician support?
Our engineer can help with the installation and provide the necessary training. The buyer should take the round airplane tickets and service charge and the local accommodation cost. If you have any problems or questions, we will be at your disposal 7x24 hours.
