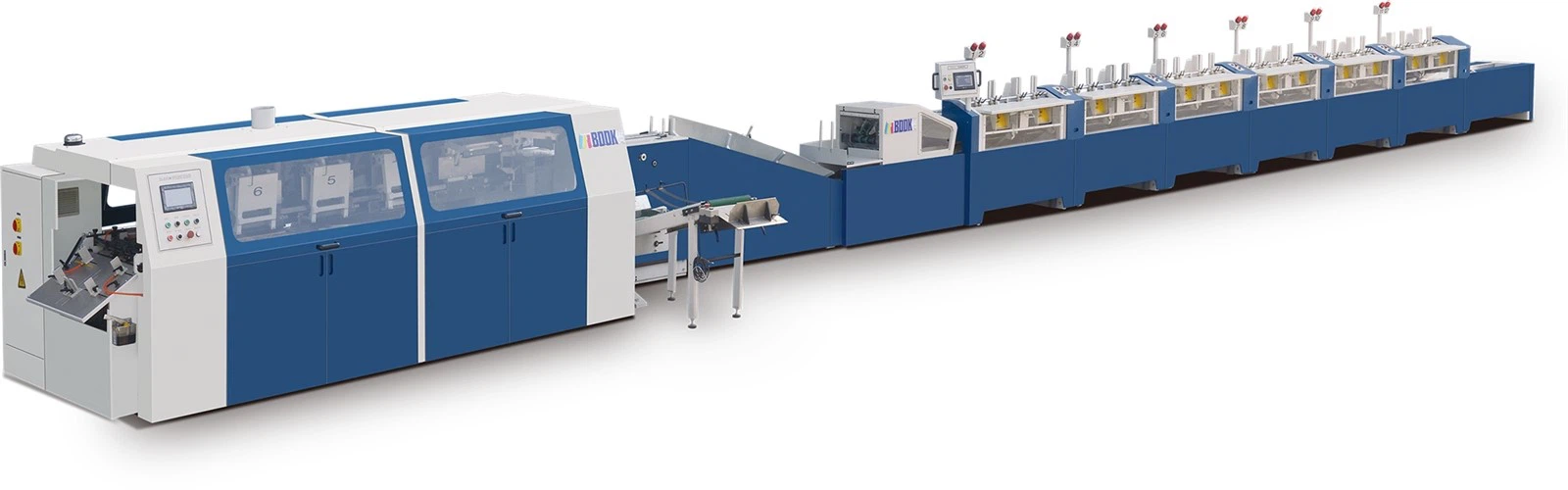

ZXJD370 Semi Automatic Perfect Binding Assembly Machine



Semi-Automatic Perfect Binding Assembly Machine



Semi-Automatic Perfect Binding Assembly Machine

The ZXJD370 Perfect Binding Line operates at a speed of 3600 books per hour and includes 12 gathering stations and 9 clamps. It is equipped with a manual feeding station, gathering unit eliminating device, turnover conveyor, book collecting working table, milling spine, cutting grooves device, and glue pot. The binding and gathering parts are capable of independent operation. With a user-friendly interface, the machine ensures ease of operation. Optional components such as a turnover unit, in-line signature collecting device, stacker, and business glue spot are also available.



Technical General Features



1) Semi-automatic adjustment for product thickness across all main functions.

2) Infeed and delivery channels are adjustable using semi-motor controls.

3) The linefeed table can be adjusted in height, accompanied by a jogging station.

4) Spine preparation includes a combined dust milling knife with a maximum milling depth of 5mm.

5) Waste paper and dust are absorbed by an air-suction fan.

6) Features an integrated vacuum automatic rotary cover feeder powered by an air pump.

7) Scoring station is adjustable via semi-motor control with 4 scores.

8) The cover register can be adjusted within a range of +/- 5 mm.

9) Spine alignment and clamping stations are independently controlled by CAM mechanisms.

10) Offers cross-stacking delivery functionality.

11) The gathering machine can operate independently.

12) Interactive format change, job management, and diagnostic features are accessible via the Man-Machine Interface.

13) Interface for compressed air supply.

14) Includes a hand cordless jogger.

15) Milling and roughening station equipped with a quick lowering device and semi-automatic lifting adjustment.

16) Features a hand-feeding station.

17) Independent glue spine and side glue station, with mechanical control over film length and a separate preheated glue pan.

18) Equipped with a fume exhaust system and other accessories required for standalone operation such as a transformer and compressor.







1. Gathering Machine:



Main Technical Features

- Anti-missing page and double sheet control system
- Synchronized start and stop functions
- 1 cover feeding station
- Cover feed with page missing control system
- Extension rail for manual feeding
- Full rotation, with the option for half (1/2) rotation by changing transmission



Gathering stations：	12
Gathering Size：	Max: 470*320mm; Min: 120*100mm
Spine Thickness:	3-50 mm
Paper Thickness:	40-200 GSM (single sheet 100 GSM) or above
Mechanical speed：	( in line with the binder) Max 5000 cycles/ hour
Power requirement(12 pockets/stations)：	3 phase,380V ,50Hz, 9.0Kw
Net weight(12 pockets)：	3500kg
Dimensions(12 pockets)：	15000mm×1200mm×1300mm
Weight of each collating group：	700Kg
Length of each collating group：	2140mm



2. Perfect Binder:



Main Technical Features

- Book Block Feeding Unit: Facilitates book block infeed via a dedicated channel.

- Perfect Binder: Includes one milling device, one notching device, one spine glue pot with two gluing wheels, and a single nipping system for precise binding.

- Stream Cover Feeding System: Enables continuous cover feeding, significantly enhancing speed compared to single-sheet feeding.

- Reversing Conveyor: Automatically positions finished books from an erect to a laid-down position for ease of handling.

- EVA Gluing Device: Ensures effective adhesive application for secure binding.

- Efficient Cover Feeding and Nipping Station: Enhances workflow with smooth cover handling.

- Separate Side Gluing Station: Equipped with a tank and gluing discs for precise side gluing.

- Continuous Clamp Flow: Ensures a steady feed-in process with a "No Book, No Cover" system to maintain efficiency.

- Specialized Milling Cutter: Removes paper in "strips" with a dust collection system for clean operations.

- Four-Line Scoring/Crissing: Enhances fold quality for professional-looking results.

- Cover Pressing Station: Ensures even pressure application for consistent binding.

- Adhesive Spine and Side Gluing Unit: Provides comprehensive gluing options for durable binding.

- Glue Vapor Extraction: Maintains a clean working environment with effective vapor extraction.

- Vertical Stacker with Jam Detector: Enables vertical stacking of finished books with a built-in jam detection system for uninterrupted operation.

- Control System: Utilizes PLC with precise speed synchronization for efficient performance.



NO. of clamps：	9
Spine Length：	120*370 mm
Book Width:	100-285mm
Spine thickness(c)：	2-40mm
Open cover length：	120-370mm
Open cover width:	205-620mm
Mechanical speed：	3600 cycle/hour
The opening width of clamps:	Constant force mechanism, book folder opening without adjustment 0-100mm
Book hang-out	8 - 15mm
Power requirement：	380V , 50HZ ,15kw
Net weight：	6000Kg
Dimensions：	9500×2000×2200mm
Compressor:	9CFM, 8bar (dry air)



4. Stacking Machine

Mechanical speed – 8000pcs/h

Stacking size - Max. 450mm×300 (mm); Min. 150mm×90 (mm)

Max. Stacking height - ≤120mm



5. Three Knife Trimmer：

Mechanical speed - 15-25 times/min.

Max. Untrimmed size - 400mm×320mm

Finished size - Max 390mm×300mm, Min. 150mm×90mm

Max cutting height - 70mm

Min cutting height - 3mm

Trimmer Jam Inspection:

 In-feed Guide: Ensures accurate top-bottom length setup before trimming to enhance precision.

Servo Motor Drive: Facilitates continuous cutting without stopping the door cutter size, enabling convenient operation and improved efficiency.



Max. book size:	Untrimmed 400 x 320mm; Trimmed:390 x300 mm
Min. book size:	Untrimmed 160 x 100mm; Trimmed:150 x90 mm
Maximum Pile Height:	70 mm
Mechanical speed：	15~25times per min
Compressor Air：	8 CFM, 8 Bar/Dry Air type
Power Supply：	3 phase, 380V, 50Hz,6.1Kw
Control System：	PLC
Dimensions:	3600×2430×1750mm
Net weight:	4300KGS
