Digital Inkjet Drop-against-demand Label Spot Varnishing Machine

Digital Inkjet Drop-against-demand Label Spot Varnishing Machine

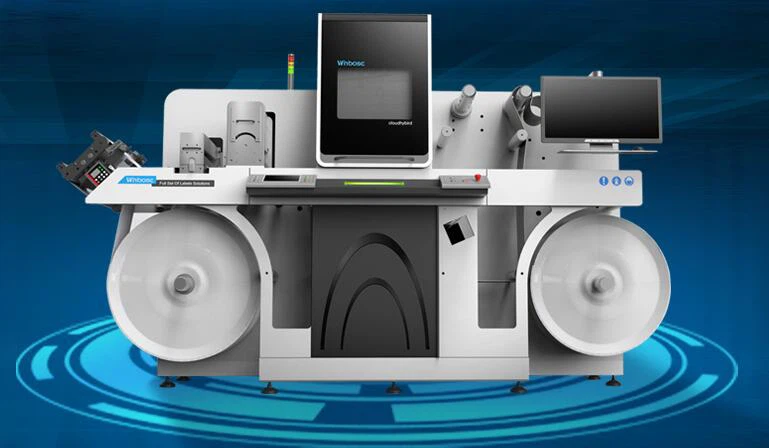

This Ecoospark is a digital roll-to-roll label varnishing and foil stamping machine. It can make vanishing coating in different patterm in one time and can make high-relief foil stamping in one pass, in a drop-against-demand way. There are many options of format and flexo varnishing and laminating as well.

Send Inquiry

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

Brief Introduction

EcooSpark is an industry pioneer product released in 2018, the first such machine dedicated for label embellishment by digital. It is now the 5th generation and very matured product. This machine digitally does UV spot varnishing, foil stamping, 3D embossing, braille printing and etc. variable data by digital. no need for plates. You know how important embellishment effects are for labels and digital machine is revolutionizing the way.

√ Digital spot varnishing

√ Digital foil stamping

√ 3D shining

√ Digital embossing

Technical parameter

Model		Ecoospark 330		Ecoospark 288
Printing Technology	UV Piezo DoD(drop on demand)-inkjet
Resolution	360360 dpi, up to 1440360 dpi
Printing speed	10m/min - 60m/min(depend on polymer layer thickness)
Variable Image system	PDF, optimized PDF, Optional barcode system
Supported image standards	PDF,PDF/VT,TIFF, JPEG, BMP & other data base files
Substrates	Offset, Digital, Plastics, Laminated and coated substrates
Printing image width	330mm * 10 m (Length) 288mm*10m (length)
Polymer	WB-DS-Clear Polymer
Polymer layer thickness	From 10 up to 200 microns
Ink curing	Inter UV-LED Pre-curing/Full curing by UV-LED
Unwinder diameter	Max. 700mm, Core 76mm
Rewinder diameter	Max. 700mm, Core 76mm
Substrates thickness	30-400 micro
Substrates width	Max 330mm Max. 288mm
Press with Foil station	Machine dimensions (LxHxW) 3500mmx1900mmx1800mm
Operating environment	Temperature: 15℃-30℃, Humidity: 40%-80% relative humidity
Electrical requirements	Voltage: 3x380, ±5% 3 phases +G+N ; Frequency: 50/60 Hz Current: Avg. 25 Amps
Weight	3000kg		2700 kg

Products Application and function

Digital spot varnishing

It makes differen patterms of varnishing effect by one pass.

Different varnish thickess, patterm, gauges.

Digital foil stamping

Since the foil is sticked by the varnish. The varnish variable thickness makes the foil in differnet gauges by one pass.

3D embossing

The max. thickness by one pass with special varnish and our xaar printing head could be 250 micro.

Braille printing

For some pharmaceutical printing and food special printing requirement, the machine can handle variable braille printing.

Machine highlight

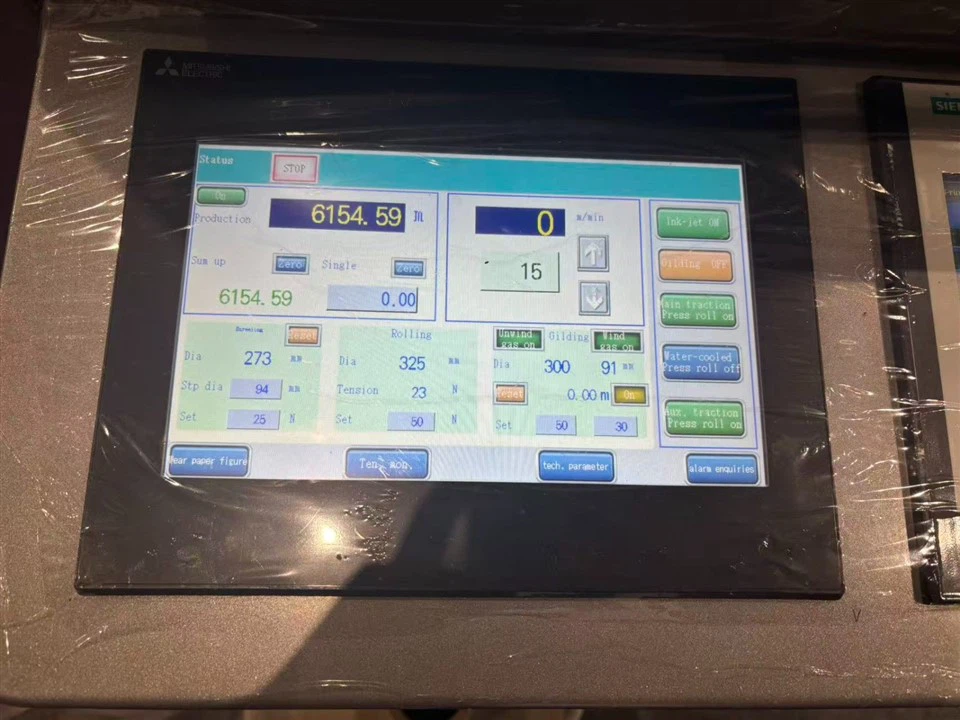

Ecoospark machine now have many users over the world. The outstanding merits including its robust and stable running (Mitsubishi electric control server and Siemens electric server), Global inkjet solution ( GIS) software, auto-wash of printing heads, and precuring patent.
