Digital Varnishing And Cold Foiling Label Finishing Equipment EcooSpark
EcooSpark is the Digital Label Varnish UV Printing and Cold Foiling machine, with the print width from 280mm to 450mm. It is the perfect finishing machine with HP Indigo,Screen L350,KM Accurio, Xeikon ,Durst digital printing equipment.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Products Description
Roll Label Digital Finishing Embellishment Machine Varnishing and Foiling
EcooSpark is the Digital Label Varnish UV Printing and Cold Foiling machine, with the print width from 280mm to 450mm. It is the perfect finishing machine with HP Indigo,Screen L350,KM Accurio, Xeikon ,Durst digital printing equipment.
As the OEM factory in China for about 10years ,EcooGraphix four core segments: 1) prepress segment all Ctp machines and plates, 2) label printing segment:digital label printing, label enhancement,label finishing , 3) packaging segment: flexo packaging, paper packaging,4) commercial segment.

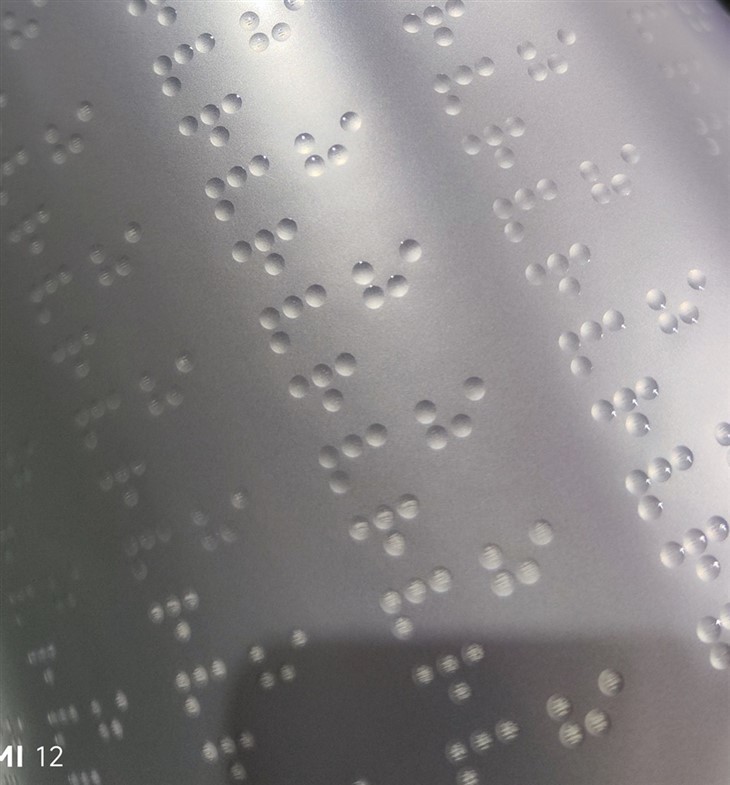

This machine can do UV spot varnishing, cold foil stamping, braille printing ,3D embossing and etcs, by KM print head and digital LED UV Inkjet technology. There are hundreds of machine installations worldwide.
Applications
Wine Labels, Cosmetic Labels, Luxury labels ,Washi Tape ,Stickers ,Medical Labels ,Pouch Packages ,Braille Marks and so on.
|
EcooGraphix EcooSpark DS288 Digital Label Foil Stamping and Spot Varnishing Machine |
|
|
Model DigiSpark |
|
|
Printing Technology |
UV Piezo DoD-inkjet |
|
Resolution |
up to 1440*360 dpi |
|
Printing speed |
10m/min - 60m/min(depend on polymer layer thickness) |
|
Variable Image system |
PDF, optimized PDF, Optional barcode system |
|
Supported image standards |
PDF,PDF/VT,TIFF, JPEG, BMP & other data base files |
|
Substrates |
Offset, Digital, Plastics, Laminated and coated substrates |
|
Printing image width |
288mm (extendable to 430 mm) |
|
Polymer |
WB-DS-Clear Polymer |
|
Polymer layer thickness |
From 10 up to 180 microns |
|
Ink curing |
Inter UV-LED Pre-curing/Full curing by UV-LED |
|
Unwinder diameter |
Max. 700mm, Core 76mm |
|
Rewinder diameter |
Max. 700mm, Core 76mm |
|
Substrates thickness |
30-400 micro |
|
Substrates width |
330mm |
|
Press with Foil station dimensions (LxHxW) |
3500mmx1900mmx1800mm |
|
Operating environment |
Temperature: 15℃-30℃, Humidity: 40%-80% relative humidity |
|
Electrical requirements |
Voltage: 3x380, ±5% 3 phases +G+N Frequency: 50/60 Hz Current: Avg. 25 Amps in Production |
|
Weight |
2800kg |
Features
1)Full Sets of Mitsubishi servers;
2)HeFeng Corona Treatment;
3)Web guide and Monitoring System: E+L;
4) Full Led-UV curing system;
5) Printing Software: GIS UK;
6)Auto Cleaning System;
7) KM 1024i print head;
8) Multiple sensors for tention control.
EcooSpark unique strengths:
* Unlimited image variety, high resolution up to 1440X360 dpi;
*lTop UV inkjet drop on head with printing width 288mm and extendable to 430mm;
*lSpeed up to 50m/min; varnish printing thickness up to 180um~350um;
*lReliable and cost effective parts and UV varnish supply ;
*lProven market success in Europe, North and South America, Asia and other countries,satisfaction guaranteed with professional service;
* CE certificate.
Customizable
Company Profile
EcooGraphix is a leading global supplier and OEM factory of digital printing and packaging equipment and supplies. It began in 2010, developing and manufacturing CTP machines and printing plates.
- Our team has 25 years of experience
- EcooSetter CTP machines and Ecoo printing plates have now become globally renowned brands
- Currently, there are over 500 printers worldwide running EcooGraphix CTP and printing plates daily.
- The digital label printing is a new and fast growth .
- Approximately 45 international distributors worldwide collaborate with EcooGraphix.
Production Equipment
