30PPH Offline Newspaper Printing Thermal CTP

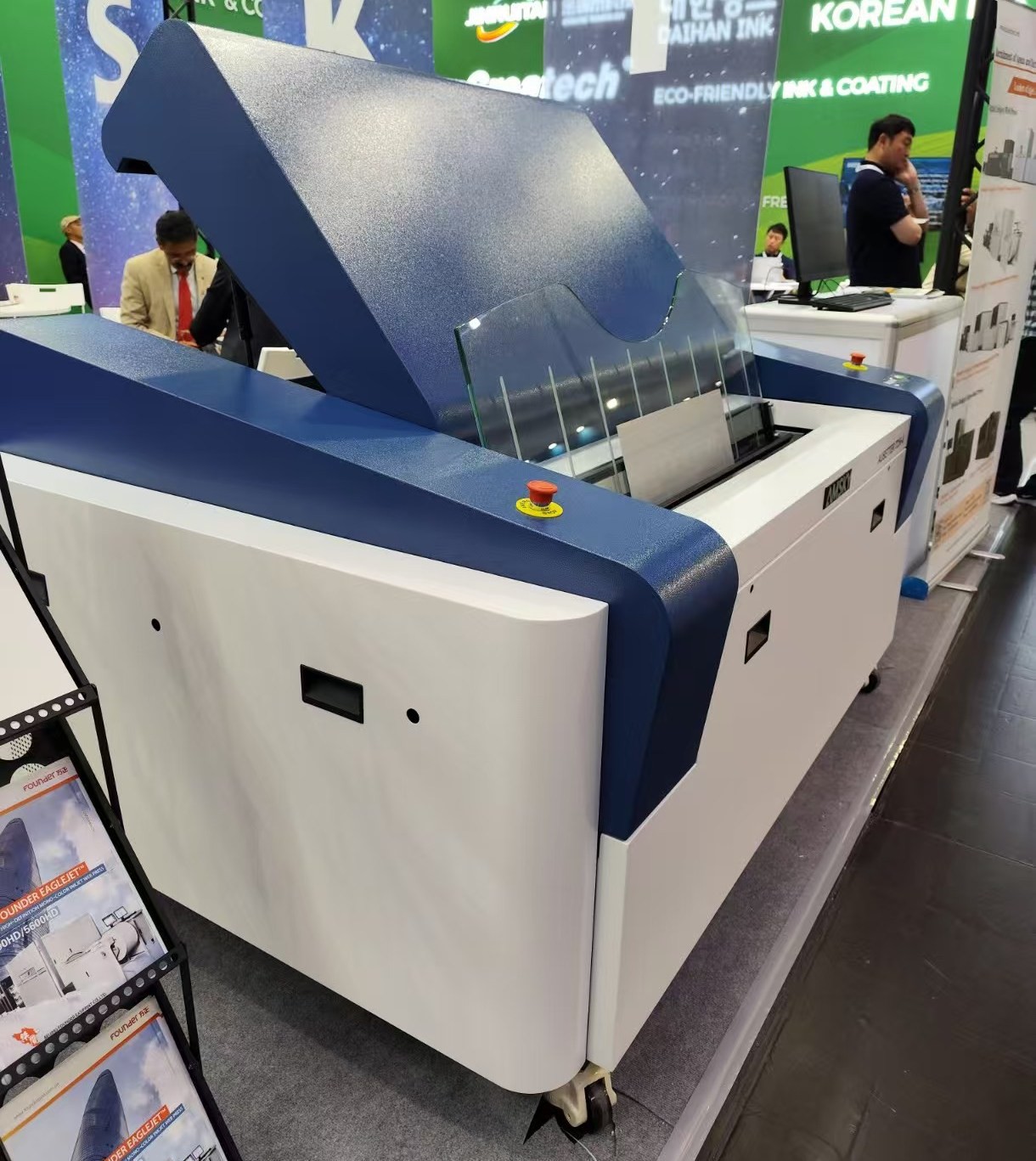

EcooGraphix Online Thermal CTP Machine

EcooSetter T 800FX

Application

   EcooSetter T800FX Thermal CTP is for A1 or B1 paper size , Maximum size of plate: 1,163×940mm,with the output speed up to 35 plates per hour(1030x800).



   With over 600 units CTP equipment and plate customers across over 70 countries in the world, CTP machines and plates remain EcooGraphix core product family. We provide top notch quality, most complete family and 7X24 hours non-stop worldwide service. Our customers and distributing partners are among most prestigous names. In ths same time, we have industry most complete quality plate family, thermal, ctcp, violet, processless thermal, processless ctcp, Flexo digital plates 1.14, 1.7, 2.84mm and etc.



  Above all, we uniquely provide our CTP machine customers with CTP lifetime warranty program in conjunction with our plates. This program continues receiving huge acceptance in the market.









EcooSetter T-800 A Series Online Thermal CTP Machine

Model: EcooSetter T-800A   F/S/E

Laser wavelength: 830nm , Max Plate Size: 1,163×940mm



ECOOSETTER T-800 A Series Thermal CTP Specifications
Model	T-800FA	T-800SA	T-800EA
Exposing Method	External Drum
Imaging Diodes	64-channel	48-channel	32-channel
	Discrete 830nm laser diode
Throughput	28plates/hour	22plates/hour	16plates/hour
	1030mm x 800mm, 2400dpi
Plate Sizes	Max. 1,163×940mm, Min. 300×400mm
Media Type	830nm Thermal CTP Plate, Non Chemical Processless Plate
Plate Thickness	0.14mm to 0.30mm
Resolution	2400dpi(1200dpi optional)
Repeatability	±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23℃ and humidity of 60%)
Interface	USB 2.0
Plate Loading	Automatic
Net Weight	1200KGS
Machine Size	2,127×1,610×1,058 mm( L×W×H )
Power Supply	single phase:220AC,+ 6%,- 10%, power Consumption:4KW
Operation Environment	recommended:21-25℃, Max.18-26℃, humidity:40-70%



Model: EcooSetter T-800(F/S/E)XA

256CH Laser Valve , Speed: 55/45/35 PPH

ECOOSETTER T-800 XA Series Thermal CTP Specifications
Model	T-800FXA	T-800SXA	T-800EXA
Exposing Method	External Drum
Imaging Laser Head	256Channels Laser Valve
Throughput Speed	55plates/hour	45plates/hour	35plates/hour
	1030mm x 800mm, 2400dpi
Plate Sizes	Max. 1,163×940mm, Min. 300×400mm
Media Type	830nm Thermal CTP Plate, Non Chemical Processless Plate
Plate Thickness	0.14mm to 0.30mm
Resolution	2400dpi(2540dpi, 1200dpi optional)
Repeatability	±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23℃ and humidity of 60%)
Interface	USB 2.0
Plate Loading	Automatic
Net Weight	1200KGS
Machine Size	2,127×1,610×1,058 mm( L×W×H )
Power Supply	single phase:220AC,+ 6%,- 10%, power Consumption:4KW
Operation  Environment	recommended:21-25℃, Max.18-26℃, humidity:40-70%













Buyer need to prepare before installation:



1. Customer should prepare tools:

Lift truck and driver: to unload the machine, truck fork should be 1.5Ton or above capacity, 1.2m or longer arm;



2. CTP working environment:

Temperature: 15℃-30℃ (an air-conditioner is recommended)

Humidity: RH10%-70%, Non-condensing

Atmosphere: No smoke, No corrosive gases, Ash<0.1mg/M3.

Lighting: Natural illumination, no direct sunlight

Floor: The floor should bear the pressure of 500kg/m2. Anti-static floor or tile floor.

Ventilation: natural ventilation

Thermometer and hygrometer (pointer type or digital type) should be kept in the center of the room.



3. Power supply:

CTP Ecoosetter Series: single phase, independently grounded, less than 3Ω; 50/60Hz, 4KVA.

An online uninterrupted power supply(UPS) unit is required, and the battery should be able to sustain at least 5 minute alone.



4. Other equipment customer should prepare:

Computer: one computer is required to control the CTP. Configuration: I3 or above, 500G or above, Windows 7/8/10, English operation system (US);

Air: separated air-compressor or central air. ≥0.8Mpa, ≥175L/min. If separated air-compressor, the air tank should be ≥30L.

Processor

Plate and chemicals

Plate dot measurement tools (Replate or IC plate)



5. Workflow

RIP: customer should have workflow to generate 1-bit-tiff file. Ecoosetter CTP has program to receive 1-bit-tiff file.



Installation Cases of EcooGraphix T800A Online System
